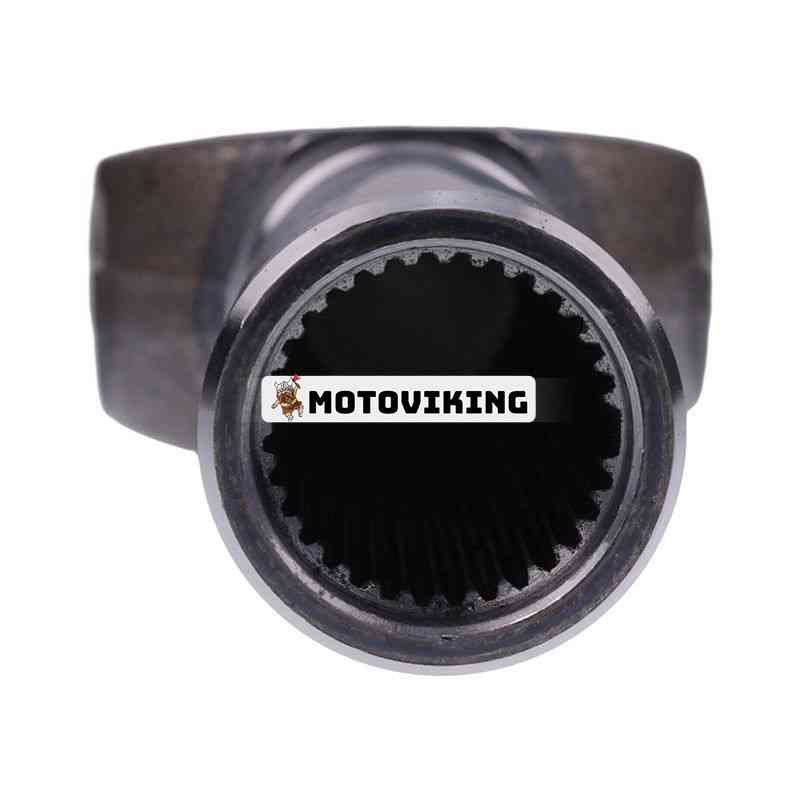

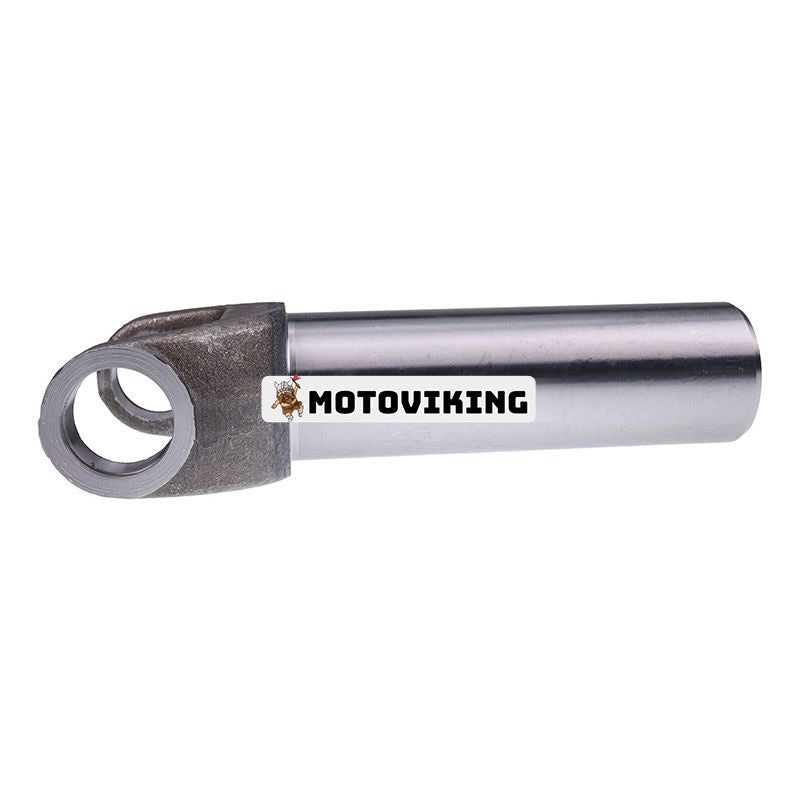

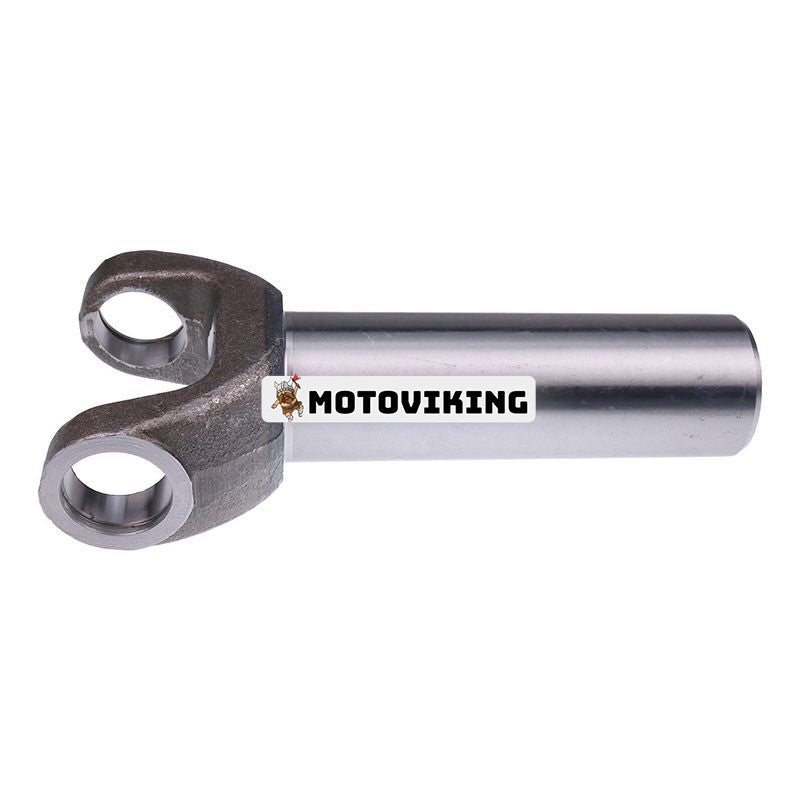

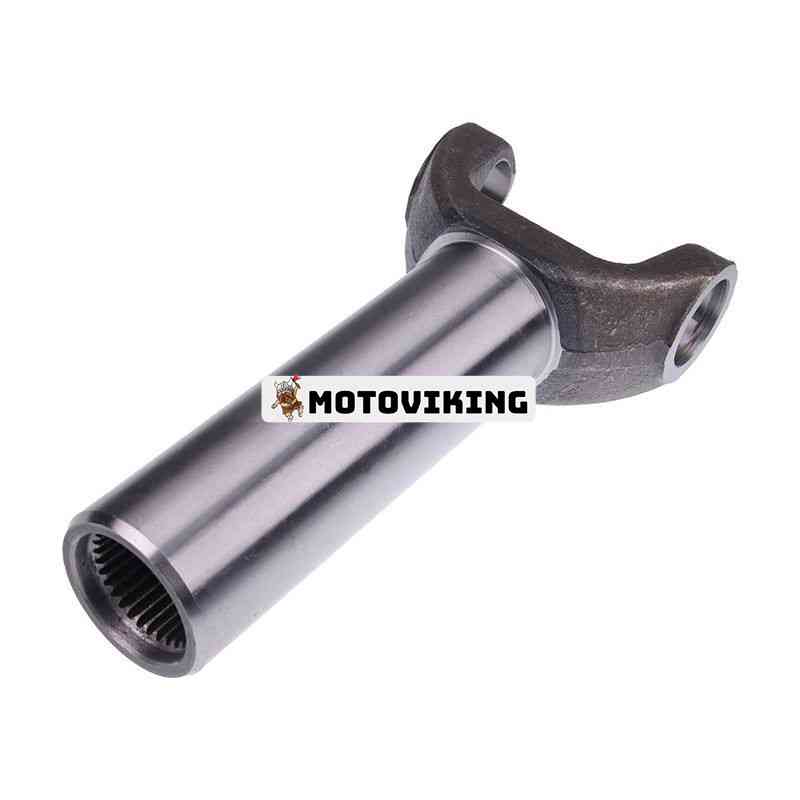

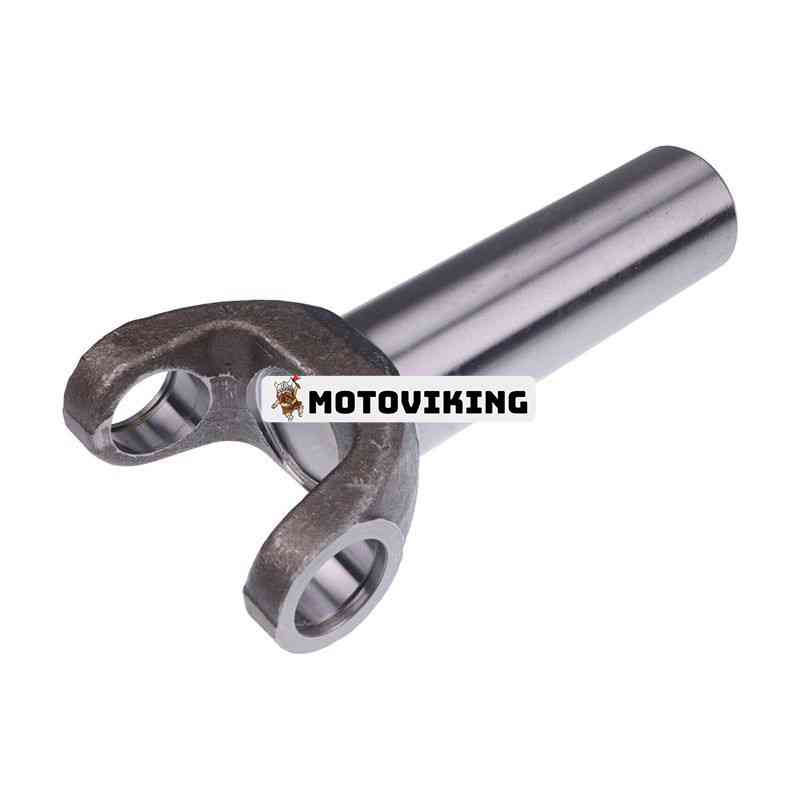

Transmission & Transfer Case Slip Yoke 3-3-5551X for NP 246 261 263 GM TH400 Turbo 400 4l80E 4L85E Muncie M21 M22
Replace part numbers: 88964470, 3-3-5551X, 335551X, 22944357, 40021420
Specification:
Series: 1350 series
Outer yoke dimensions: 3.875 inches
Bearing Cap Diameter: 1.188 inches
To the end of the spline: 7.94 inches
Hub diameter: 1.886 inches
Spline OD (STD): 1.378
Number of Splines: 31/32
Style: SR
Diameter of the countersink: 1.43 inches
Countersink hole depth: 0.22 inches
Application:
Fits the following models:
New Process NP Transfer Case:205, 208, 241, 243, 246, 261, 263
GM gearbox:
TH / Turbo Hydromatic / Turbo 400
4l80E and 4L85E
Muncie M21 and M22
Borg Warner Super T10
Replacement part for NP 246 261 263 GM TH400 Turbo 400 4l80E 4L85E Muncie M21 M22.
Part/Replacement Number: TRANSMISSION, TRANSFER, PART NUMBER, 88964470, 335551X, 22944357, 40021420, SPECIFICATION, 1350 SERIES, DIAMETER, BEARING CAP, HUB DIAMETER, SPLINES, MODELS, PROCESS, HYDROMATIC.
Contact us if you need similar original Case parts or support regarding compatibility.
