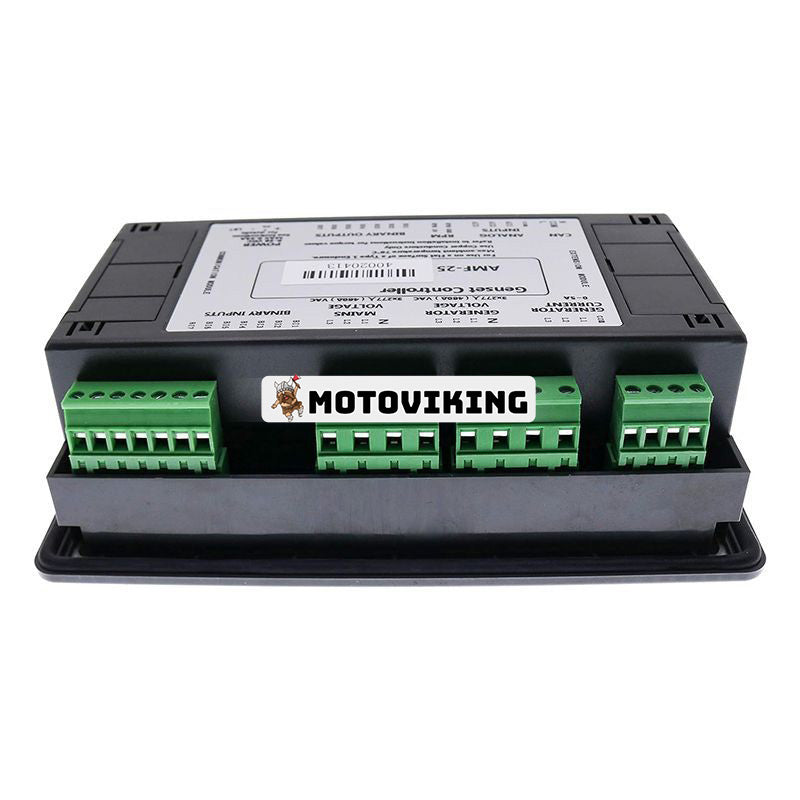

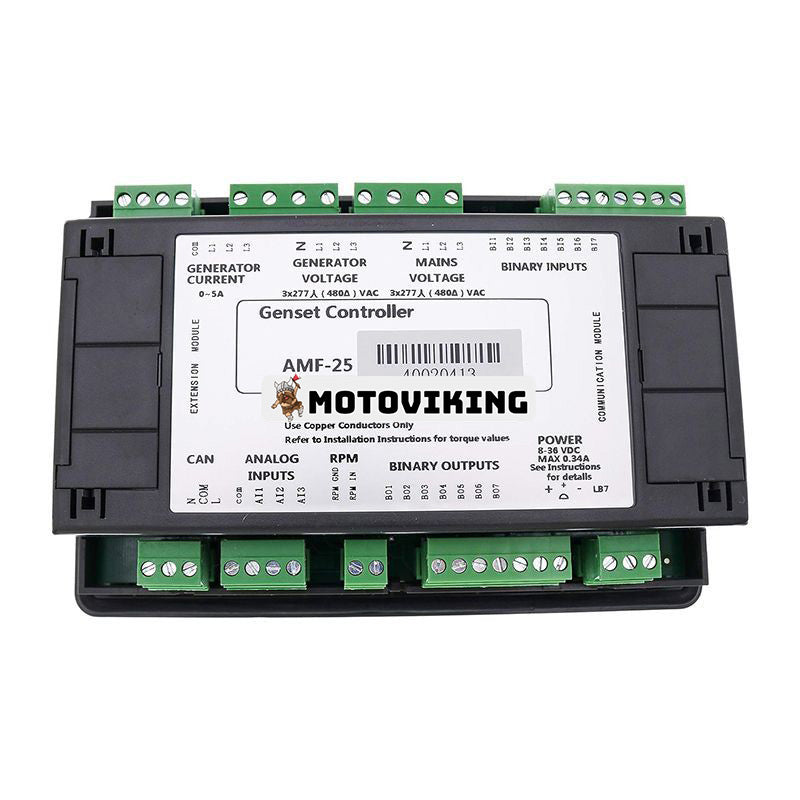

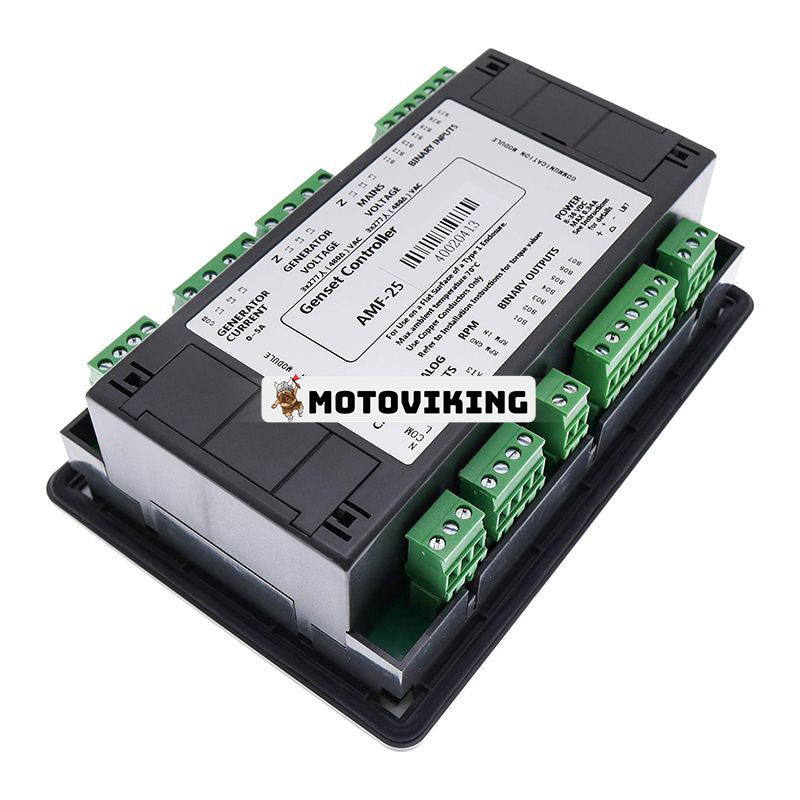

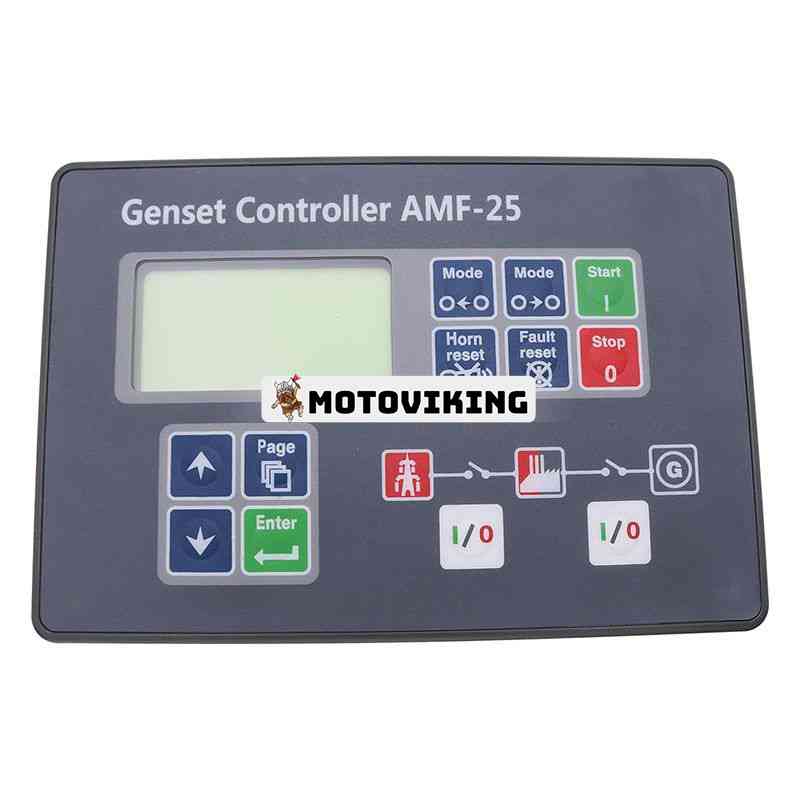

Control unit InteliLite NT AMF25 AMF-25 Control panel for ComAp Gen-Set
Condition: New original
Note: This 100% genuine part is non-returnable and non-exchangeable. Please check the correct part number before purchasing, rather than relying solely on the model.
Replace part number: AMF25, AMF-25
Specification:
6 LED indicators
Support for engines equipped with electronic control unit (J1939 interface)
Automatic or manual start/stop of generator set
Push buttons for easy control, lamp test
Graphic backlit LCD display 128x64 pixels
Parameters adjustable via keyboard or PC
Mains measurements (50/60 Hz): U1-U3, Hz
Generator dimensions (50/60 Hz): U1-U3, I1-I3, Hz, kW, kVAr, kWh
InteliLite NT AMF 25 offers:
Compact generator set control for single generator sets operating in standby or prime power modes
Full gene set monitoring and protection
Outstanding EFI engine support with clear text diagnostic messages via J1939
Detailed event and performance log with time and date
Multiple languages (user-changeable) in the controller, even more in the installation suite
Possibility of plug-in and CAN bus extension modules
WebSupervisor and AirGate support*
Automatic SMS on alarm or event & gen-set control over SMS*
On-line control and monitoring of web pages (embedded web server) via plug & play IB-Lite
Optional GSM/GPRS modem/wireless internet via IL-NT GPRS
Fuel theft protection and monitoring of total fuel consumption
Ground fault current protection*
Alternative switchable configuration
Dual Mutual Stand-by (Dual AMF) Support Supports prime power (MRS) applications
Automatic and manual GCB and MCB control
Magnetic pickup input D+ pre-excitation terminal
True RMS measurement
3-phase power measurement of generator sets and electricity grids including kWh
3 configurable analog inputs
7 binary inputs
7 binary outputs
Plug-in module required
Low temperature version available for operation from -40°C to +70°C
Applications:
Suitable for ComAp Gen-Set
