Male and Female Flat Coupling Kit 6679837 6680018 for Bobcat T140 T180 T190 T200 T300

Male and Female Flat Coupling Kit 6679837 6680018 for Bobcat T140 T180 T190 T200 T300

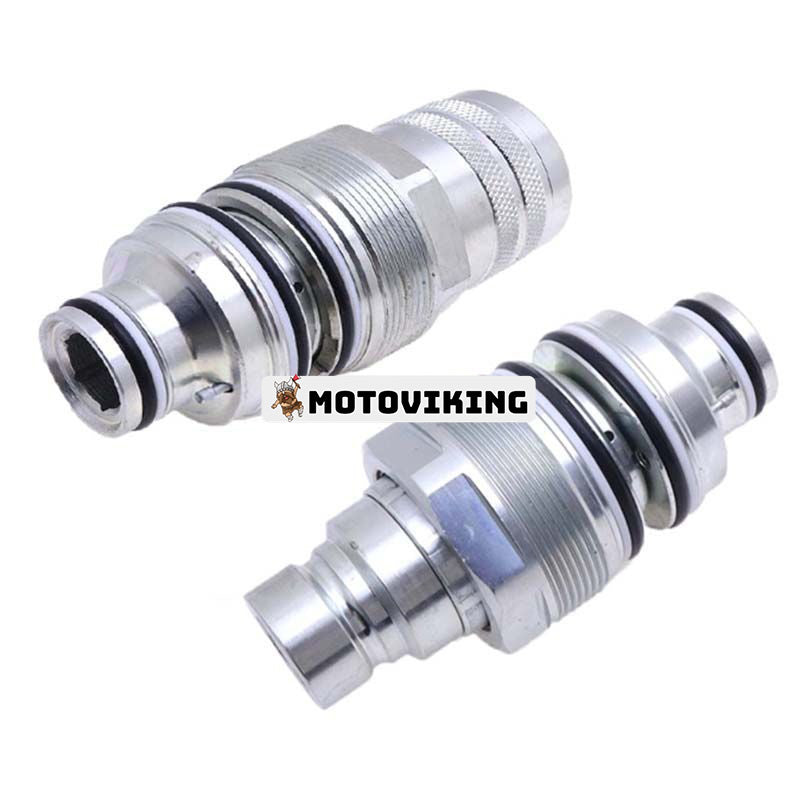

Kit contains:

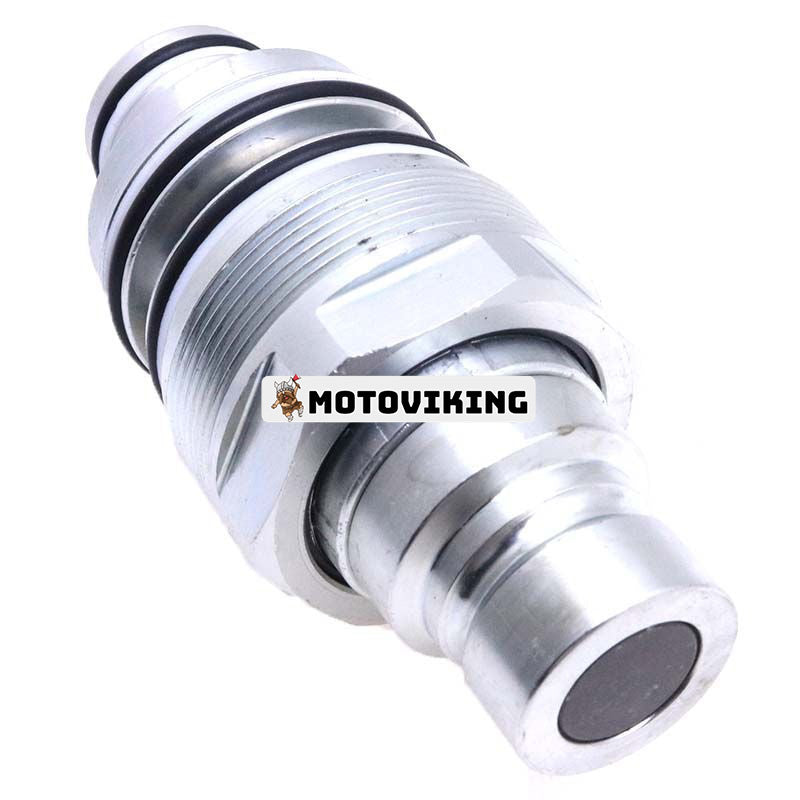

1X Male Flat Face Coupling
1X Female Flat Face Connector
Article number:
Flat Face Coupler:6679837
Female flat face coupling:6680018
Application:
Bobcat loader:
T140, T180, T190, T200, T250, T300, T320, T450, T550, T590, T595, T630, T650, T750, T770, T870
Bobcat excavators: 325, 328
Bobcat telescopic handle: TL35.70, TL360, TL38.70HF, TL470, TL470HF
Bobcat work machines: 5600, 5610
Specification:

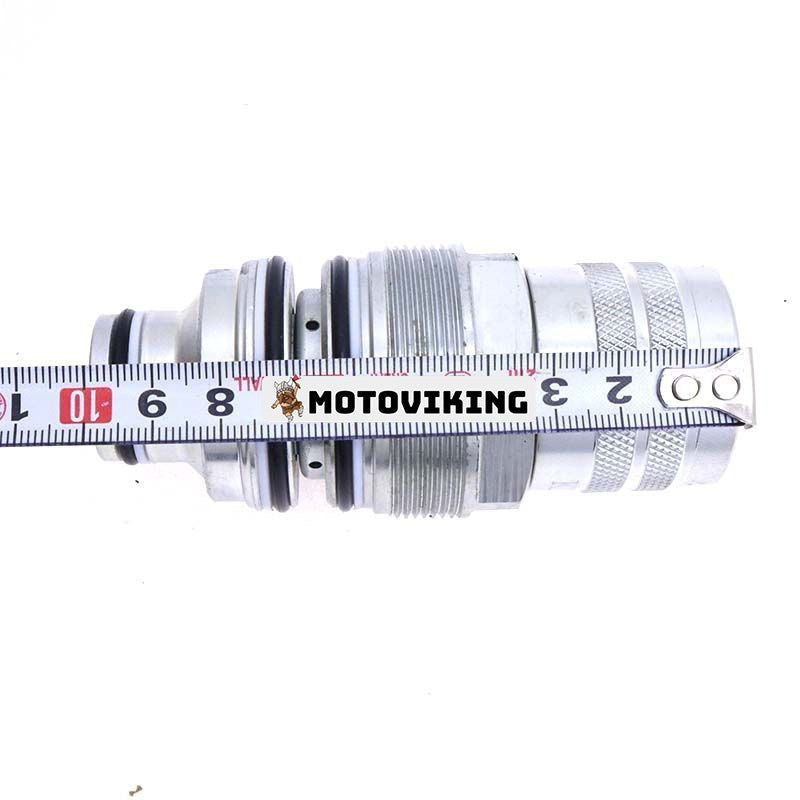

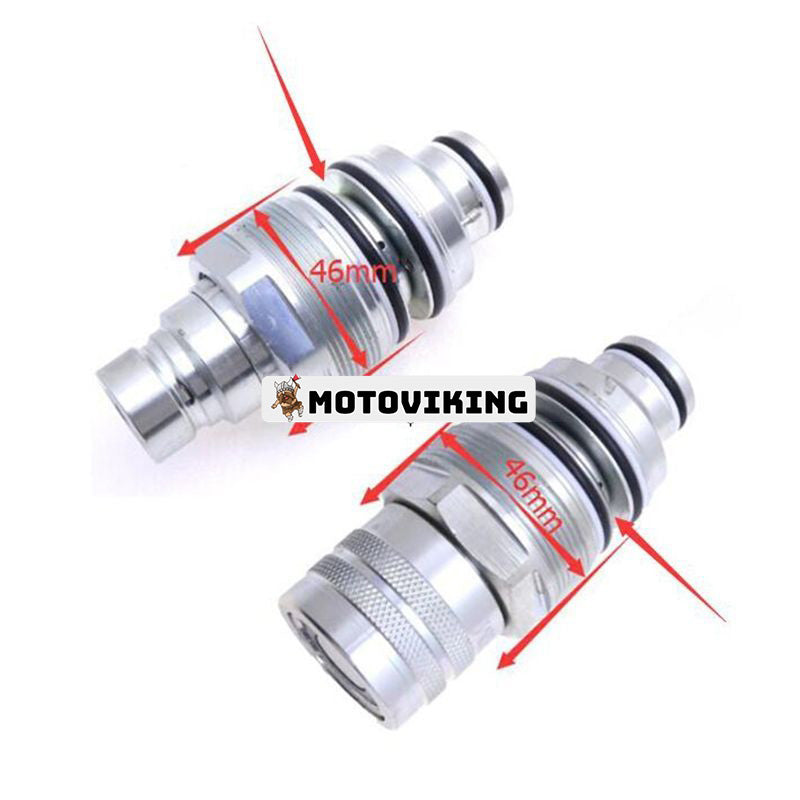

For 4BD4FI manifold block (46 mm thread diameter)
Allows connection under pressure
Compatible with all standard 1/2″ Body ISO 16028 couplings
Flush valve design minimizes fluid loss and air entrapment
5,076 PSI pressure rating
Work:
Female hydraulic coupler and replacement coupler for the 4BD4FI block, allowing for quick attachment and detachment of attachments for Bobcat skid steer loaders.
Features:
No fluid spillage or air entrapment keeps equipment safe and clean Avoid costly fluid spills Internal components designed to maximize fluid flow with minimal pressure change Half inch body size Push to connect Working pressure of 35 MPa High quality carbon steel with zinc-nickel coating ISO 16028 replacement
Buying guide:
The mating ends of the newer couplers are compatible with older style couplers, allowing old and new couplers to be connected to each other. However, an FFI coupler will not work in an FFH block and vice versa. The best way to identify which version of block/coupler is installed is to look for the manufacturer's stamp: earlier blocks and couplers have an FFI or FI, newer ones have an FFH or FH. The stamp is visible on the outside of the sleeve of male couplers. The stamp is also on the side of the block. Blocks that are connected inside the lift arm must be removed to see the stamp.
Note: This fitting does not fit the newer FFH or FH manifold.
