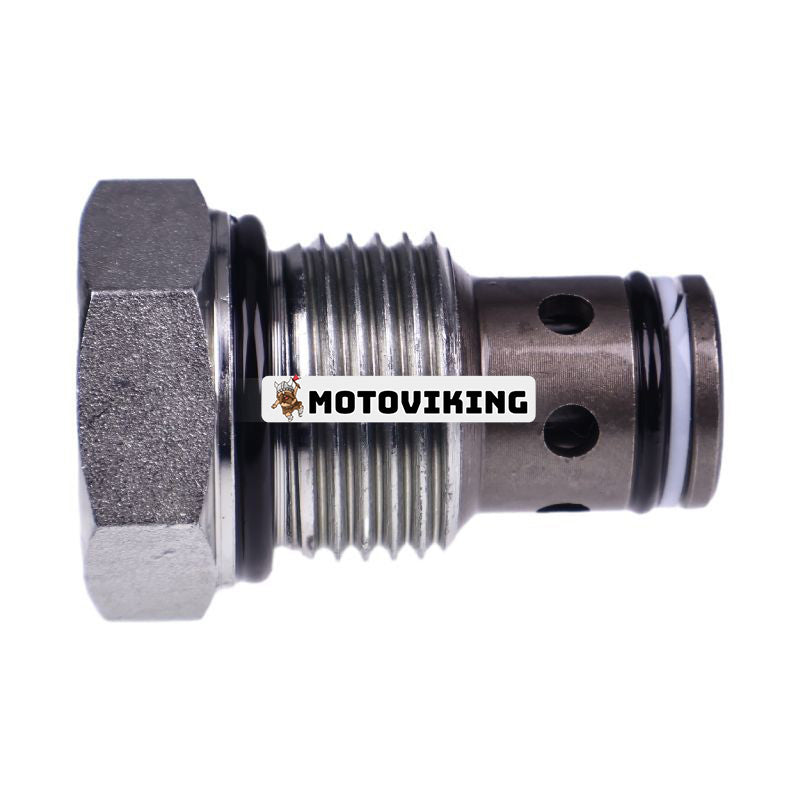

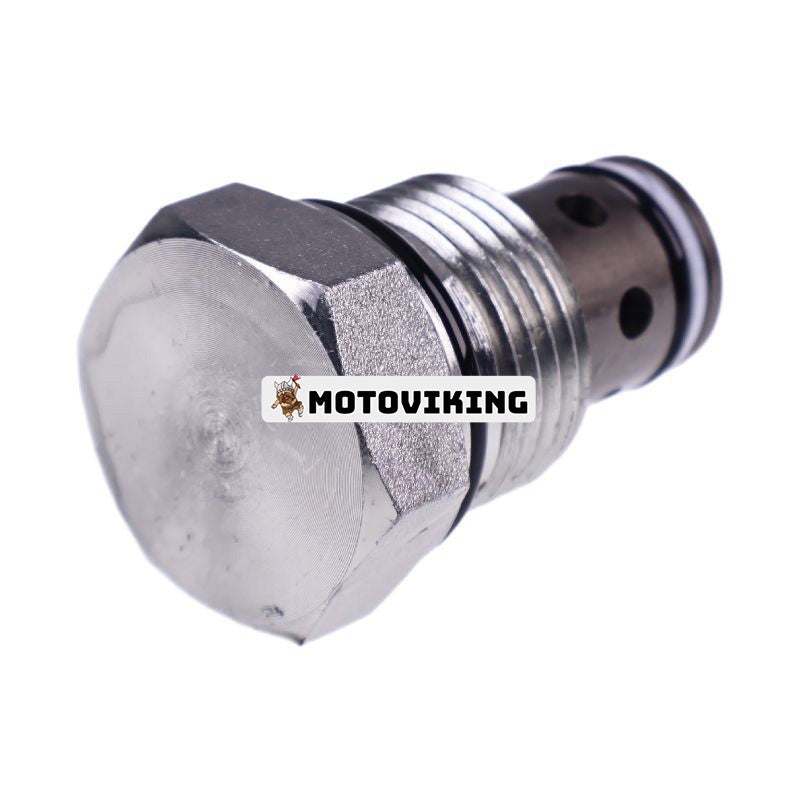

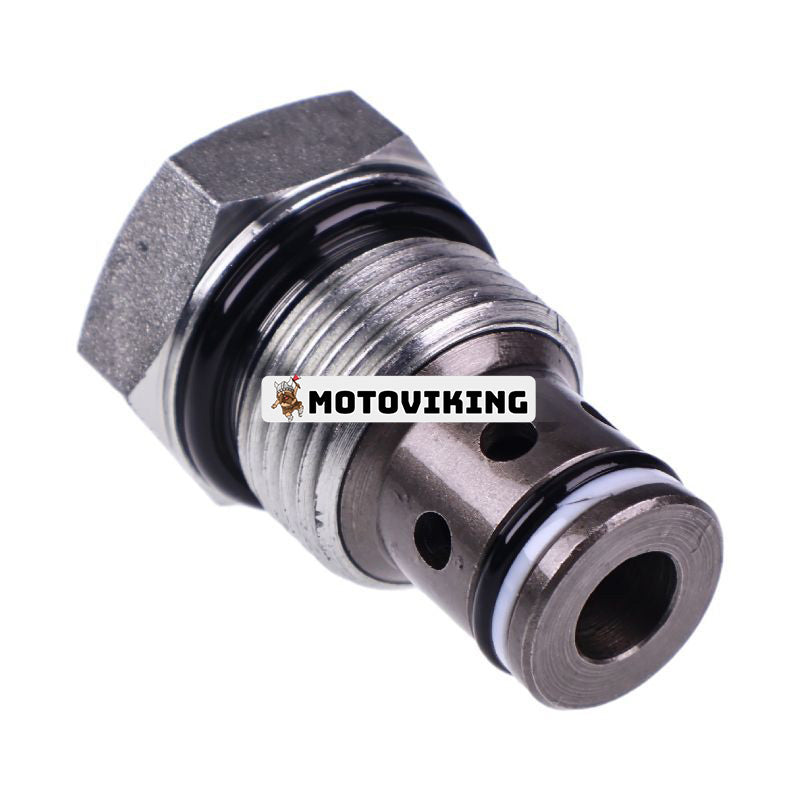

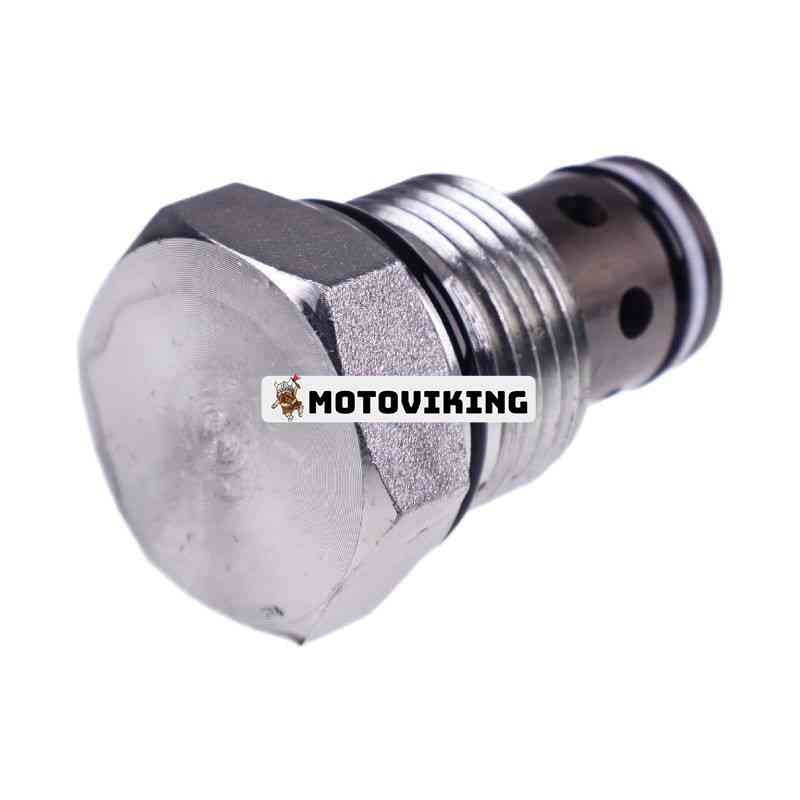

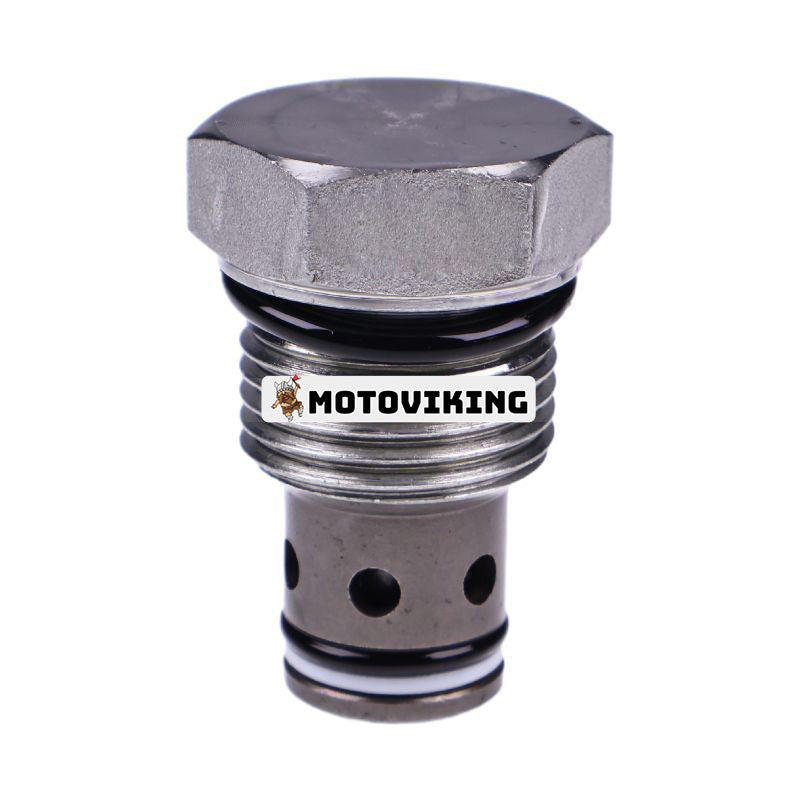

Pilot-operated logic element valve CV10-20-0-N-5 for Hydraforce
Replace part number: CV10-20-0-N-5, CV10200N5
Specification:
Screw-in, cartridge type, hydraulic check valve for use as a blocking or load holding device.
The valve allows flow passage from port 1 to port 2, while normally blocking oil flow in the opposite direction. The cartridge has a fully actuated control that is spring-loaded closed until sufficient pressure is applied at port 1 to open to port 2.
NOTE: 300 PSI high cap spring option available.
20 GPM Max Flow
3500 PSI rated (240 bar)
Fits CV10-20 Cavity
Uses size 10 (5/8" bore) solenoids
Pressure rating: 240 bar (3500 psi)
Safety pressure: 350 bar (5075 psi)
Flow rate: 75.8 lpm (20 gpm)
Maximum internal leakage: 2 drops/min Note: At 240 bar (3500 psi)
Operating fluid temperature:
-40 to 100 °C (-40 to 212 °F) Note: With Buna N seals
-26 to 204 °C (-15 to 400 °F) Note: With fluorocarbon seals
-54 to 107 °C (-65 to 225 °F) Note: With polyurethane seals
-40 to 149 °C (-40 to 300 °F) Note: With HNBR seals
Storage temperature: -40 to 70°C (-40 to 160°F)
Ambient temperature: -40 to 90°C (-40 to 194°F)
Fluids: Mineral-based or synthetic hydraulic fluid with lubricating properties
Fluid viscosity range: 7.4 to 420 cSt
Maximum operating contamination level: 20/18/14 according to ISO 4406
Installation specifications:
Cavity: VC10-2,10-size-2-way cavity
Cartridge Installation Torque: 32.6 to 35.4 Nm (24 to 26 ft-lb)
Maximum allowable torque: 67.8 Nm (50 ft-lb)
Orientation restriction: None
Application:
Fits Hydraforce
