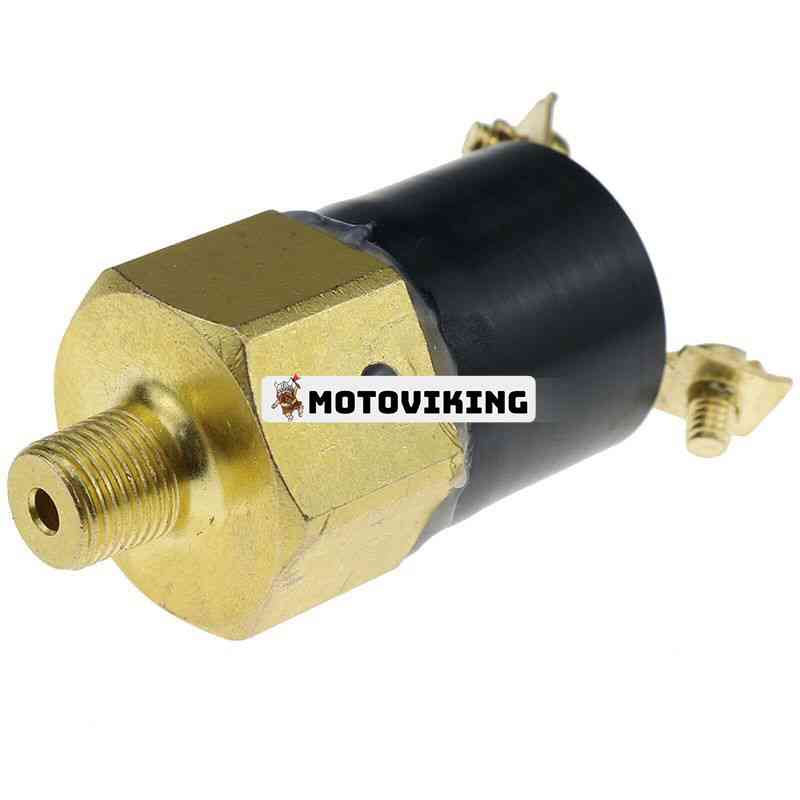

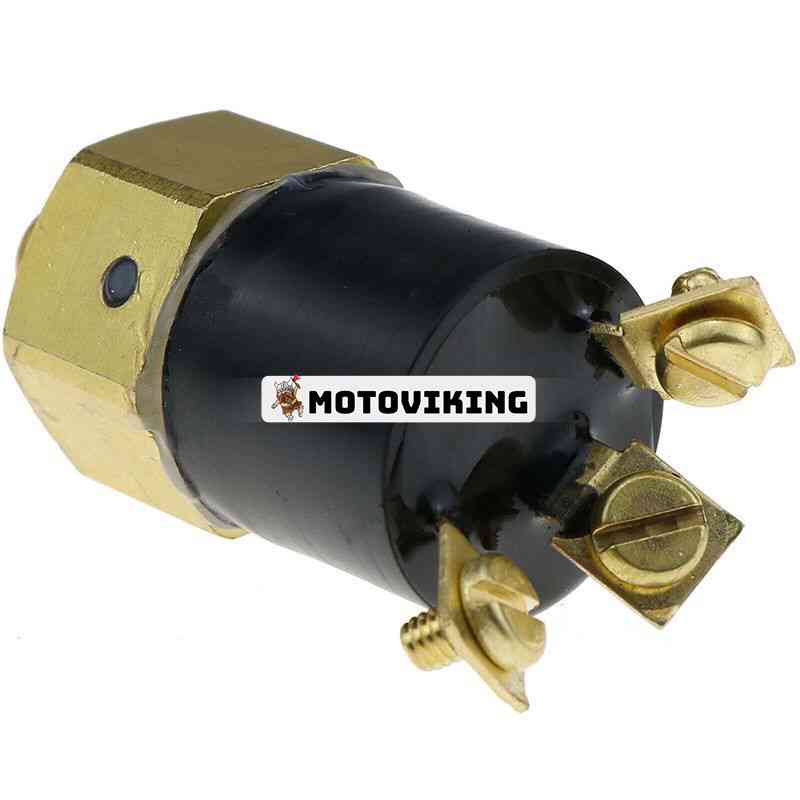

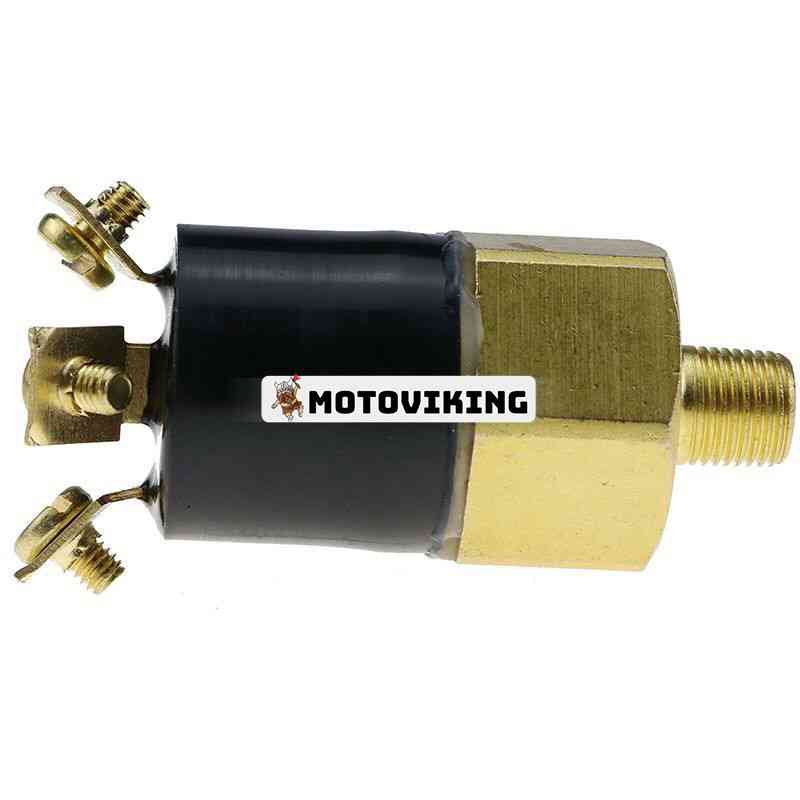

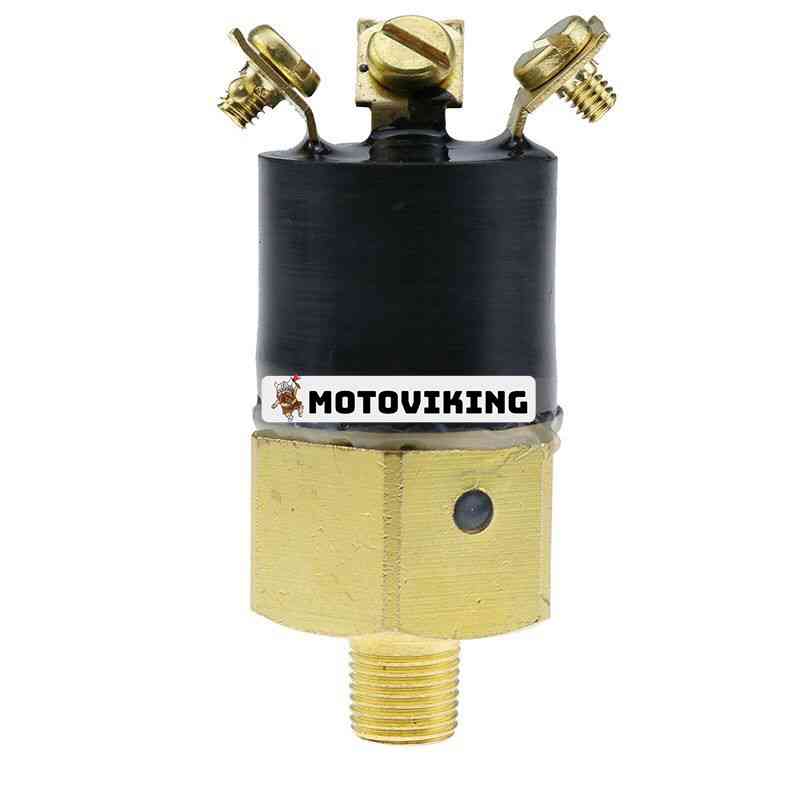

Oil pressure switch SM2C15F SM-2C-15F for Nason

Replace part number: SM-2C-15F, SM2C15F

Specification:

Type: SM

Media connection modifier: Standard (brass)

Media connection: 1/8"-27 NPT male

Circuit: SPDT (Single Pole Double Throw)

Fixed setpoint: 15 PSI

Setting direction: Descending

Electrical Connection: #8-32 Screw Terminal

Diaphragm material: Standard (Buna Nitrile 366y)

Contacts: Standard (5 A @125/250 VAC / 5 A @30 VDC)

Maximum operating pressure: 250 PSI (17 bar)

Cycle life: 1 million

Operating Temperature: -20°F - +220°F

Product description:

Media connection = 1/8" NPT male

Circuit type=SPDT

Fixed setpoint=15 PSI

Set Point Direction=Falling

High-quality snap switch

Factory setting

Economic

Pneumatic and hydraulic applications

NEMA 4, 13

Applications:

Suitable for Nason

Spare part for Nason.

Part/Replacement Number: OIL PRESSURE SWITCH, SM2C15F, SM-2C-15F, PART NUMBER, SPECIFICATION, MEDIA CONNECTION MODIFIER, STANDARD, MEDIA CONNECTION, CIRCUIT FORM, FALLING, ELECTRICAL, CONNECTION, SCREW TERMINAL, DIAPHRAGM MATERIAL, NITRILE, CONTACTS, MAXIMUM, OPERATING PRESSURE, OPERATING TEMPERATURE, PRODUCT DESCRIPTION, DIRECTION, ECONOMIC, PNEUMATIC, HYDRAULIC, APPLICATIONS.

Please contact us if you need help verifying compatibility or finding similar parts.
