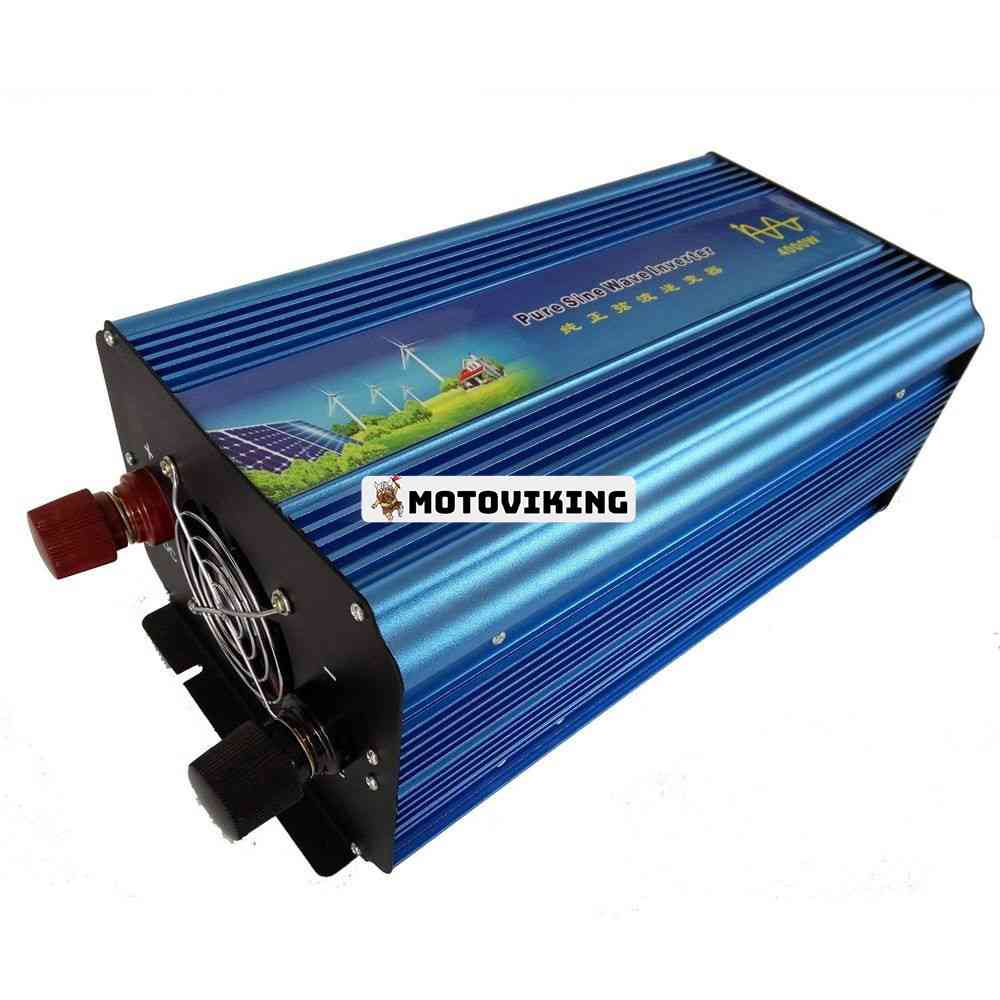

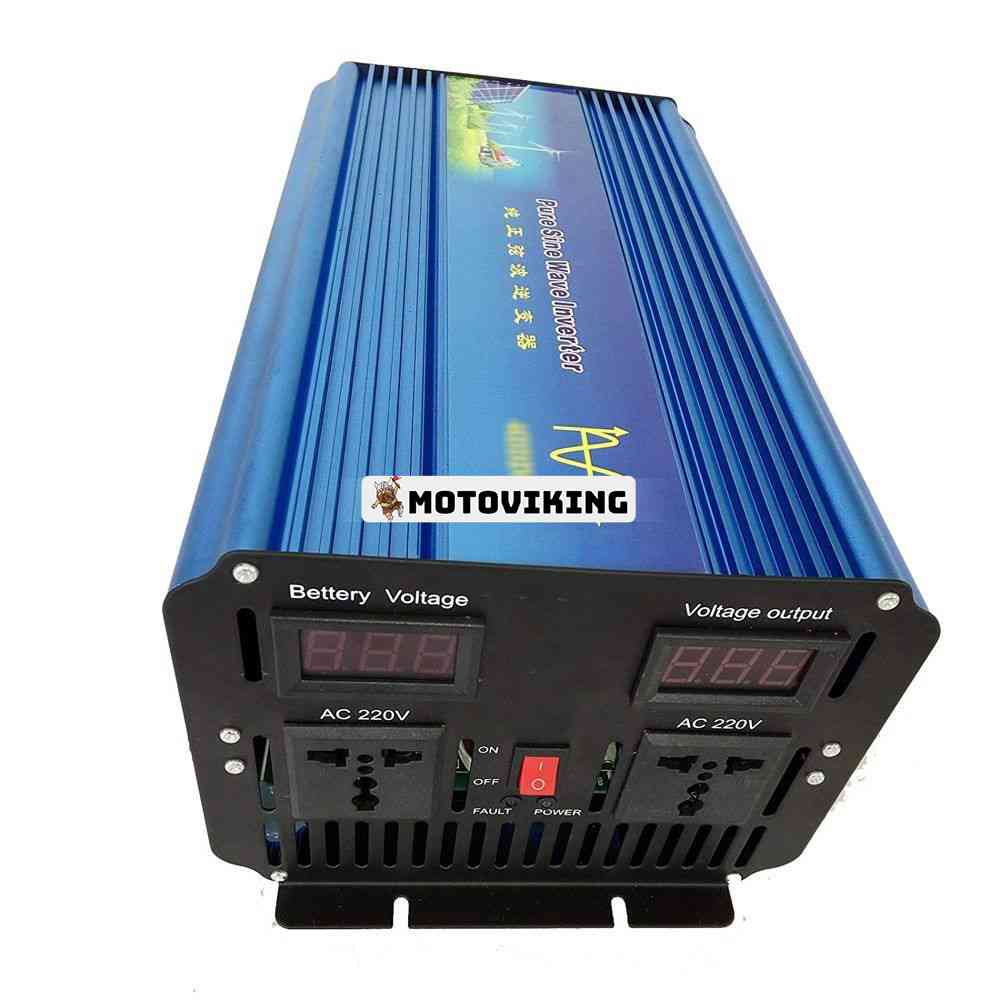

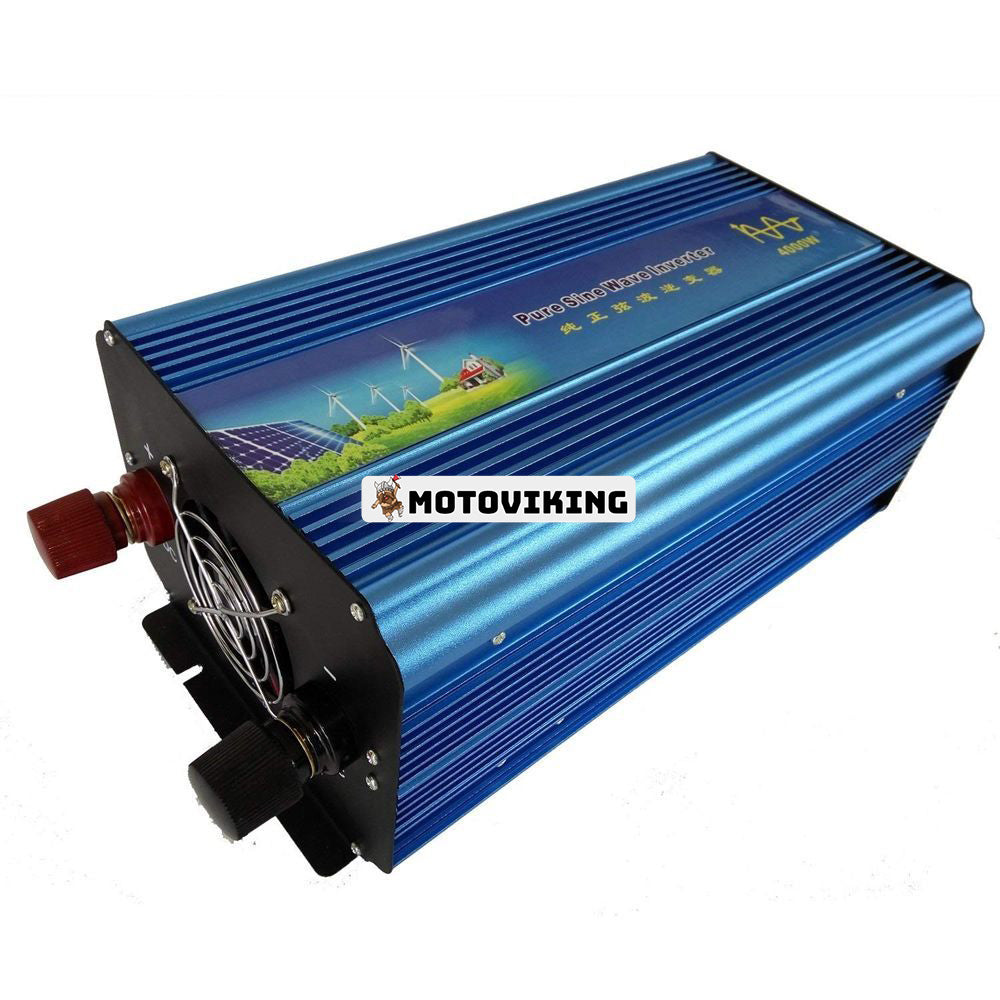

New 4000W DC 48V to AC 220V AC200-240V Power Pure Sine Wave Inverter
Type: Power Pure Sine Wave Inverter
Application: 4000W DC 48V to AC 220V AC200-240V
Features:
1.Buzzer alarm.
2. Convenient and high-efficiency power converter providing solution for AC power supply.
3. Delivers pure sine wave while normal types mostly deliver square or corrected sine wave.
4.CE approved.
Technical data:
DC input voltage: 48V
AC output voltage: 200-240V
Output waveform: pure sine wave
Output frequency: 50HZ or 60HZ(±2%)
TRT: <3%
Input efficiency: >85%
Fuse: 35A*4
Overtemperature shutdown: Yes
Short circuit protection: Yes
Overload protection: 120%
Reverse protection: Fuse inverted
Working temperature: -10°c to +50°c
Humidity: 20%~90%RH non-condensing
Storage temperature: -30°c to +70°c
If you need the inverter to drive the resistive load (such as laptop, TV, electric stove, LED lamp), please choose the inverter with continuous power higher than the rated power of the appliance. For example, for the inverter with continuous power 2500w, it is suggested that the device is run with rated power less than 2500w.
If you need the inverter to drive the inductive load (for appliances such as compressor, motor, water pump), calculate the inverter power 3 to 7 times higher than the rated power of your appliance.
