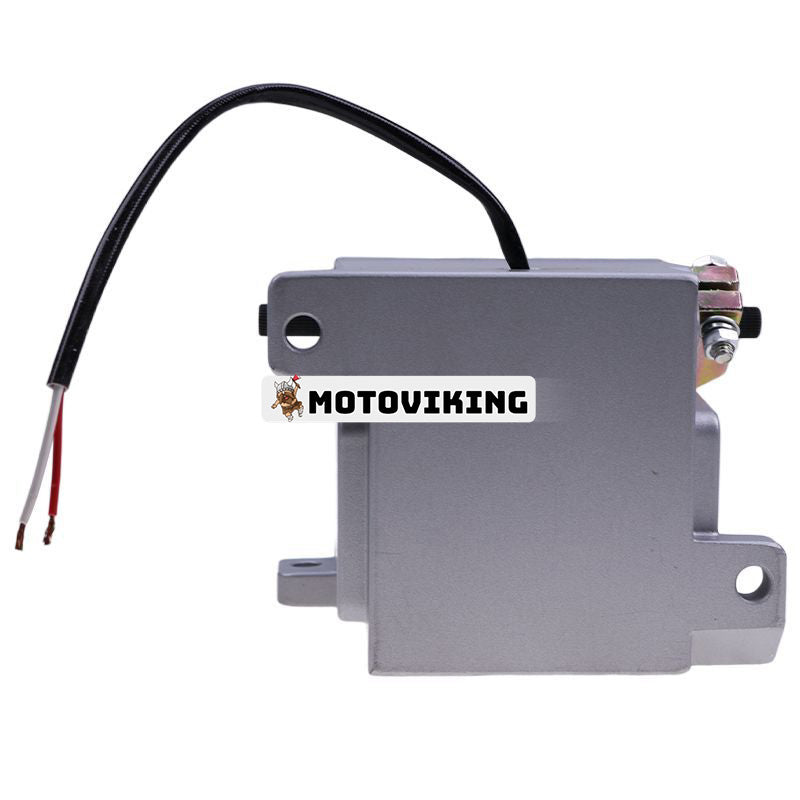

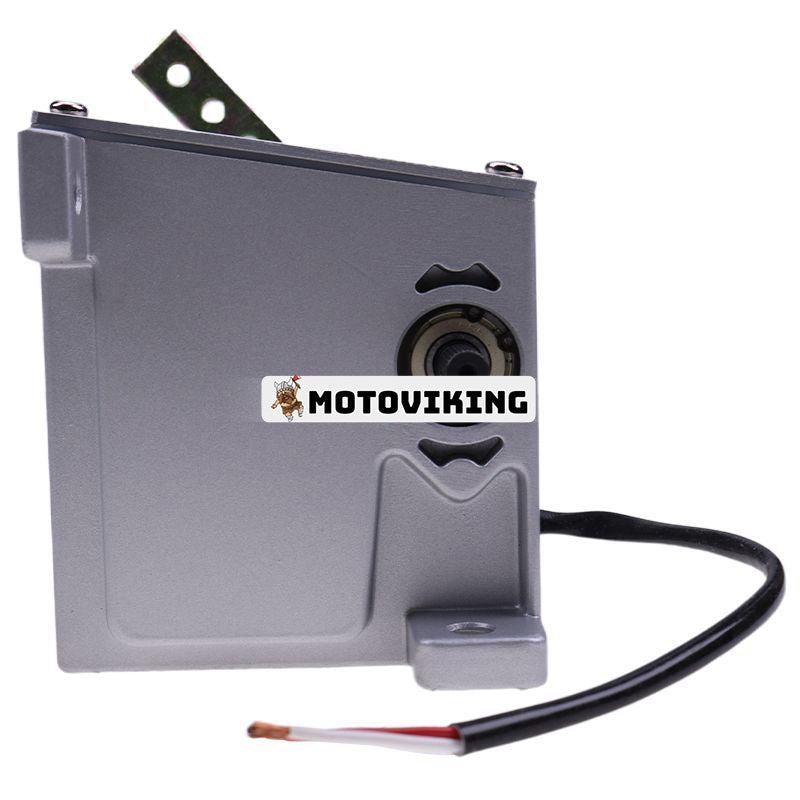

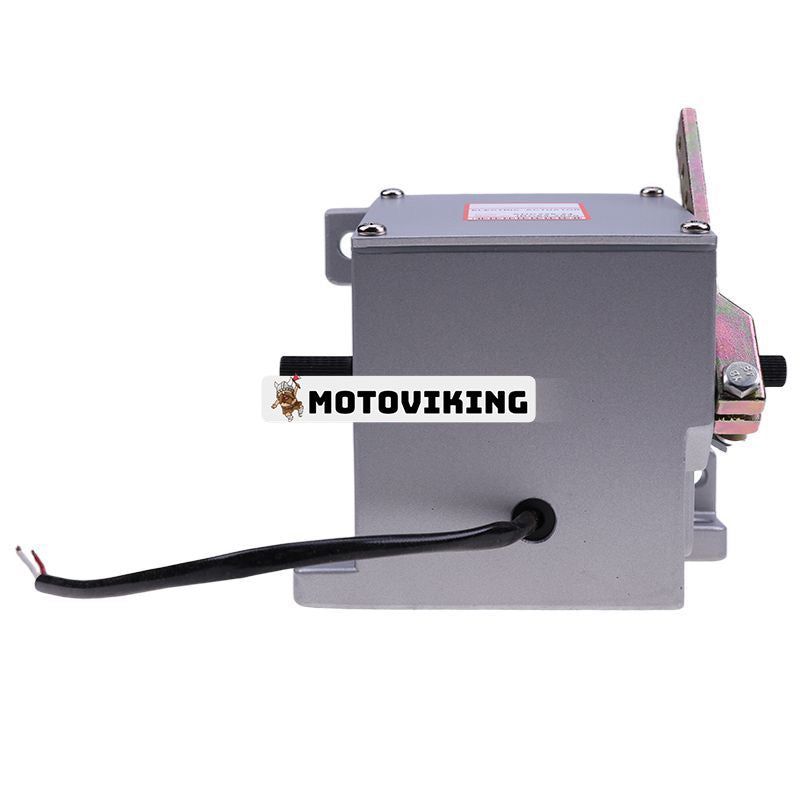

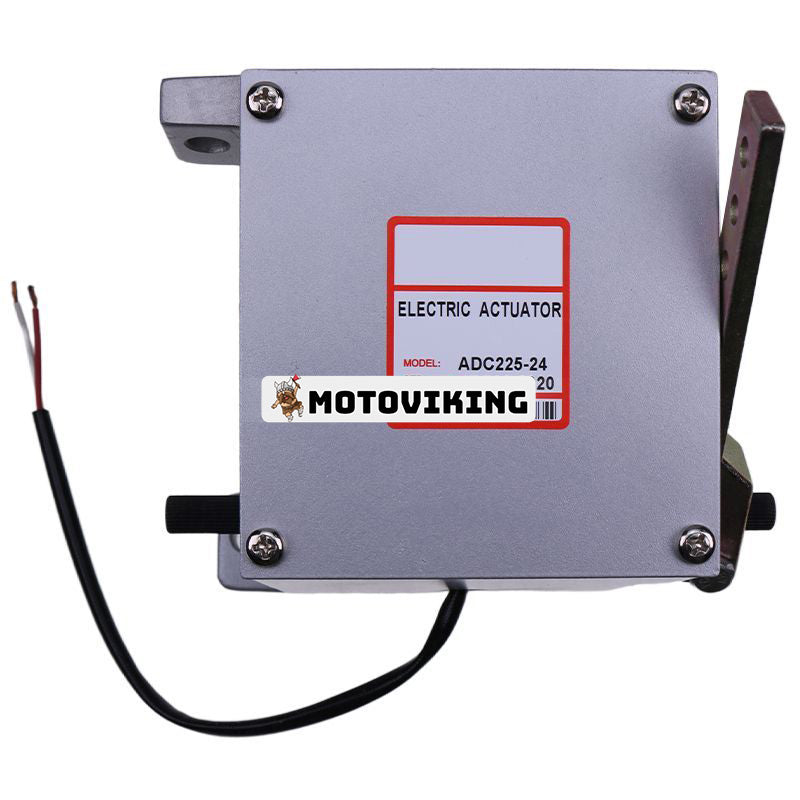

MotoViking external electronic actuator ADC225-24V Generator Automatic controller
Specifications:
PERFORMANCE:
Available Torque Max2.2 Lb-ft (2.7 Nm)
Maximum shaft angular movement 25+1 degrees CW/CCW
POWER INPUT:
Operating voltage 24VDC
Normal operating current 3 A at 12VDC
1.5A at 24VDC
Maximum current continuously rated 8 A at 12VDC
4A at 24VDC
ENVIRONMENT:
Temperature range -54 to 95
Relative humidity up to 100%
All Surface Treatment Fungus-proof and corrosion-resistant
PHYSICAL:
Weight 3.5 kg
Mounting Any position, electrical contact at the top is preferred
RELIABILITY:
Vibration up to 20G @50-500 Hz
Testing 100% tested
MATING HARDWARE
Connectors are supplied with actuators

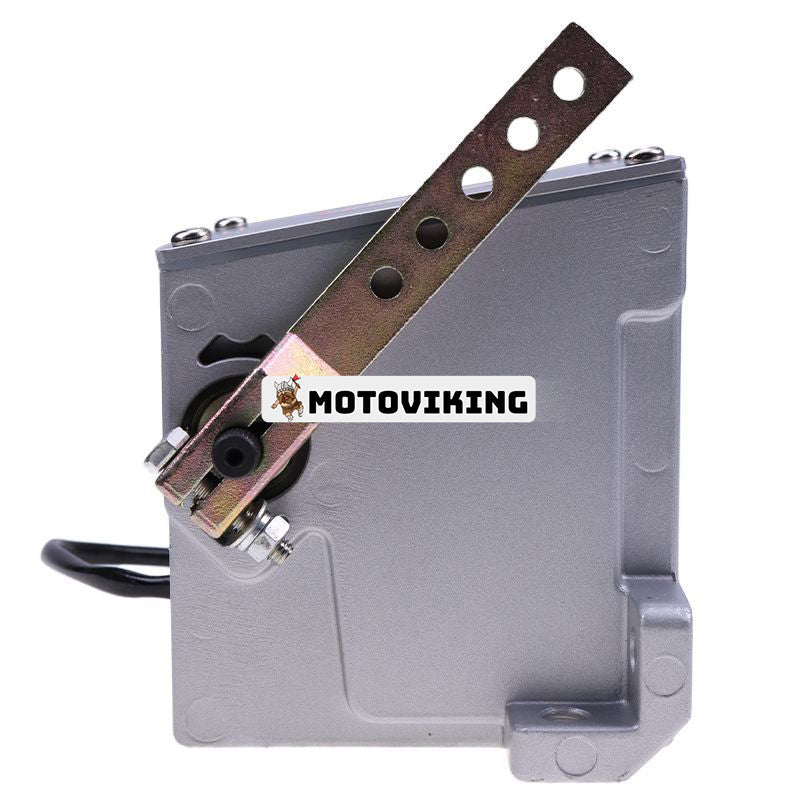

Lever LE1500-2
Rod end bearing (to attach a 12#20 HD link rod to the lever) BR100(right hand)&BR101(left hand)----(Not included!)
HD225 4ft. harness comes with actuator, other length available from actuator--------(Not include!)
