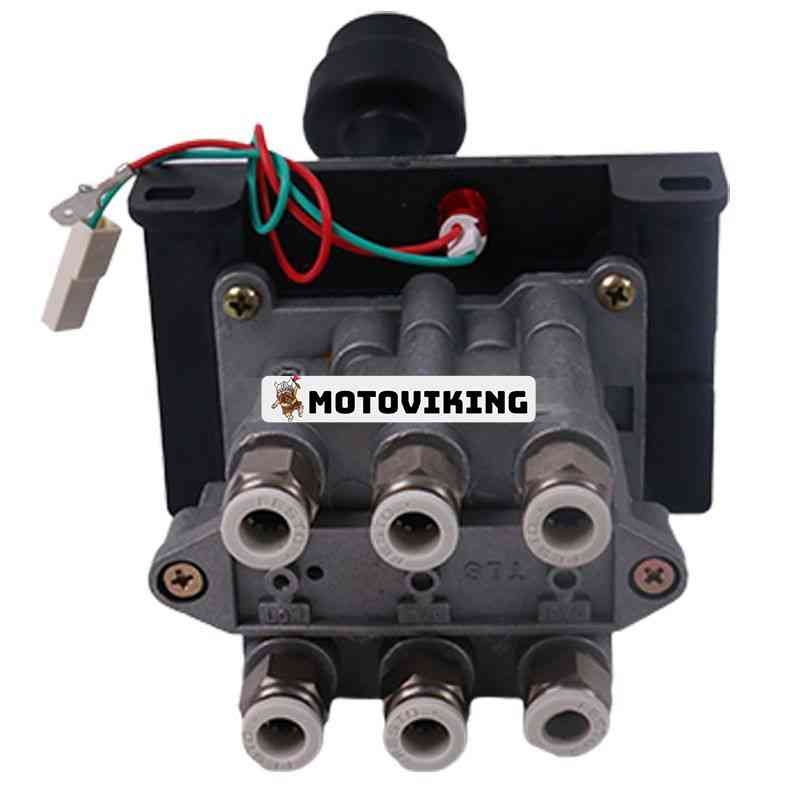

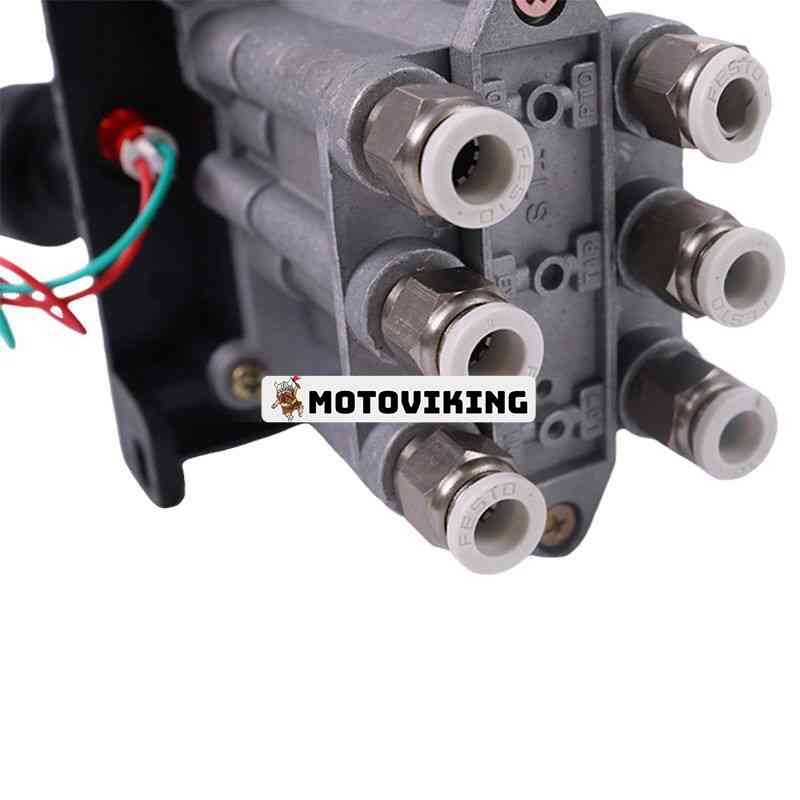

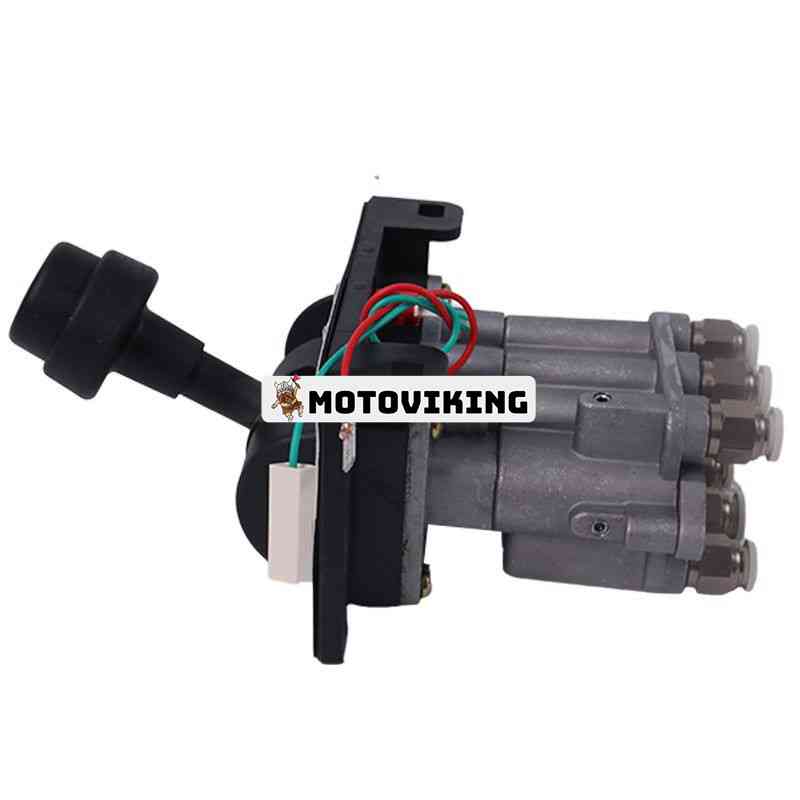

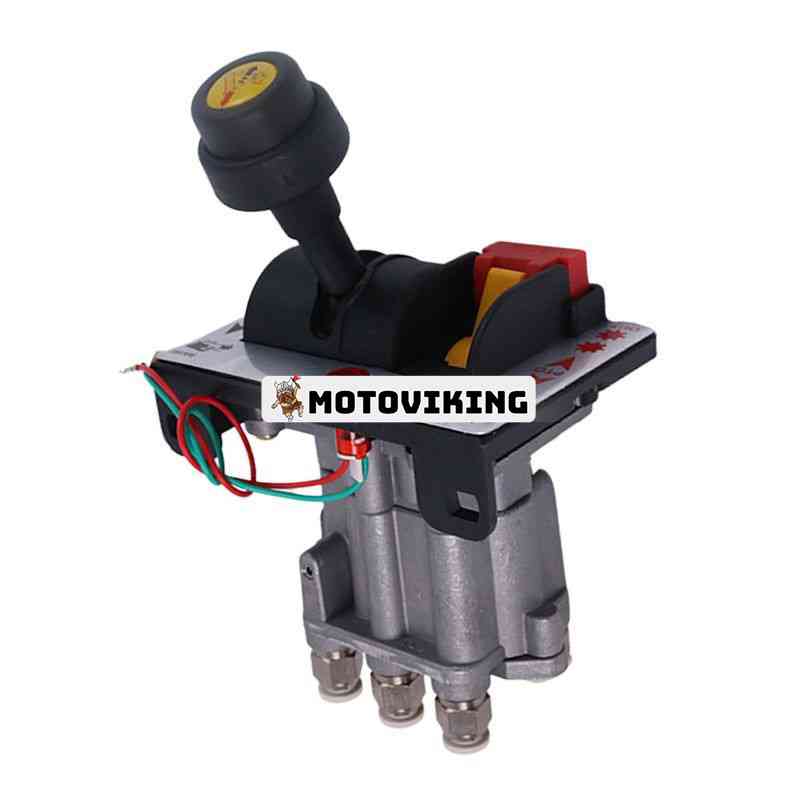

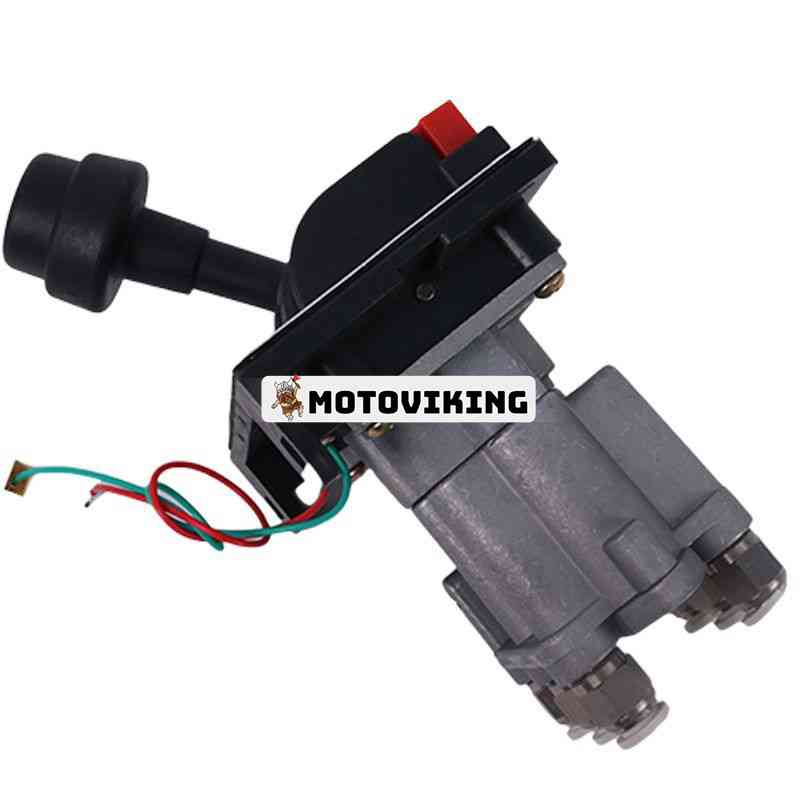

K90 Series Single Lever Air Control Valve for Dump Truck

Feature:

1. Eliminates jerky, stuttering operation with a controlled lowering (springs) design.

2.Reduces operator error with automatic PTO disengagement in lower setting

3. Warns you of PTO engagement through the control panel indicator light.

4.The K90 Series PTO/Lift Control Valve operates pneumatic truck functions with the simplicity of a single lever. It is built to perform with a design that allows for controlled lowering (springs) and smoother operation.

5. Built-in safety features vary by style and help reduce operator error. All valves have a pilot light that warns of PTO engagement. The K90 has automatic PTO disengagement in the lower setting, while the K90D has a “dead man’s” control on the lift lever, which returns to neutral and stops movement when user engagement is not present.

Specification:

Number of ports: 5

Rated pressure: 125 PSI

Series: K90

Valve operation: Manual lever

Valve action: suspension

Spring to neutral/deadman control (Y/N): No

Valve Primary Application: PTO/Pump Valve

Port Type: Brass Push Lock Fittings

Spring: Yes

Application:

Suitable for lifting, tipping, dumping applications

Spare part for dumper trailer.

Part/Replacement Number: K90 SERIES, SINGLE LEVER, AIR CONTROL VALVE, DUMP TRUCK, ELIMINATES, STUMPED, CONTROLLED, REDUCED, AUTOMATIC, DISENGAGEMENT, PTO, ENGAGEMENT, CONTROL PANEL, INDICATOR LIGHT, K90 SERIES, PTO, LIFT CONTROL VALVE, PNEUMATIC, TRUCK FUNCTIONS, SIMPLICITY, PERFORMANCE, SOFTER, BUILT-IN, VARY, DEPENDENT, VALVES, CONTROL LIGHT, LIFT LEVER, STOPS, SPECIFICATION, MANUAL, VALVE ACTION, NEUTRAL, PUMP VALVE, PORT TYPE, FITTINGS, DUMP TRUCK, DUMP APPLICATION.

Please contact us if you need help verifying compatibility or finding similar parts.
