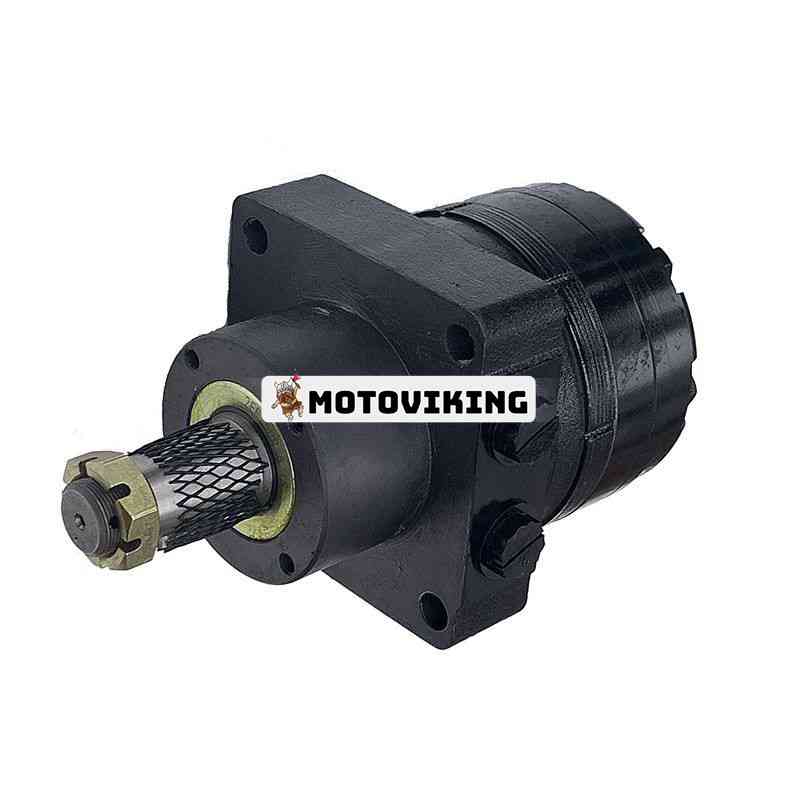

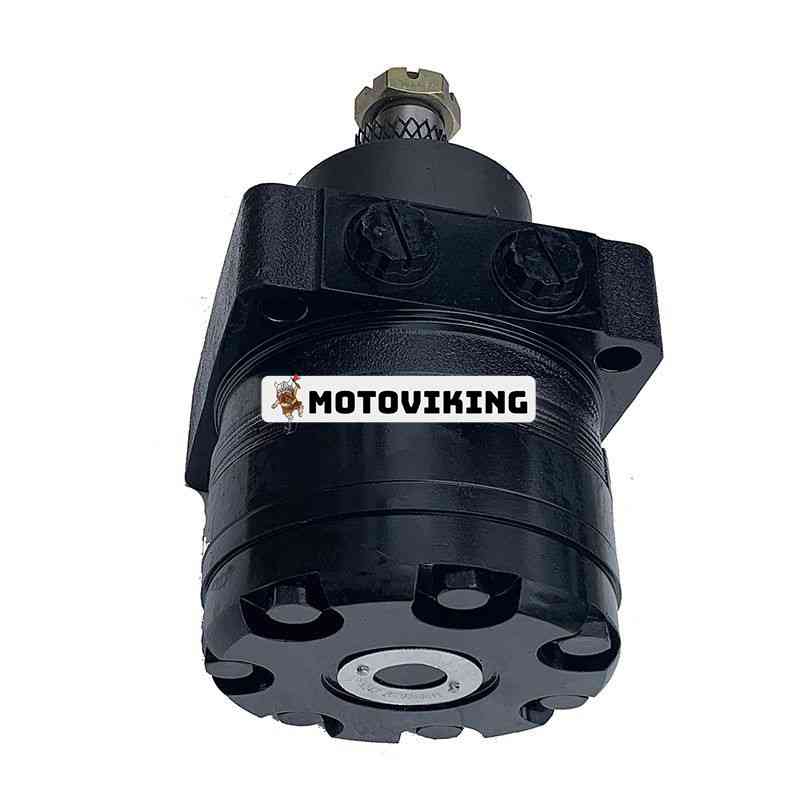

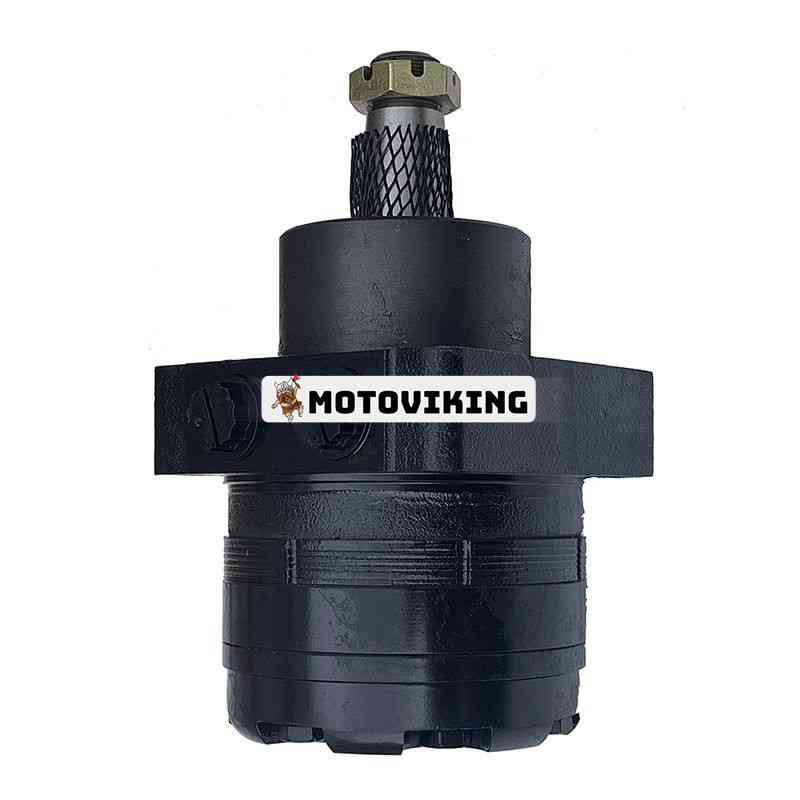

Wheel Motor for Parker TF0240LS080AAFB TF0240LS080AAKY Scag 482639 481529 Bobcat 4159280
Article number:
Parks: TF0240LS080AAFB, TF0240LS080AAKY, TF0240LS080AA
Scag:482639, 481529
Bobcat:4159280
Applications:
For Parker, Most Turf Tiger, Tiger Cub and Wildcat
Specification:
Displacement - 14.5 cu in
Assembly - Wheel, front brake
Ports - 7/8"-14 SAE O-ring
Shank - 1 1/4" tapered
Rotation - Standard
Max speed - 394 RPM
Max Oil Flow - 20 GPM (cont) / 25 GPM (interm)
Max Differential Pressure - 2000 psi (cont) / 3000 psi (interm)
Max supply pressure - 4350 psi
Max Torque - 3782 lb-in (cont.) / 5928 lb-in (interm)
Maximum performance - 37.1 hp
