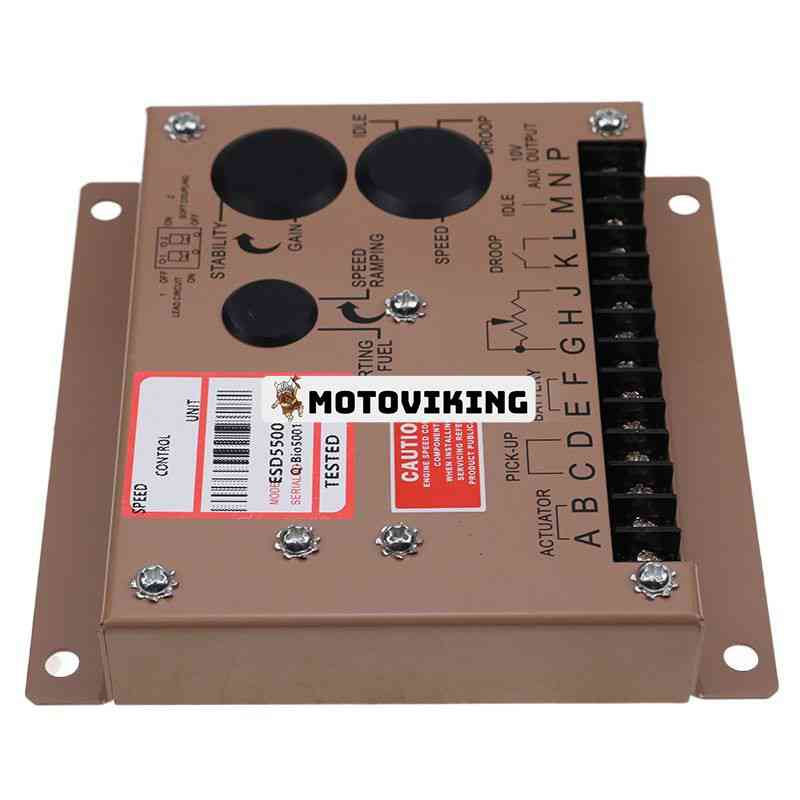

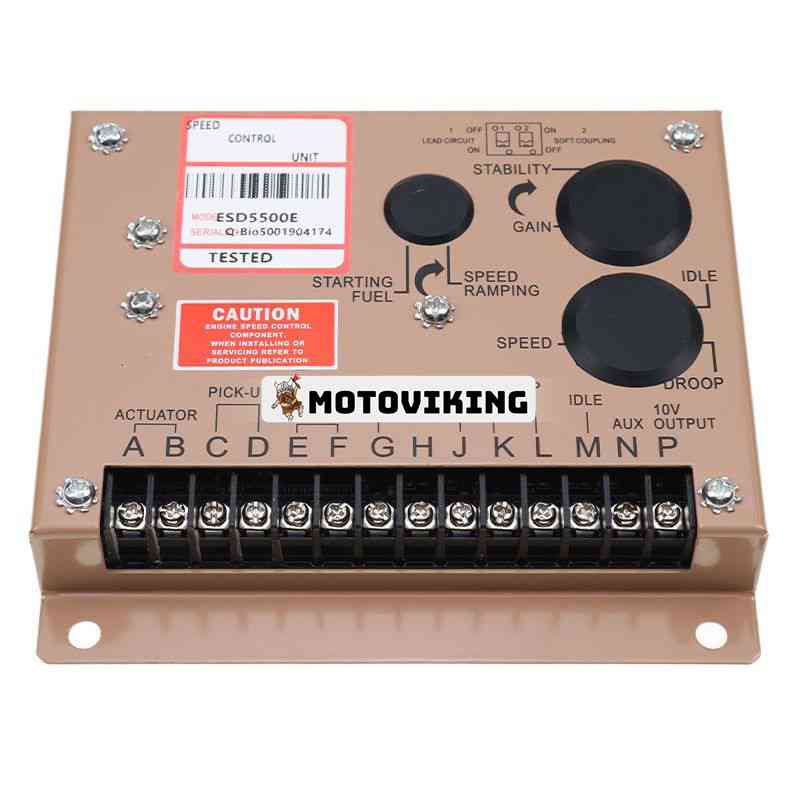

Electronic Engine Speed Controller Governor ESD5500E Alternator Generator
Application:
Technical specification:
Isochronous operation/Steady State Stability ± 0.25% or better
Speed range/controller 1K-7.5K Hz continuous
Speed operation with temperature ± 1% Max
Idle adjustment 160±20Hz - 60% of set speed
Drop Adjustment Min.(KL Jumpered) 15Hz. ±6Hz. per 1.0 A change
Drop Adjustment Max.(KL Jumpered) 400Hz. ±75Hz. per 1.0 A change
Droop Adj. Max. (KL Jumpered) 875Hz., ±75Hz. per 1.0 A change
Droop Adj. Min. (KL Jumpered) 15Hz.,±6Hz. per 1.0 A change
Speed trim range±200Hz
Remote controlled variable speed range 500 -7.5 Hz. or any part thereof

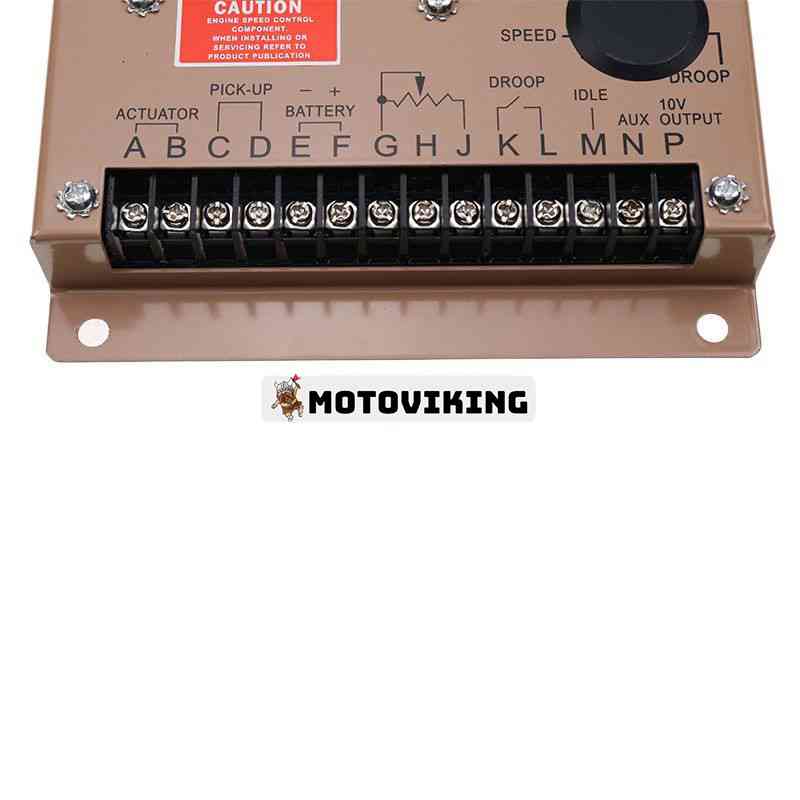

Terminal sensitivity
J: 100Hz., ±15Hz/Volt @ 5.0K impedance
L: 735 Hz., ± 60 Hz/Volt at 65 K impedance
N: 148Hz., ±10Hz/Volt @ 1Meg. Impedance
P: 10V DC Supply @ 20ma Max.
Speed switch adjustment range 1000-10000Hz.
Environment: Ambient operating temperature range -40℃ to +85℃
Relative humidity up to 95%
Storage temperature -55℃ - 90℃
Shock 20-100HZ 500mm/sec
Input Power: Powers 12 or 24V DC battery systems (transient and reverse voltage protected)
Polarity negative ground (case isolated)
Current consumption 50mA continuous plus actuator current
Actuator current range @ 25℃-(inductive load) Min. 2.5 amps, max. 10 amps continuous
Speed sensor signal 0.5-120 V RMS
Speed switch relay contacts (NOand NC) 10 Amp
Article number:
ESD5500E
