Aftermarket Deep Sea Manual Key Start DSE501K Generator Controller Electronics Module
Introduction:

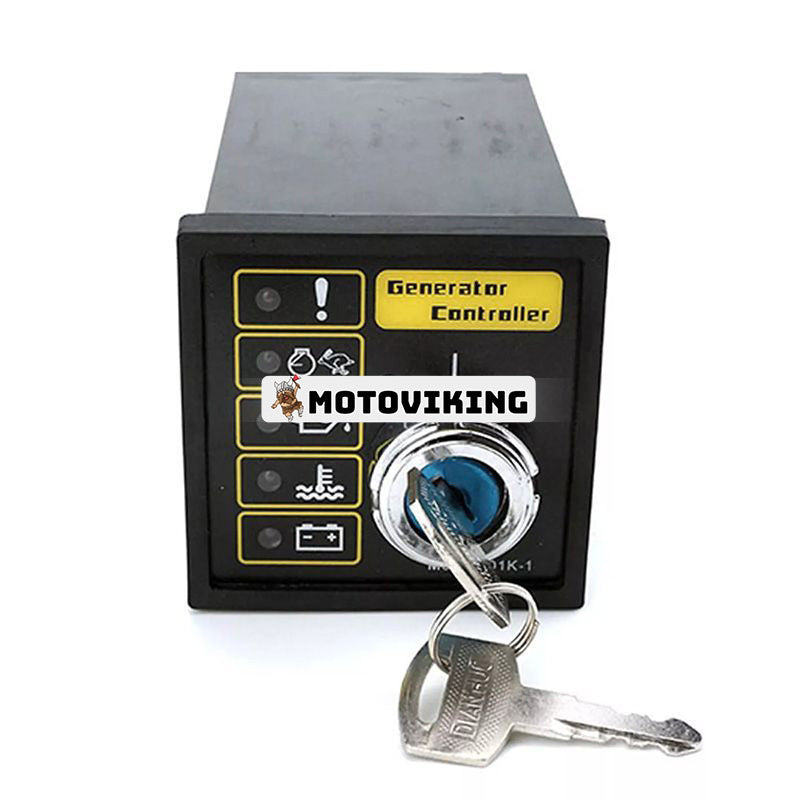

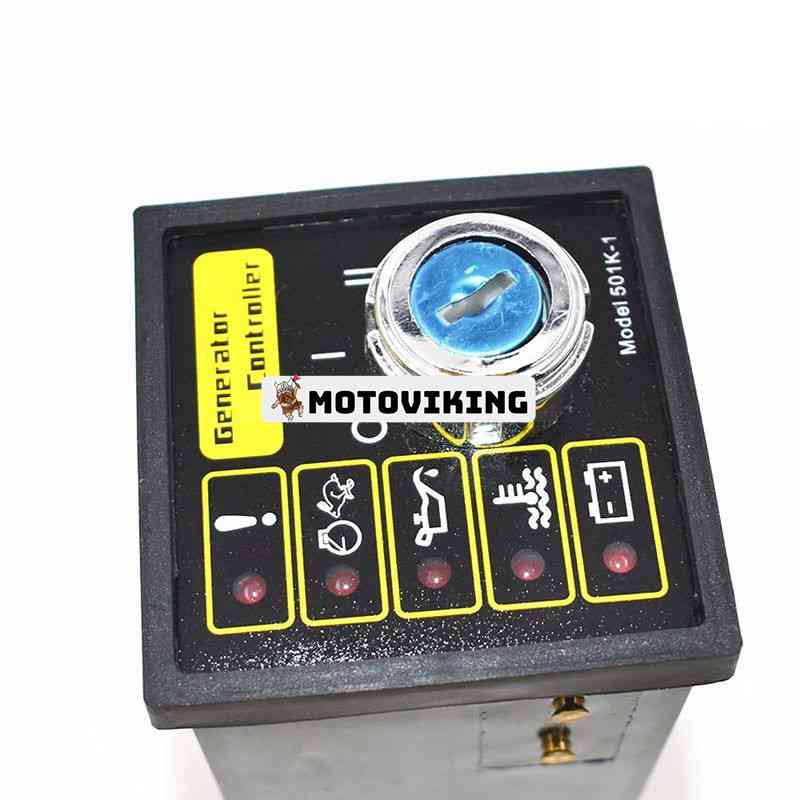

The model 501K is a manual engine control module, which is designed to manually control the engine via a key
turn on the front panel. The module is used to start and stop the motor, which indicates fault conditions, automatically
shuts down the motor and indicates motor failure by the LED giving a true first up error message.
Features:
Oil pressure monitoring
Motor temperature monitoring
Overspeed protection
Charging Error Warning
DC supply: 9 to 33 V continuous.
Start-up interruption: Can survive voltage drops during start-up. This is achieved without the need
for internal batteries.
Generator input range: 15 - 305 V AC RMS
Generator input frequency: 50 - 60 Hz at rated engine speed.
Magnetic input range: 0.5 V to +/- 80 V
Magnetic input frequency: 2300Hz to 6000 Hz at rated motor speed.
Starter relay output: 16 Amp DC at supply voltage.
Drive relay output: 16 Amp DC at supply voltage.
Alarm output: 1 Amp DC at supply voltage.
Dimensions: 72 X 72 X 118.5 (excluding key switch)
Operating temperature range: -30 to +70°C
Installation:
Front panel mounting via appropriate cutout.
Mounting clips included.

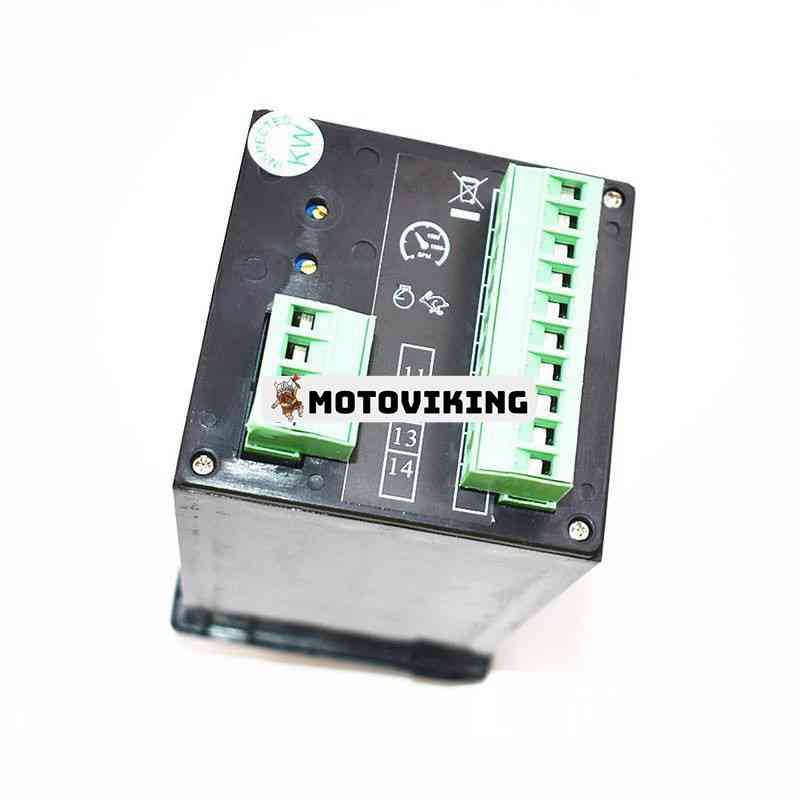

Cable connections via locking connector and socket.

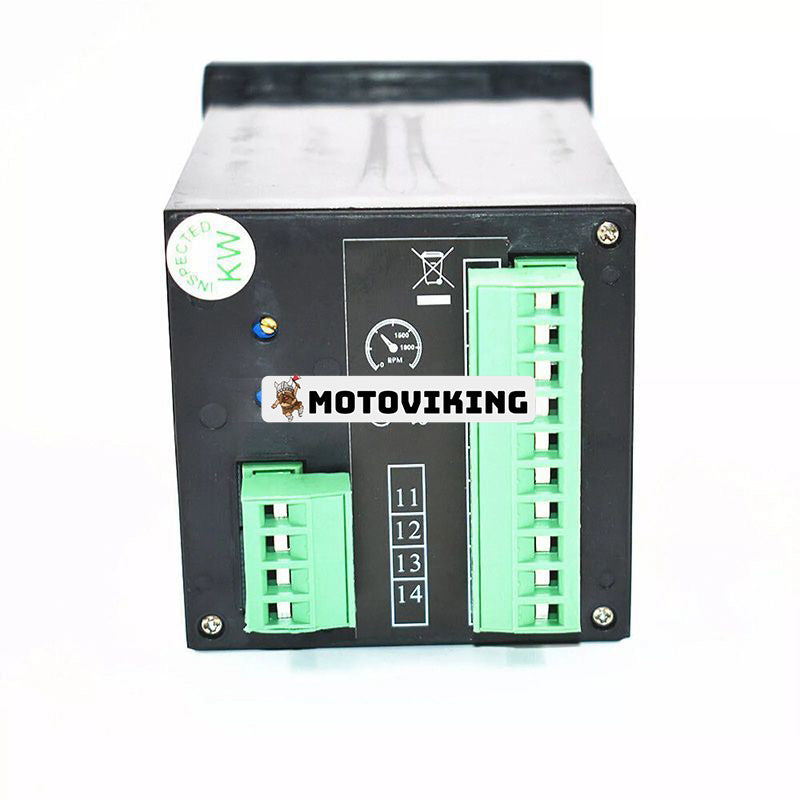

Calibration: Speed ​​trigger setting and potentiometer for meter calibration are available
from the back of the module
