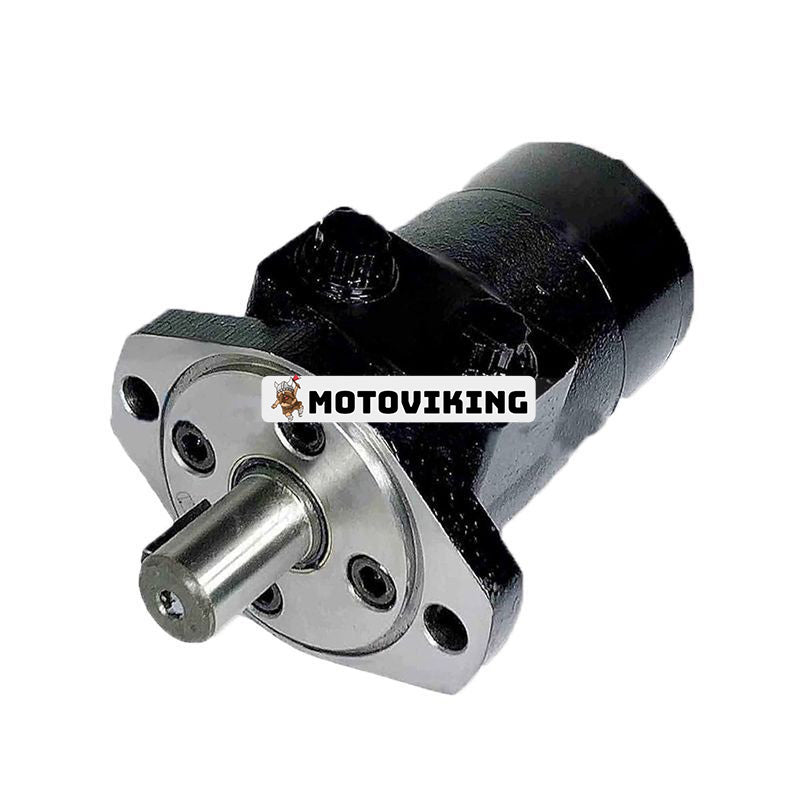

Aftermarket Eaton Char-Lynn S-Series 103-2692-012 Hydraulic Motor for Backhoe Loader Dozer Tractor Combine
Replace part number:
103-2692-012, 1032692012
Specification:
Displacement: 144 CM3/R [8.8 IN3/R]
Mounting Type: 2 BOLT STD - 82.50 [3.248] DIA. X 3.05 [.120] PILOT, 13.59 [.535] DIA. MOUNTING HOLE AT 106.35 [4.187] DIA. bc
Output Shaft: 25.4 [1.00] DIA. SAE 6B SPLINE, .250-20 UNC-2B HOLE IN SHAFT TEETH
Port Type: .875-14 UNF-2B SAE O-RING PORTS
Application:
Suitable for excavators, loaders, dozers, tractors, combines and so on machines with Eaton Char-Lynn hydraulic motor 103-2692-012
