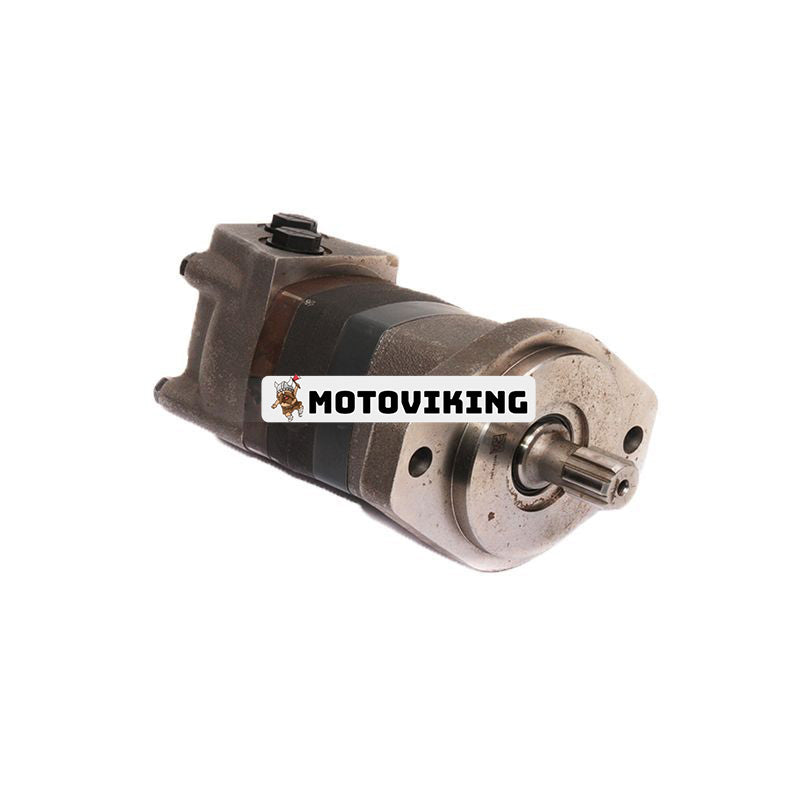

Aftermarket Eaton Char-Lynn 2000 Series 104-1195-006 Hydraulic Motor for Tractor Combine Backhoe Loader Crane
Replace part number:
104-1195-006, 1041195006
Specification:
Volume: 130.6 CM3/R [ 7.97 IN3/R]
Mounting Type: STANDARD, 2 BOLT; 101.6 [4.00] PILOT DIA. 14.35 [.565] DIA. HOLE ON 146.0 [5.75] DIA. BOLT CIRC. SAE B
Output Shaft: 25.40 [1.000] DIA. 6B SPLINE PER SAE J499 WITH .250-20UNC-2B THREAD AT END, 22.76 [.896] MINIMUM FULL SPLINE LENGTH
Port Type: .875-14 UNF-2B SAE O-RING PORTS - PROTECTED PORTS
Application:
Suitable for tractors, combines, excavators, loaders, cranes and so on machines with Eaton Char-Lynn hydraulic motor 104-1195-006
