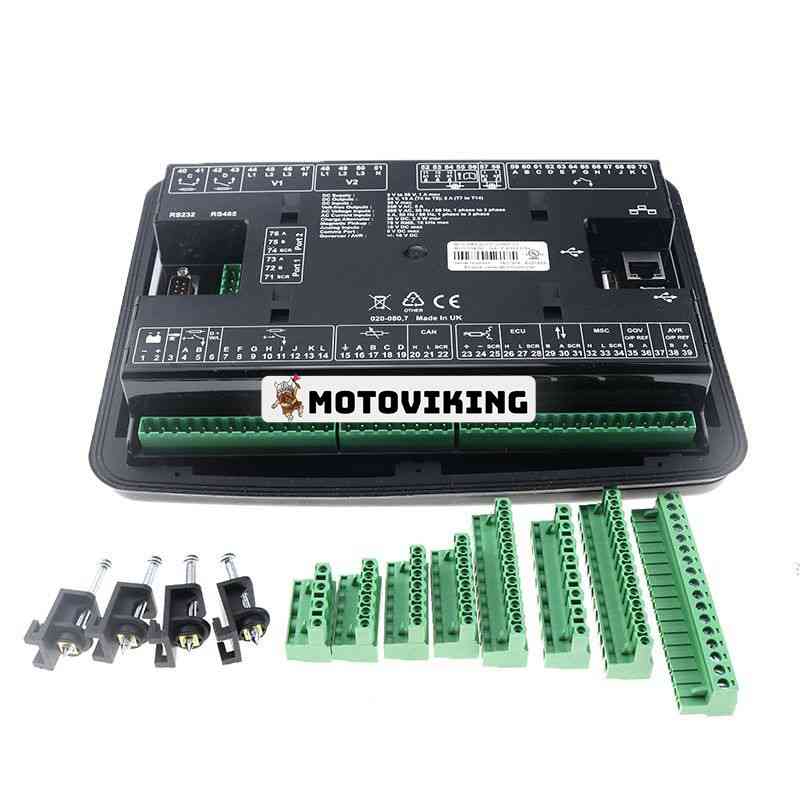

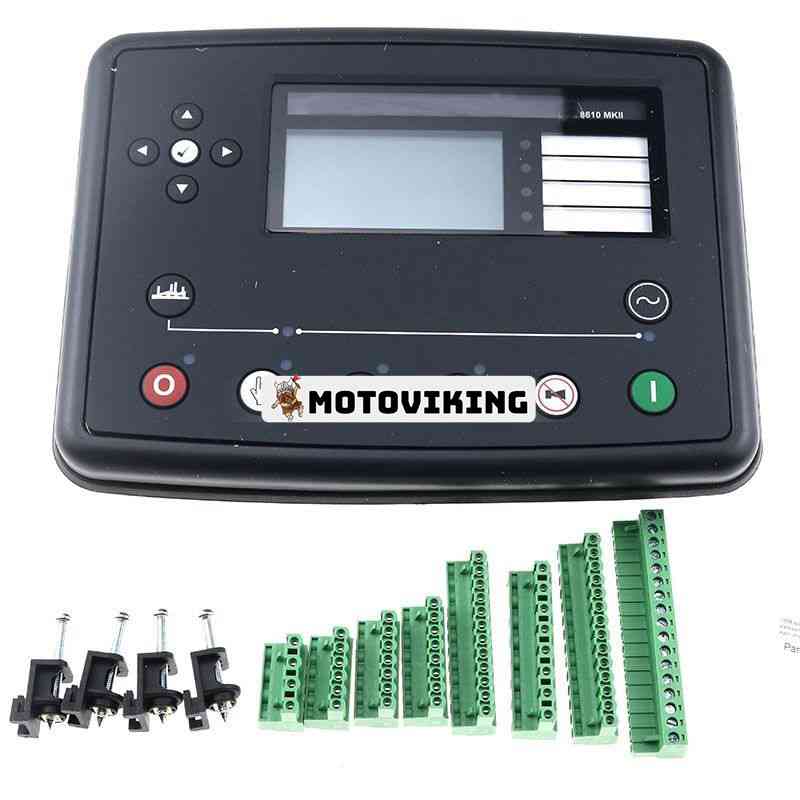

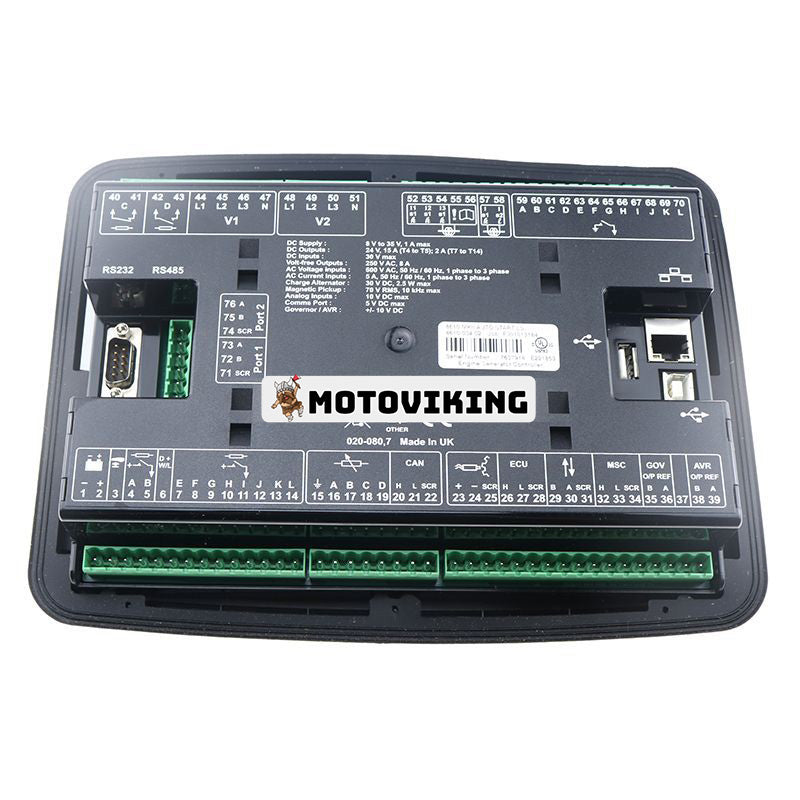

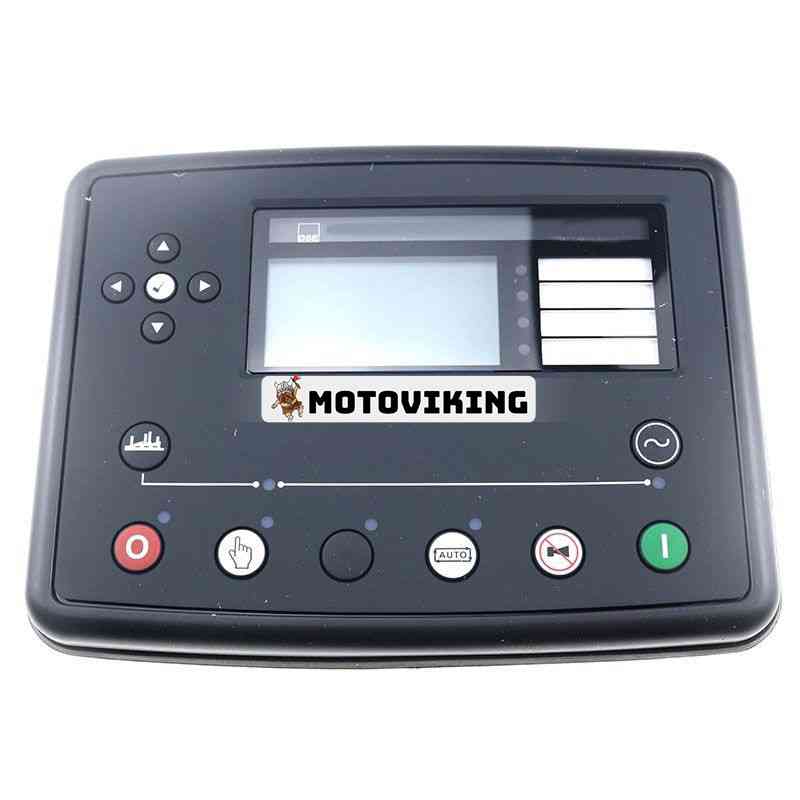

Aftermarket Deep Sea DSE8610 MKII Electronics Module Controller

Aftermarket Deep Sea DSE8610 MKII Electronics Module Controller
Replace part number:
DSE8610 MKII, DSE8610MKII
The DSE8610 MKII represents the latest in complex load sharing and synchronization technology. Designed to handle the most complex grid-type generator applications, the DSE8610 MKII control module is packed with several features and benefits that are unmatched in the generator control industry.
Specification:
TOTAL SIZE
245 mm x 184 mm x 51 mm (9.6 in x 7.2 in x 2.0 in)
PANEL WEAR SIZE
220 mm x 160 mm (8.7 in x 6.3 in)
MAXIMUM PANEL THICKNESS
8.0 mm (0.3 in)
PRODUCT VARIANTS
8610-02 – 8610 MKII Synchronizing & Load Sharing Control Module (Ct, Rtc)
DC SUPPLY
CONTINUOUS VOLTAGE
8 V to 35 V continuous
CRANK INTERRUPTION
Can survive 0 V for 50 mS, provided the power supply was at least 10 V before the interruption and the power returns to 5 V. This is achieved without the need for internal batteries
MAXIMUM OPERATING CURRENT
460 mA at 12 V, 245 mA at 24 V
MAXIMUM STANDBY CURRENT
375 mA at 12 V, 200 mA at 24 V
CHARGE FAIL/EXCITATION AREA
0V to 35V
OUTPUTS
OUTPUT A (FUEL)
15 A DC at supply voltage
OUTPUT B (START)
15 A DC at supply voltage
EXITS C & D
8 A AC at 250 V AC (voltage-free)
AUXILIARY OUTPUTS E,F,G,H,I & J
2 A DC at supply voltage
GENERATOR & BUS
VOLTAGE RANGE
15 V to 415 V AC (Ph to N)
25 V to 719 V AC (Ph to Ph)
FREQUENCY RANGE
3.5Hz to 75Hz
MAGNETIC SUSPENSION
VOLTAGE RANGE
+/- 0.5V to 70V
FREQUENCY RANGE
10,000Hz (maximum)
BUILT-IN GOVERNOR CONTROL
MINIMUM LOAD IMPEDANCE
1000Ω
Fully insulated
INCREASE IN VOLTAGE
0V to 10V DC
Fully insulated
OFFSET VOLTAGE
+/- 10V DC
Fully insulated
BUILT-IN AVR CONTROL
MINIMUM LOAD IMPEDANCE
1000Ω
Fully insulated
INCREASE IN VOLTAGE
0V to 10V DC
Fully insulated
OFFSET VOLTAGE
+/- 10V DC
Fully insulated
