CM8811FN Coating Thickness Measuring Range: 0-1250 μm /0-50 mil
Notice:
The standard package does not include batteries. Since the international air freight prohibits sending liquid, powder and batteries, we cannot put them in the package. Hope you understand, please buy them in your local store or supermarket. Thank you for your support!
Overview:

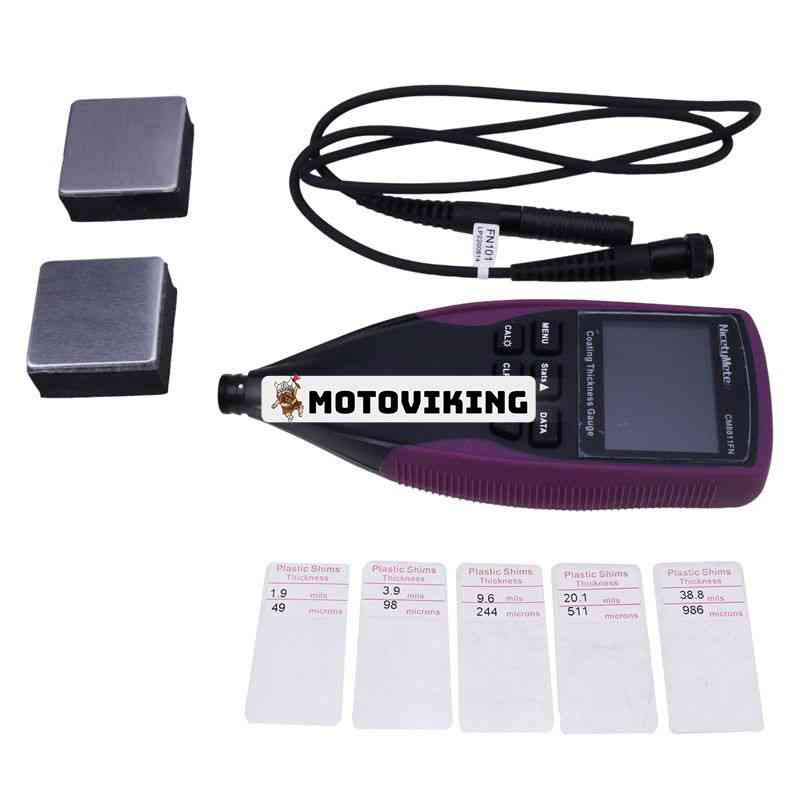

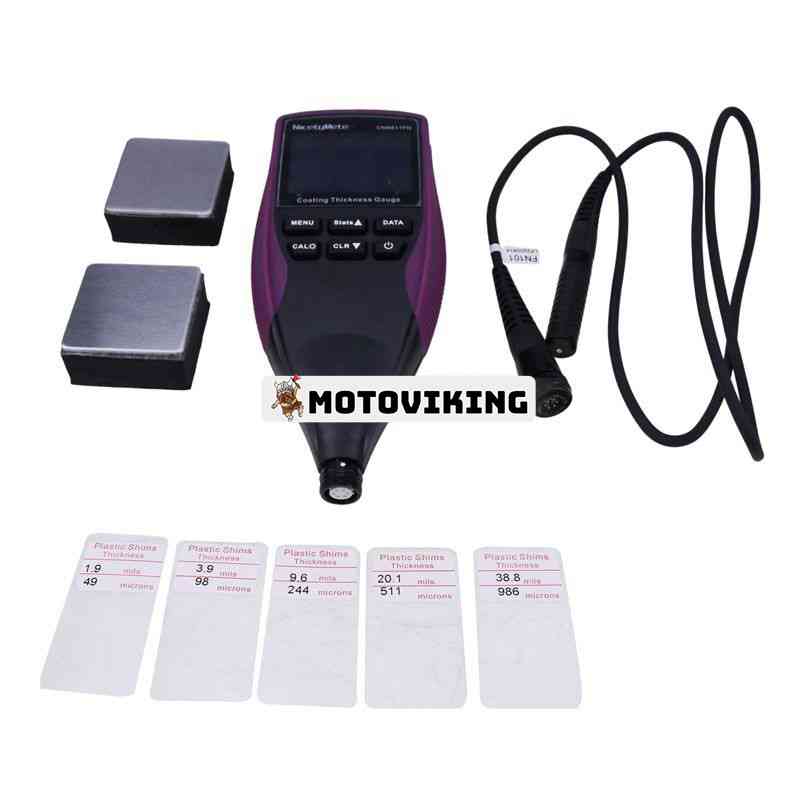

Coating Thickness Gauge CM8811FN is a highly intelligent and precise instrument used to quickly and accurately measure the thickness of coating or plating on almost all types of metal surfaces.
It not only indicates the thickness of the coating or plating but also automatically identifies the base material.
It is useful for measuring non-magnetic paint, ceramics, enamel, plastics, rubber coating on magnetic base materials such as iron and steel, non-ferrous metal plating such as nickel and chromium, anti-rust coating, non-conductive paint, plastic coating and anodic oxide film on non-magnetic conductive devices.
Work:
Measurement: Continuous and single measurement available
Display: Simultaneously displays measured value, average value, maximum value, minimum value and standard deviation
Memory: 80 data stores
Unit: Metric/imperial switchable (mil/um selectable)
Backlight: Adjustable brightness, clear and easy reading in all lighting conditions
Alarm: Set upper and lower alarm range for measurement
Calibration: Zero-in, 2-point calibration and multi-point calibration selectable
Battery: Low battery indication
Language: English and Chinese selectable (customization for other languages available)
Delete data: delete a single data or clear all data
Specification
Range: 0-1250μm /0-50mil
Resolution: 0.1μm/mil
Accuracy: ±(2%+2μm) / ±(2%+0.1mil)
Display: TFT 320*240 LCD
Test limits:
Surface curvature: convex 1.5 mm / concave 7 mm
Minimum test area: Φ8mm
Minimum thickness of the base material: 0.4 mm
Operating condition (not in high magnetic field):
Temperature: 0℃~40℃
Humidity: 20%RH-90RH
