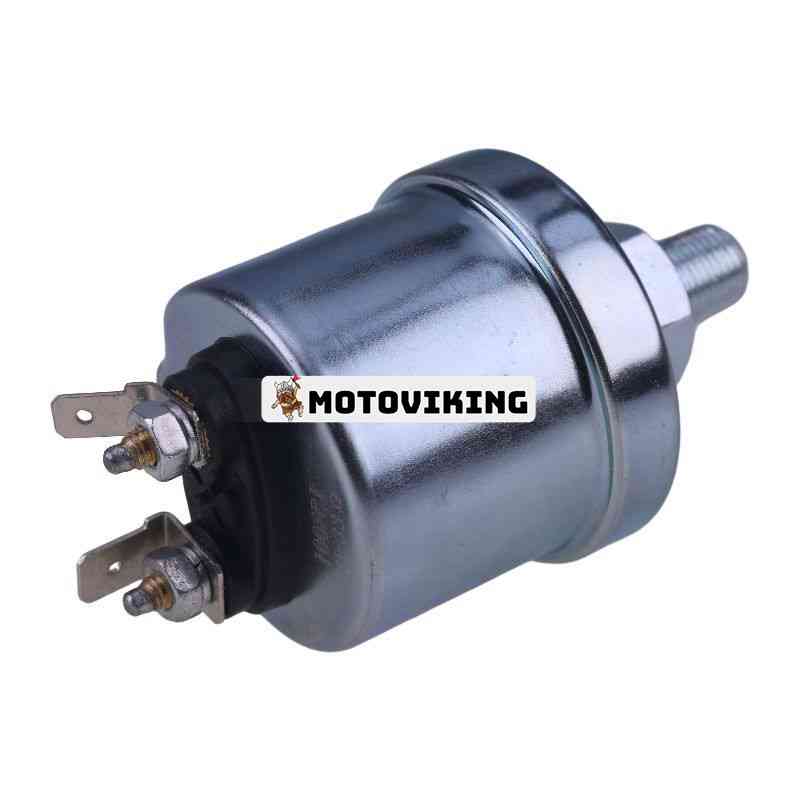

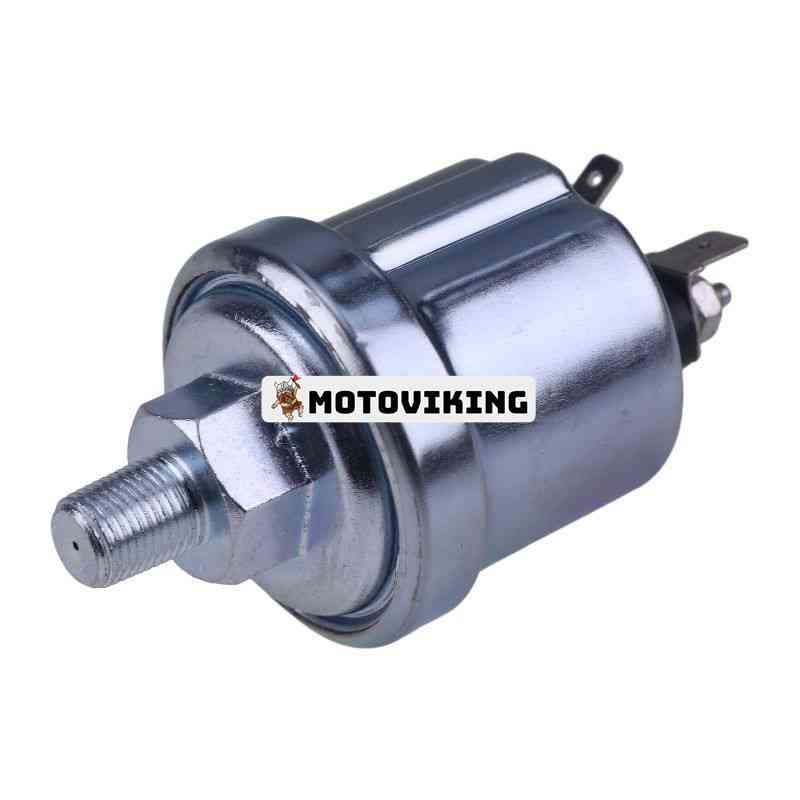

Blade Type 0-100PSI Datcon 240-33 Ohm with 20PSI Alarm Oil Pressure Sensor
Specification:
Stewart-Warner type oil pressure sensor.
blade type clamps so there is no chance of the clamps breaking
Input: 0-100 psi.
Output: 240-33 ohm resistor. Case grounded. Stewart-Warner type.

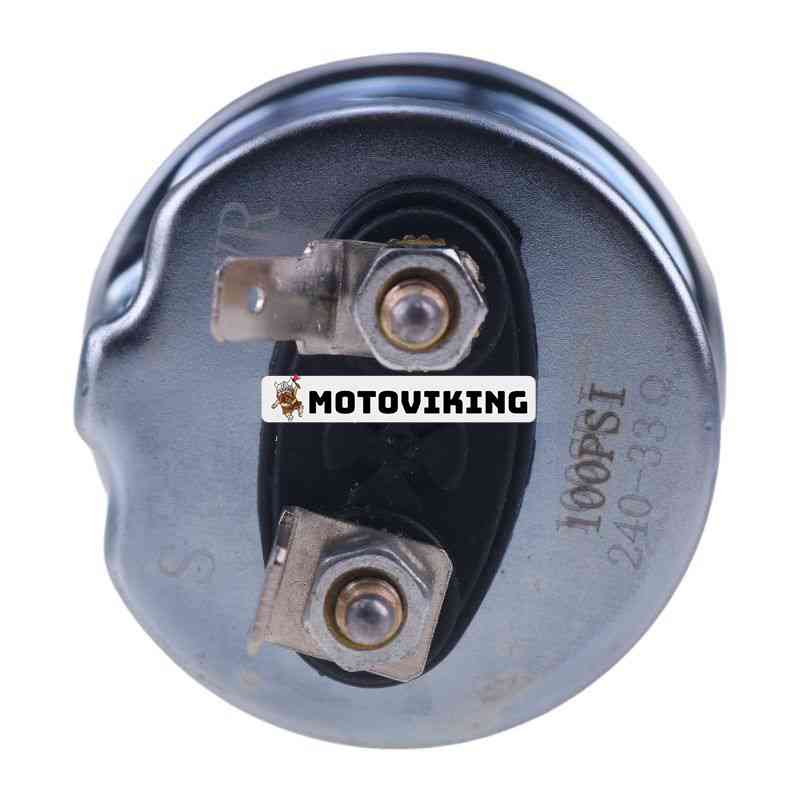

S - signal output sheet.
WR - Low 20 psi alarm switch.
Land - case;
when the pressure is greater than 20 psi the WR switch will be open, when the pressure is less 20 psi the WR switch will be closed or connected to ground.
Accuracy: within 5% full scale.

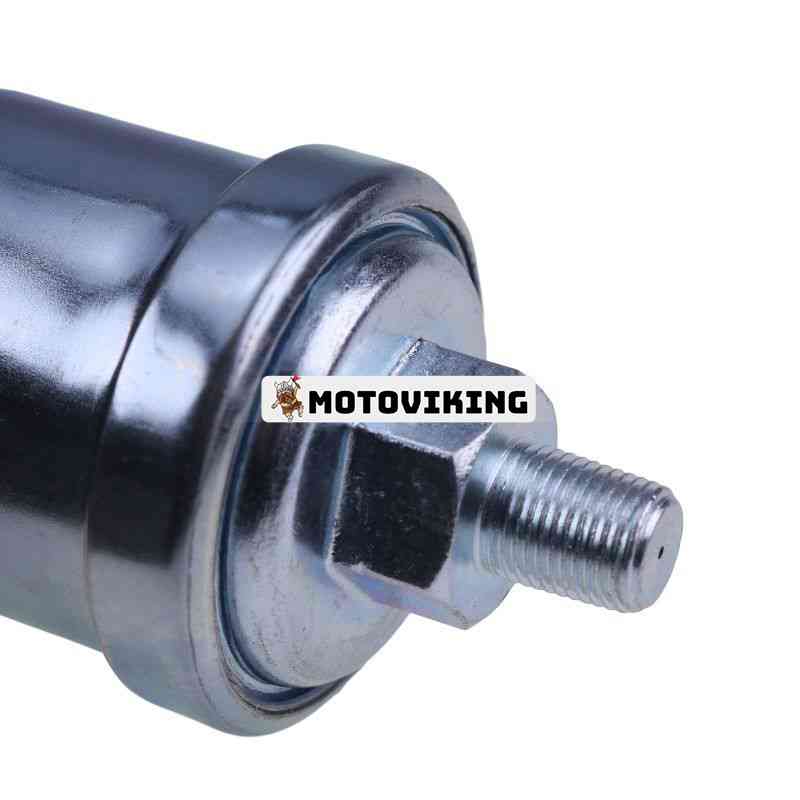

Thread: 1/8”-27 NPT. See our fitting kit for other thread sizes below.
White zinc environmentally friendly plated, RoHS compliant.
Wire connectors: 8-32 pins, with blades and sockets.
Symbols: S for signal, should use wide blade, G for ground.
Hardware bag includes: sockets, insulating sleeves.
Dimensions: body diameter 1.76", body length 1.5", total length 3".
