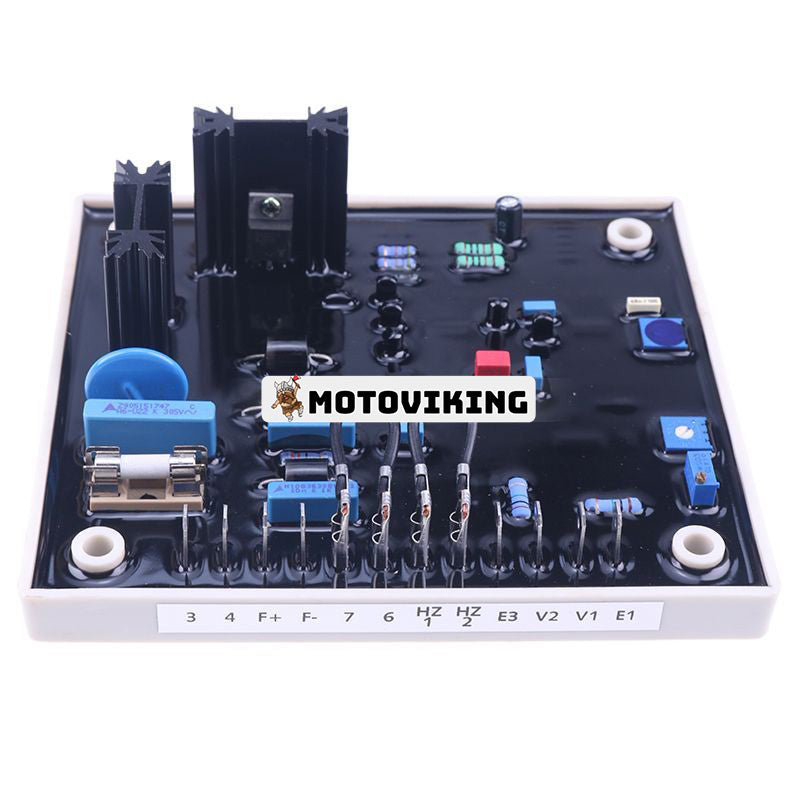

Automatic Voltage Regulator AVR EA63-4 for Basler Generator

Article number:

EA63-4

Applications:

for Basler Generator

Details:

Model No.: AVC63-4A/EA63-4

Sensing input: voltage 120(95~139) or 240(190~277), 1 phase 2-wire

Frequency 50/60 Hz

Power input: Voltage 95~139 VAC, 1 phase 2-wire

Output: Voltage Max. 63VDC

Current continuous 4A, intermittent 7A for 60 sec. 9A for 10 sec.

Resistance Min. 15Ω , Max. 100Ω

Voltage regulation: < ± 1% (with 4% motor control)

Voltage build-up: Remaining volts at AVR terminal > 5 VAC

External voltage adjustment: ± 15% with 10 KΩ 1 watt trimmer

Thermal drift: 0.05% per °C change in AVR ambient

Device power dissipation Max. 15 watts

EMI Suppression: Internal electromagnetic interference filtering

Under frequency protection: Knee point adjustable range 45~55 Hz

Over-magnetization shutdown: Field voltage is shut off after a time delay if the excitation field voltage exceeds 95 VDC ± 5%

Environment:

Operating temperature: -40~60°C

Storage temperature: -40~85°C

Relative humidity: max 95%

Vibration: 1.5G @ 5~30Hz, 5.0G @ 30~500Hz

AVR control features:

VOLT ADJ : Voltage adjustment

STAB : Stability adjustment

Spare part for Basler Generator.

Part/Replacement Number: AUTOMATIC, GENERATOR, PART NUMBER, APPLICATIONS, DETAILS, AVC63-4A, FREQUENCY, CONTINUOUS, INTERMITTENT, ENGINE CONTROL, RESIDUAL, AVR TERMINAL, TRIMMER, THERMAL, AVR ENVIRONMENT, UNIT, ELECTROMAGNETIC, INTERFERENCE FILTERING, FREQUENCY PROTECTION, OPERATING TEMPERATURE, RELATIVE, HUMIDITY, VIBRATION, AVR CONTROL FUNCTIONS, STABILITY ADJUSTMENT.

Please contact us if you need help verifying compatibility or finding similar parts.
