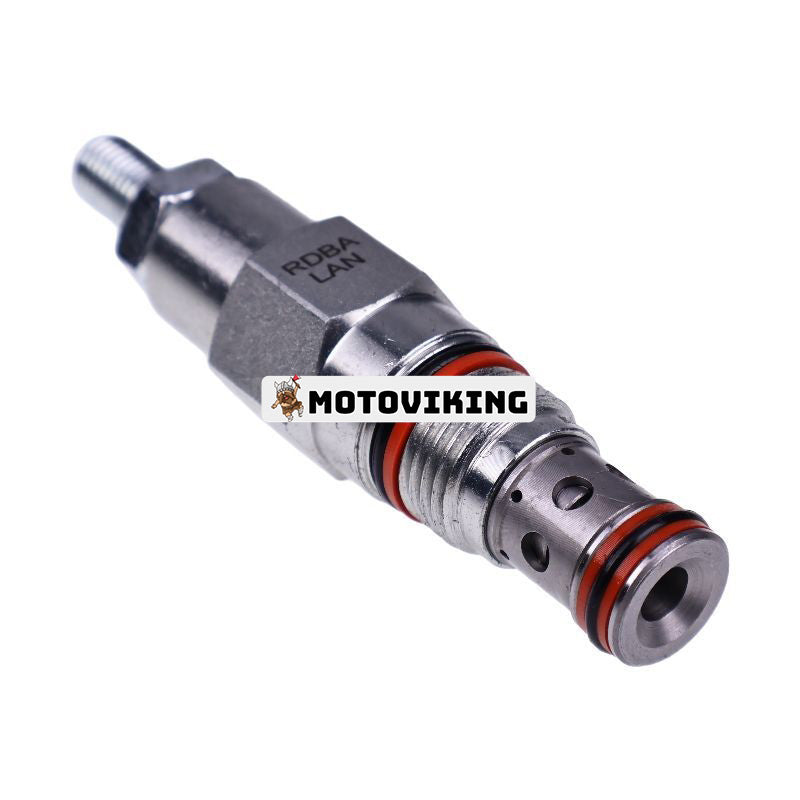

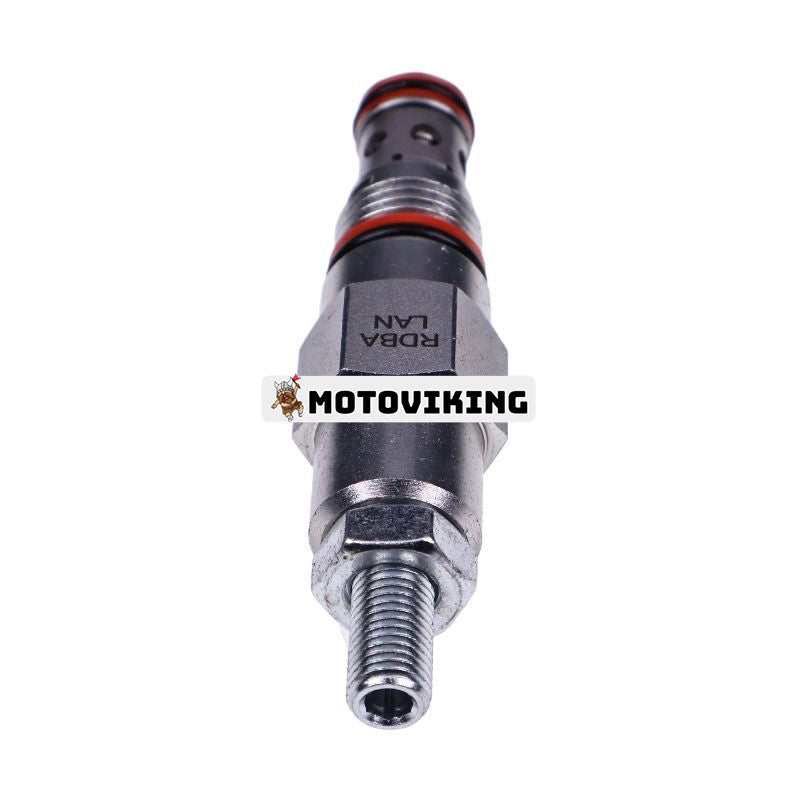

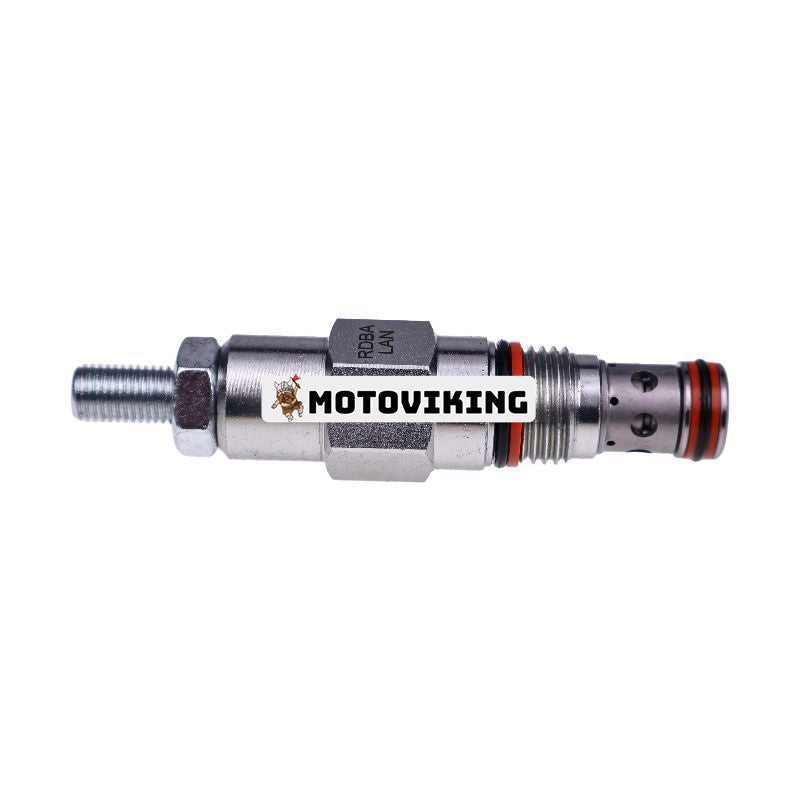

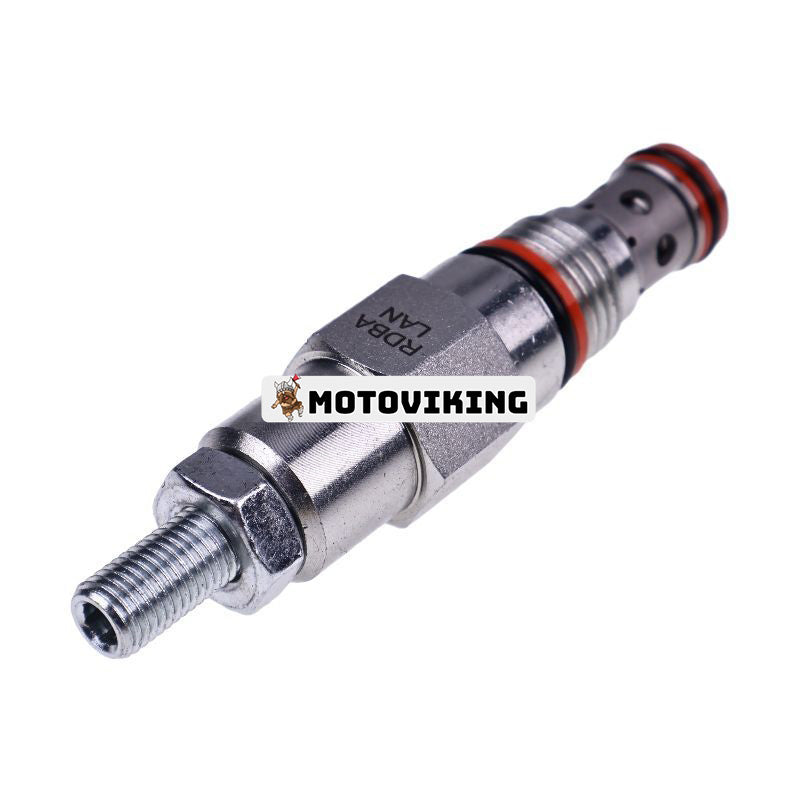

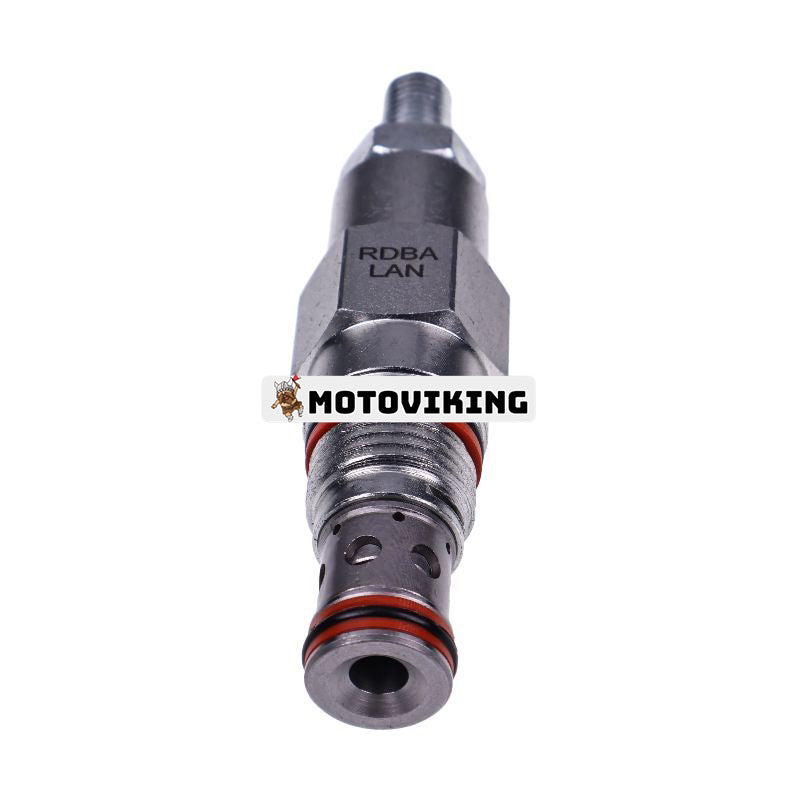

Aftermarket Sun Hydraulics RDBA-LAN safety valve

Replace part number:

RDBA-LAN, RDBALAN

Specification:

Cavity: T-162A

Capacity: 12 gpm

Maximum working pressure: 5000 psi

Factory Pressure Settings Set at: 4 gpm

Maximum valve leakage during reset: 10 drops/min.

Response Time - Typical: 2 ms

Reset: >85% of crack setting

Adjustment - Number of CW turns from min. to max. setting: 6

Valve Hex Size: 3/4 inch.

Valve Installation Torque: 20 - 25 lbf ft

Adjustment screw Internal hex size: 5/32 inch.

Lock nut hex size: 1/2 inch.

Locknut torque: 80 - 90 lbf in.

Part/Replacement Number: AFTERMARKET, HYDRAULICS, RDBA-LAN, PART NUMBER, RDBALAN, SPECIFICATION, CAVITY, CAPACITY, MAXIMUM, WORKING PRESSURE, DROPS, RESPONSE TIME, TYPICAL, ADJUSTMENT, CW TURNS, HEX SIZE, VALVE INSTALLATION TORQUE, ADJUSTING SCREW, HEX SIZE, TORQUE. Specifications: 3/4 INCH, 1/2 INCH.

Please contact us if you need help verifying compatibility or finding similar parts.
