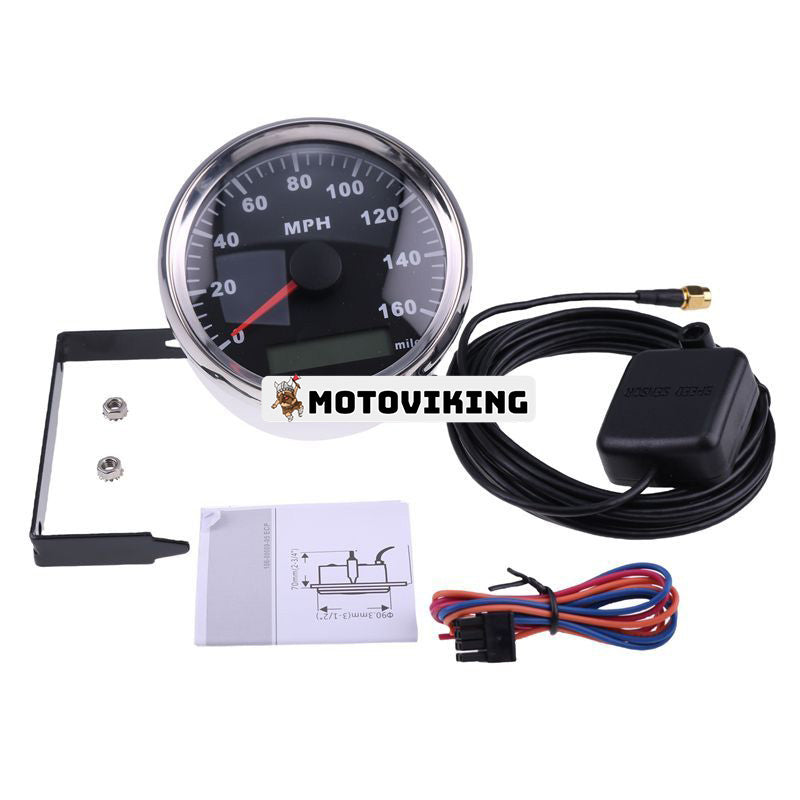

85mm 12V/24V Guaranteed MPH GPS Speedometer Odometer 160 MPH for Car Motorcycle Tractor with Backlight

85mm 12V/24V Guaranteed MPH GPS Speedometer Odometer 160 MPH for Car Motorcycle Tractor with Backlight
Specification:
Cut an 85 mm (3 3/8") hole in the panel and allow a 70 mm (2 3/4") clearance behind the panel to accommodate the meter. Insert the meter into the hole. Use the M4 nut and C-bracket to seal the meter.
For the GPS antenna, you should mount it securely in a flat position, black side up, preferably outside (or inside the front windshield) so that it has a clear view of the sky to pick up satellite signals. Connect the antenna cable to the socket on the back of the meter. And do not cut the cable.
It takes about 30 seconds to get signal the first time, but less than 3 seconds after that. It is faster under clear view of the sky. Sometimes if signal is missing, pls. Reconnect all cables and restart it.
It shows current speed and odometer (cannot be reset), no tripmeter. If you also need tripmeter, pls. search for ASIN B07KPHDFDB, B07KPHC1ML or B07KPG7XT3
9-32VDC(12VDC/24VDC) Working voltage, red backlight
Product features:
-Suitable for all vehicles, boats and off-road vehicles
- The signal comes directly from the satellite signal receiver (GPS speed sensor)
-The meter has the advantages of high precision, fast location confirmation and short start-up time.
-IP67 waterproof and dustproof grade
-Stepper motors used for the entire range of pedometers, fantastic feature with its lower power consumption, longer lifespan, higher precision, etc.
-With curved glass (with anti-img function)
-With ultra-wide working voltage design (long-term operating voltage: 9-32V, max up to: 36V (≤ 1 min)).
Technical data:
Mounting dimensions: 85 mm (3-3/8")
Indication range: 0-160 MPH
Working voltage: 12V/24V
Backlight: Red
Operating mode: LCD display, stepper motor
Protection level: IP67
Other: waterproof and anti-fog
