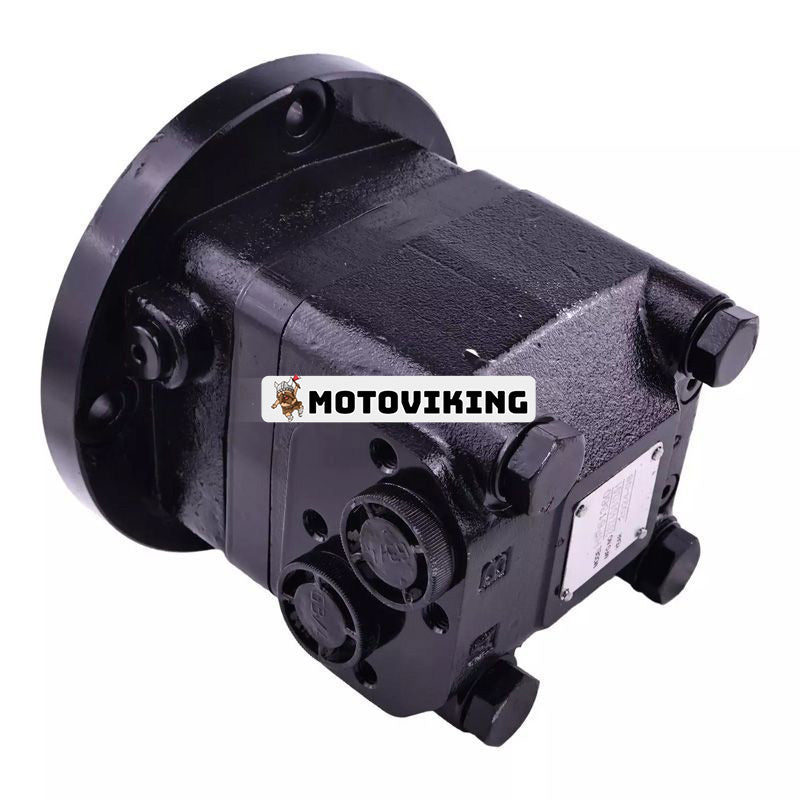

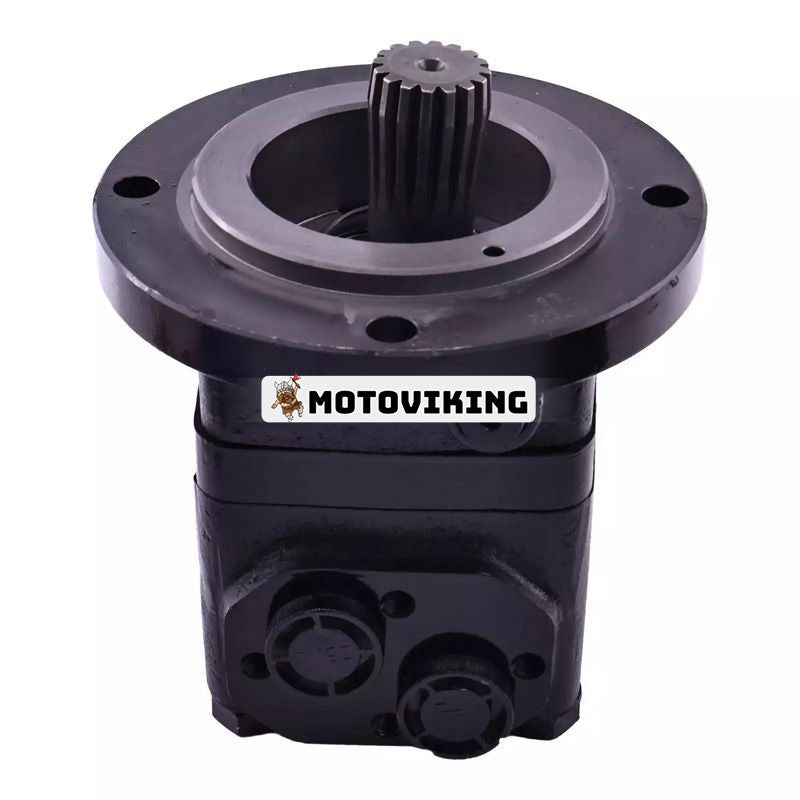

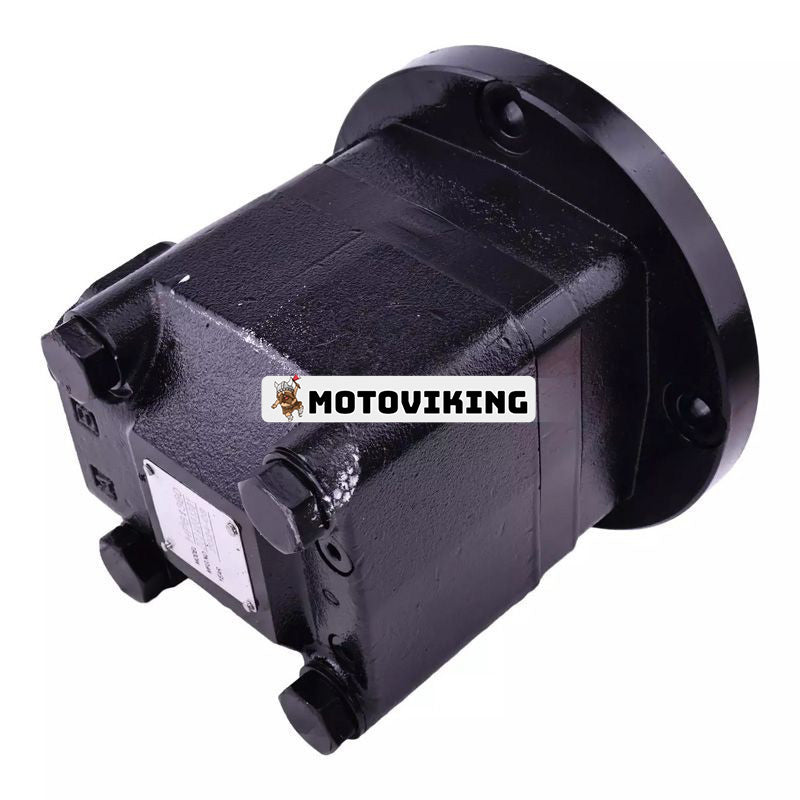

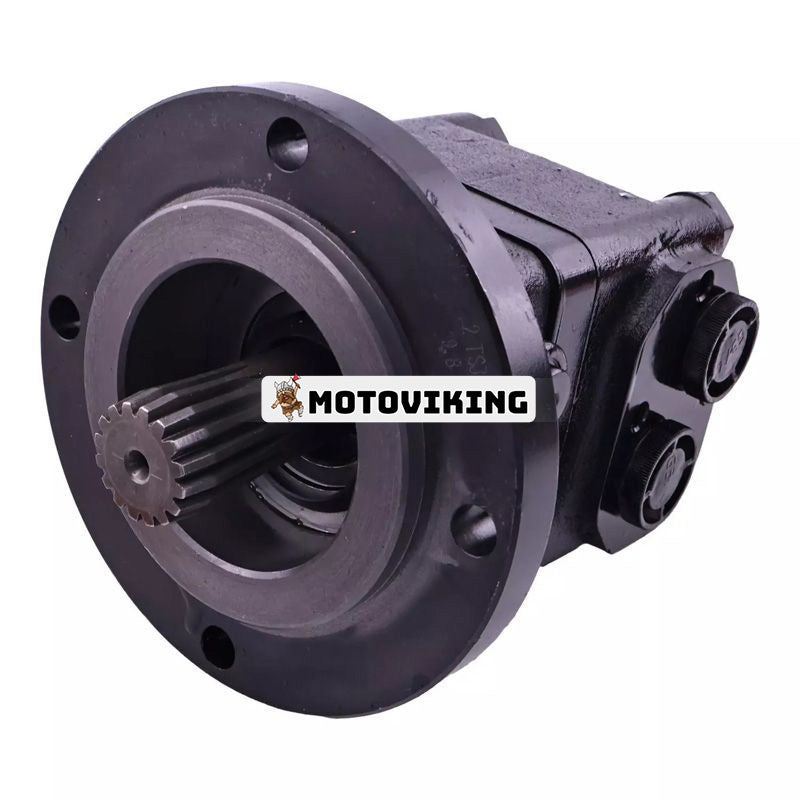

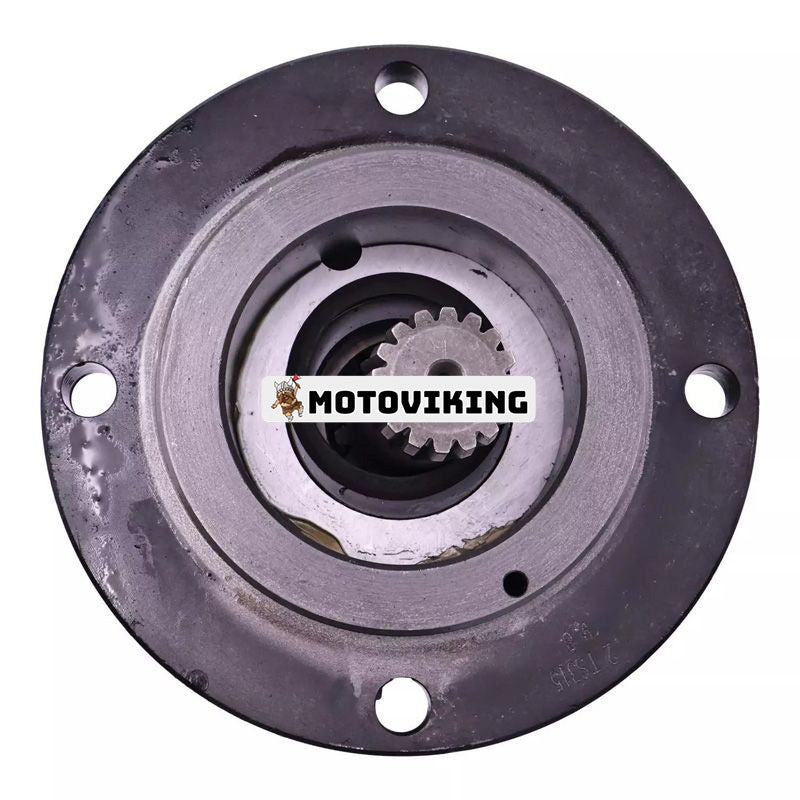

3/4 BSP Aftermarket Danfoss OMTS315-151B3039 Hydraulic Orbital Motor for Backhoe Loader Tractor Dozer
Replacement part number:
OMTS315-151B3039, OMTS315151B3039, 151B3039
Specification:
3/4 BSP port
Engine size: 315
Geometric displacement (cm^3[in]):326.3[19.91]
Max speed cont.: 380 rpm
Max speed internal: 460 rpm
Max torque continuous (Nm[lbf in]): 950[8410]
Max torque int(Nm[lbf in]): 1140[10090]
Max output power (kW[hp]): 33.5[44.9]
Max output power int(kW[hp]): 40.0[53.6]
Max pressure drop cont (bar[psi]): 200[2900]
Max pressure drop int(bar[psi]): 240[3480]
Max pressure drop peak (bar[psi]): 280[4060]
Max oil flow rate (l/min[gpm]): 125[33.0]
Max oil flow int(l/min[gpm]): 150[39.6]
Max starting pressure with unloaded axle (bar[psi]): 10[145]
Min starting torque at max pressure drop cont.(Nm[lbf in]): 740[655]
Min starting torque at max pressure drop int(Nm[lbf in]): 890[7880]
Max inlet pressure cont.(bar[psi]): 210[3050]
Max inlet pressure int(bar[psi]): 250[3630]
Max inlet pressure peak (bar[psi]): 300[4350]
Max return pressure with drain line cont(bar[psi]): 140[2030]
Max return pressure with drain line int(bar[psi]): 175[2540]
Max return pressure with drain line top (bar[psi]): 210[3050]
Application:
Suitable for excavators, loaders, tractors, dozers and so on machines with Danfoss Hydraulic Orbital Motor OMTS315-151B3039.
