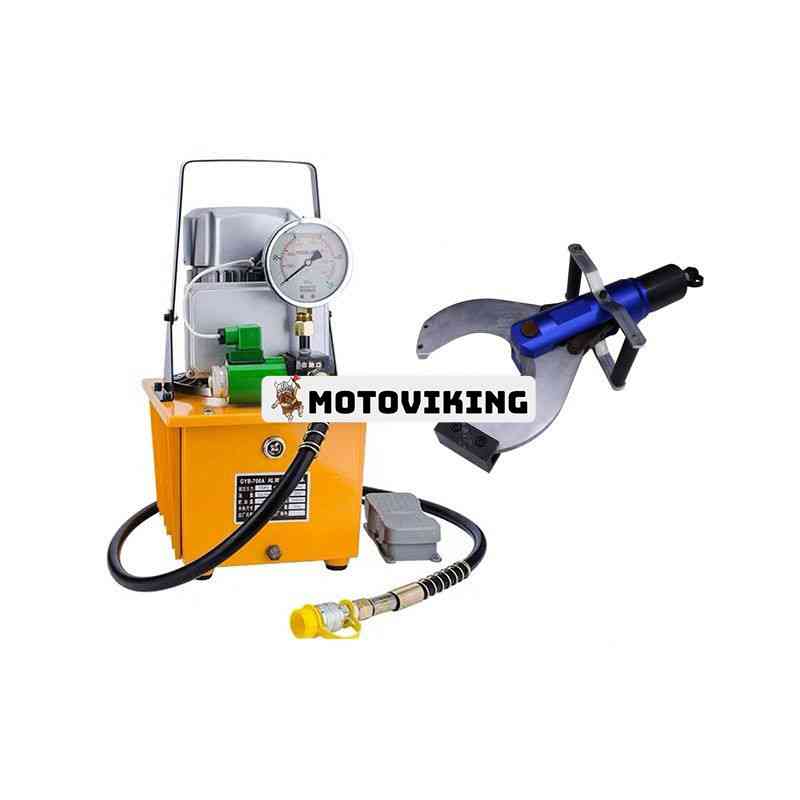

220V High Pressure Electric Hydraulic Oil Pump GYB-700A & Cable Cutter CPC-120C

Note: Without hydraulic oil

Specification:

Model: GYB-700AII

Voltage: 220V

Power: 750W

Maximum output pressure: high pressure 70MPa, low pressure 7MPa

High pressure flow: 0.9L/min

Low pressure flow: 5L/min

Tank capacity: 7L (customizable)

Model: CPC-120C

Max pressure: 70MPa

Electric pump voltage: 220V

Power: 750W

Nominal working pressure: 70MPA

Oil storage capacity: 7L

High pressure / low pressure flow: 0.6L/min 4L/min

Cutting range (copper cable): 120MM

Cutting range (armored cable): 105MM

Rated power: 120KN

Rated pressure: 66MPa

Oil requirement: 95ml

Cut 120 mm armoured Cu/Alu cable

Content:

1 X High pressure electric hydraulic oil pump: GYB-700A

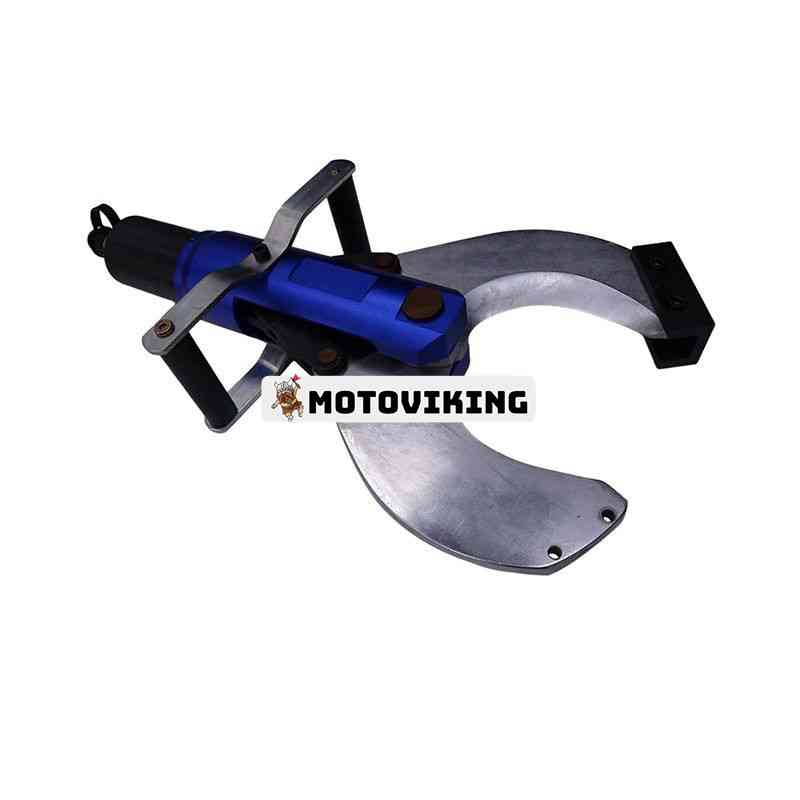

1 X Hydraulic Cable Cutter: CPC-120C

Part/Replacement Number: ELECTRIC, HYDRAULIC, OIL PUMP, GYB-700A, CPC-120C, HYDRAULIC OIL, SPECIFICATION, GYB-700AII, MAXIMUM, TANK CAPACITY, ADJUSTABLE, MAXIMUM PRESSURE, NOMINAL, WORKING PRESSURE, OIL STORAGE CAPACITY, COPPER CABLE, ARMORED, NOMINAL, OIL REQUIREMENT, ALU CABLE, HYDRAULIC OIL PUMP. Specifications: 120MM, 105MM, 120 MM.

Please contact us if you need help verifying compatibility or finding similar parts.
