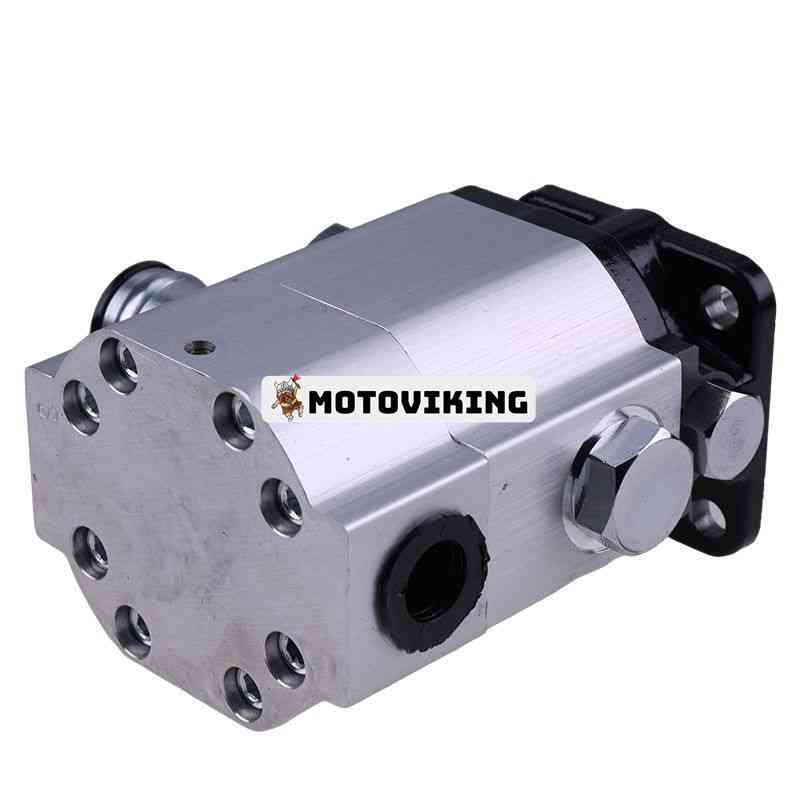

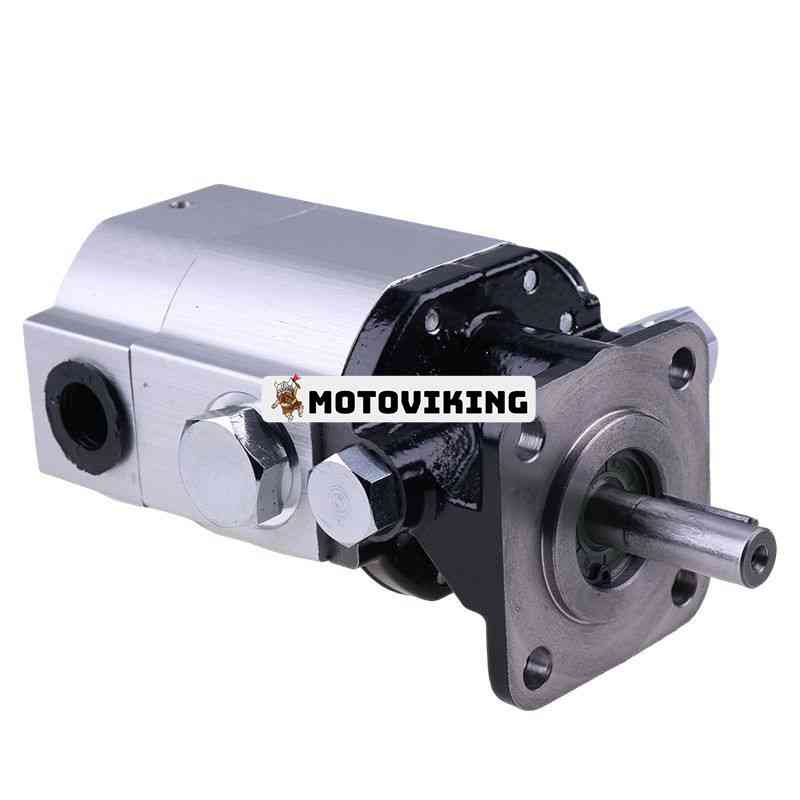

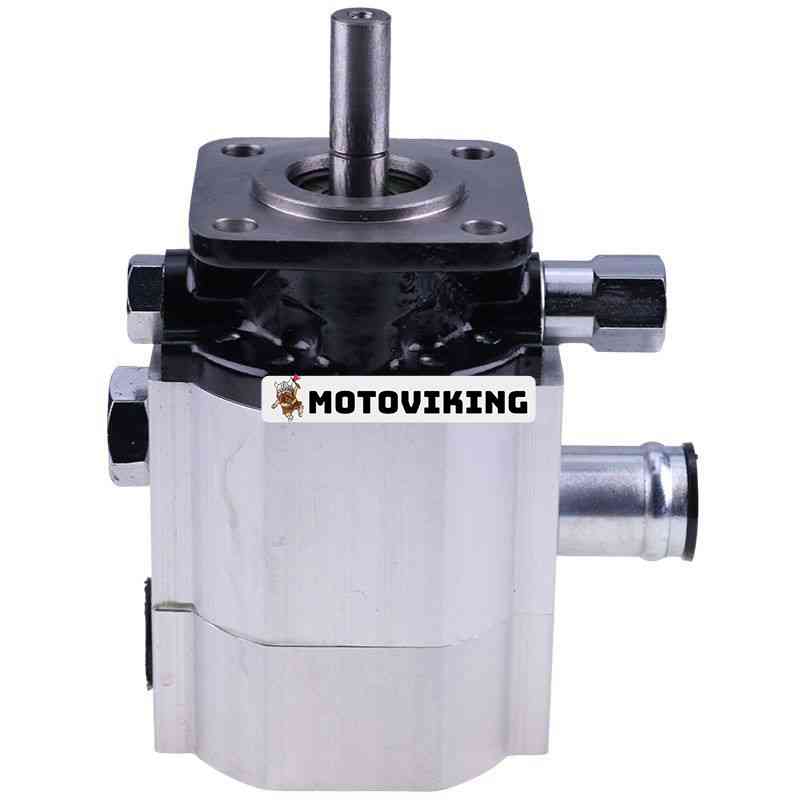

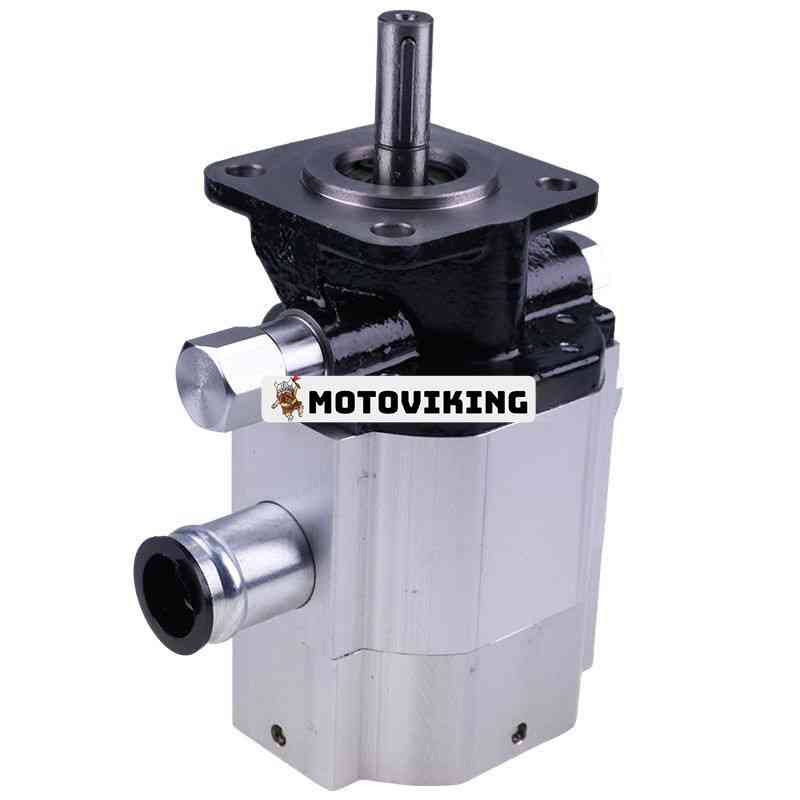

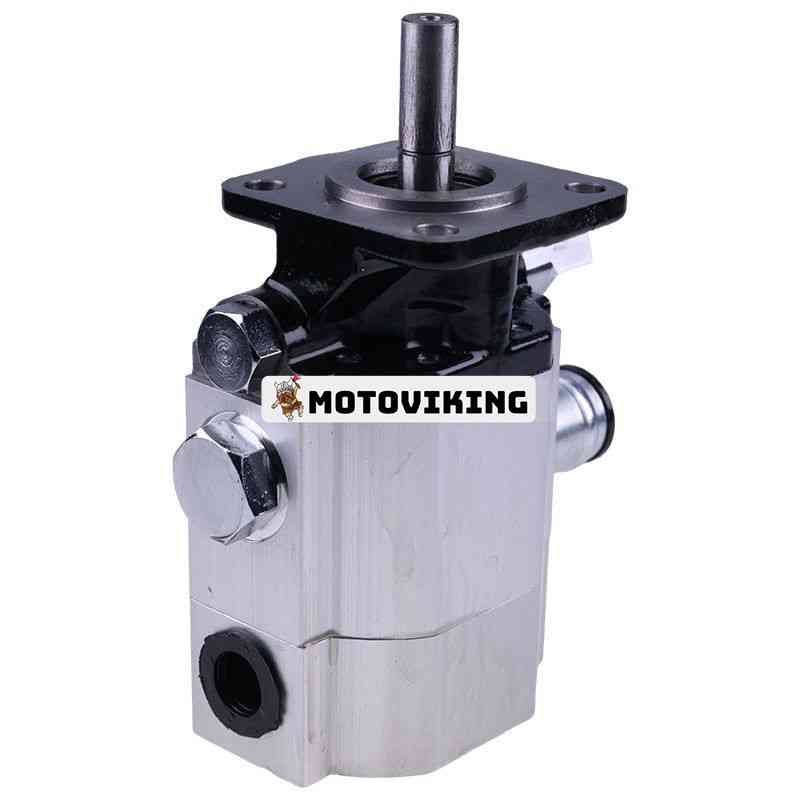

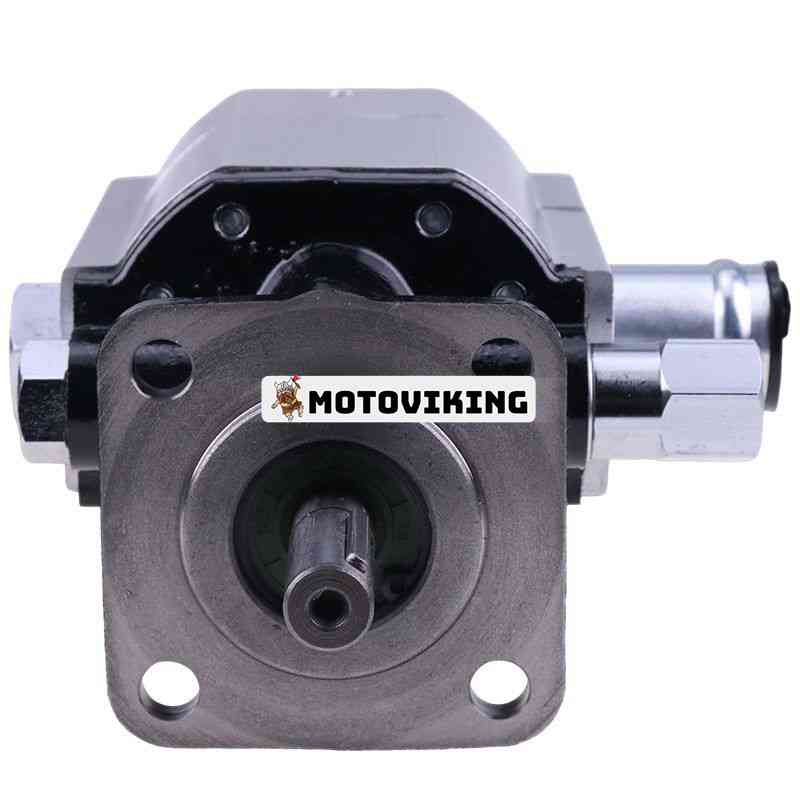

14GPM hydraulic gear pump CBNA-13/1.8 for log splitters

Replace part number: CBNA-13/1.8, CBNA1318

Specification:

0.110 cu. in. / rev. HI pressure stage

0.903 cu. in. / rev. LO pressure stage (combined gear set)

Pump type: Gear

Rotation: CW

Orientation: Horizontal or vertical

Pressure: 3000 PSI max.

Speed: 3600 RPM max.

Flow MFG Nominal Rating: 14 GPM

Flow:

1.7 GPM HI pressure stage

14.1 GPM LO pressure stage

Relief pressure: 400-900 PSI

Mounting: 4 bolts 4F17

Shank: 1/2" dia. x 1-1/2" long wrench

Rqd. Filtration: 25 microns

Inlet Port: 1" Hosebarb adjustable orientation

Outlet port: 1/2" NPT

Size: 5-1/4" x 7" x 3-3/8"

Application:

Suitable for Log Splitter

Spare part for wood splitter.

Part/Replacement Number: HYDRAULIC, GEAR PUMP, CBNA-13, WOOD SPLITTER, PART NUMBER, CBNA1318, SPECIFICATION, COMBINED, PUMP TYPE, GEAR, ROTATION, ORIENTATION, HORIZONTAL, VERTICAL, SPEED, NOMINAL, CLASSIFICATION, RELIEF PRESSURE, 400-900, MOUNTING, FILTRATION, INLET PORT, HOSE BARB, ADJUSTABLE, OUTLET PORT, SIZE, SPLITTER.

Please contact us if you need help verifying compatibility or finding similar parts.
