12V 900W horizontal windlass for boats up to 45 feet/14 m
Specification:
Motor power: 900 watts
Power supply: 12V DC
Maximum limit pulling force: 1650 Lb / 750 Kg
Pulling force: 550 Lb / 250 Kg
Maximum working load limit: 550 Lb / 250 kg
Working Load: 176 Lb / 80 kg
Line speed: 92 feet per minute
Current draw: 65 amps
Circuit breaker: 80 amps
Chain and rope: Chain: 5/16 inch (8 mm) HT G4 rope: 9/16 inch (14 mm) - 3 strand
Application:
Suitable for boats up to 45 feet/14 m

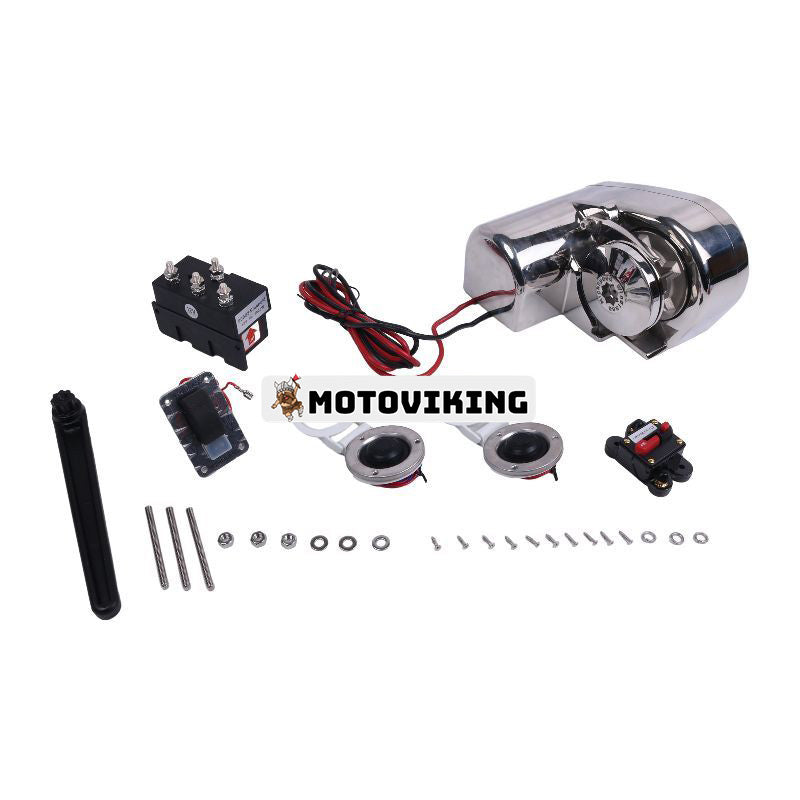

Content:

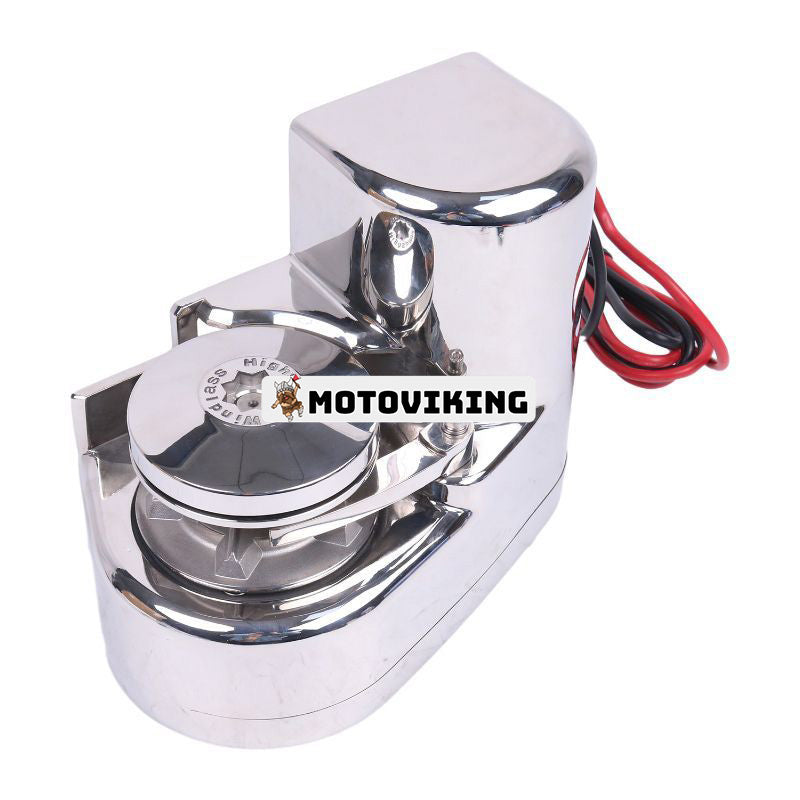

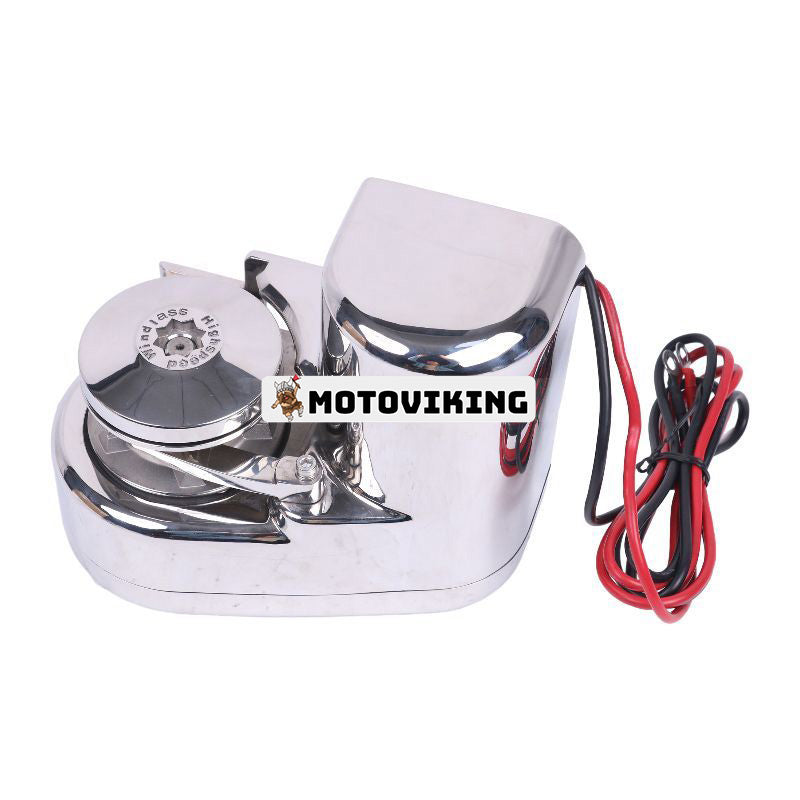

1* horizontal windlass

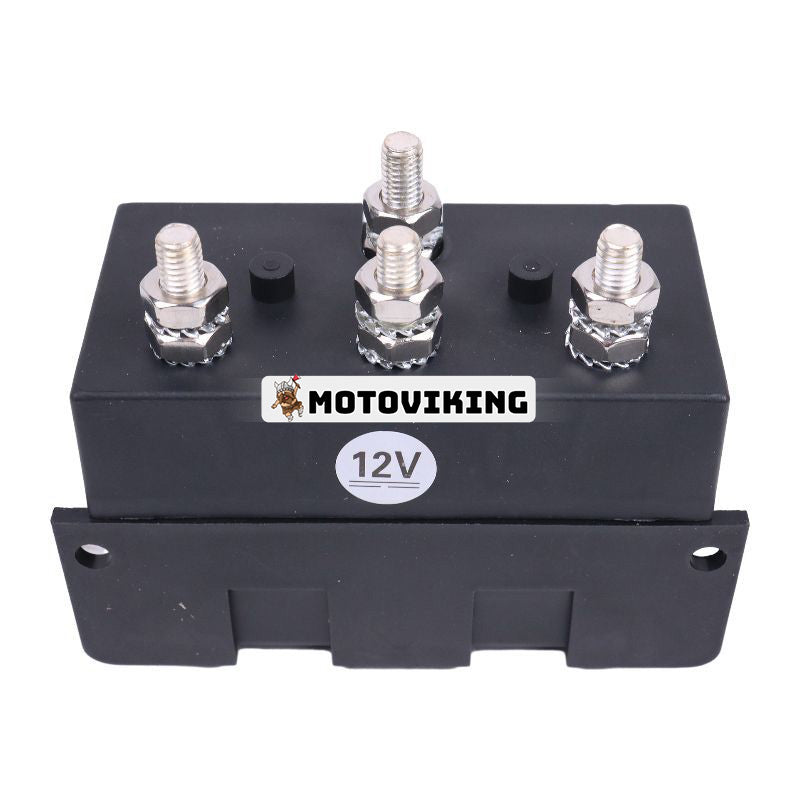

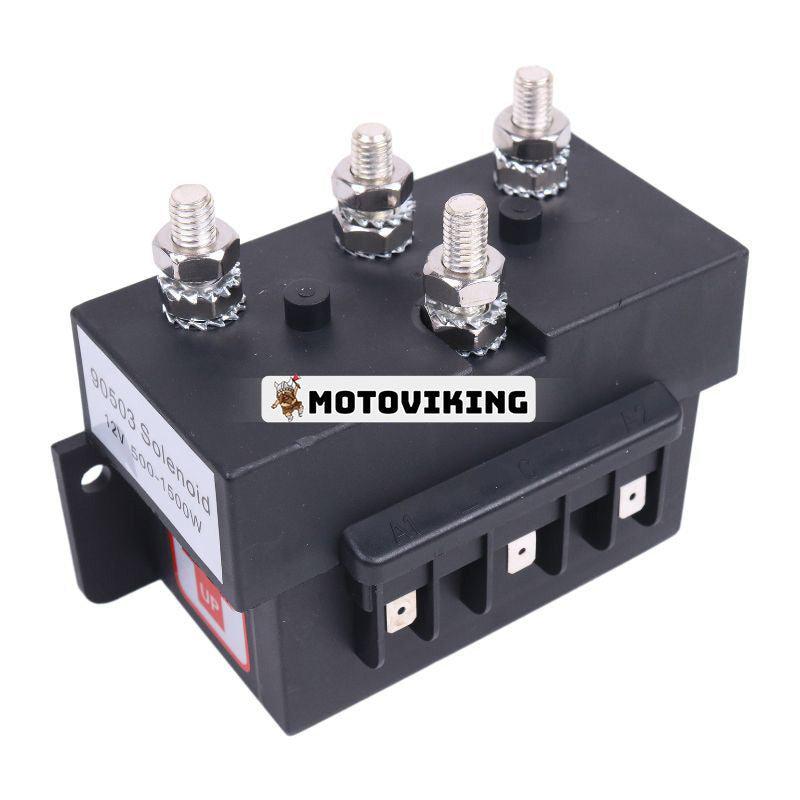

1* solenoid

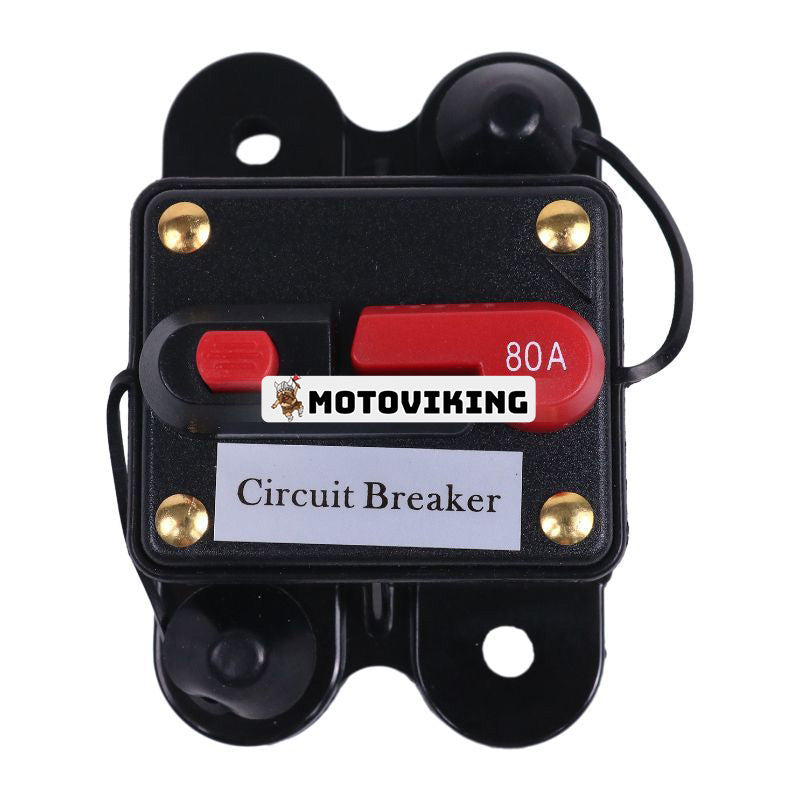

1* circuit breaker

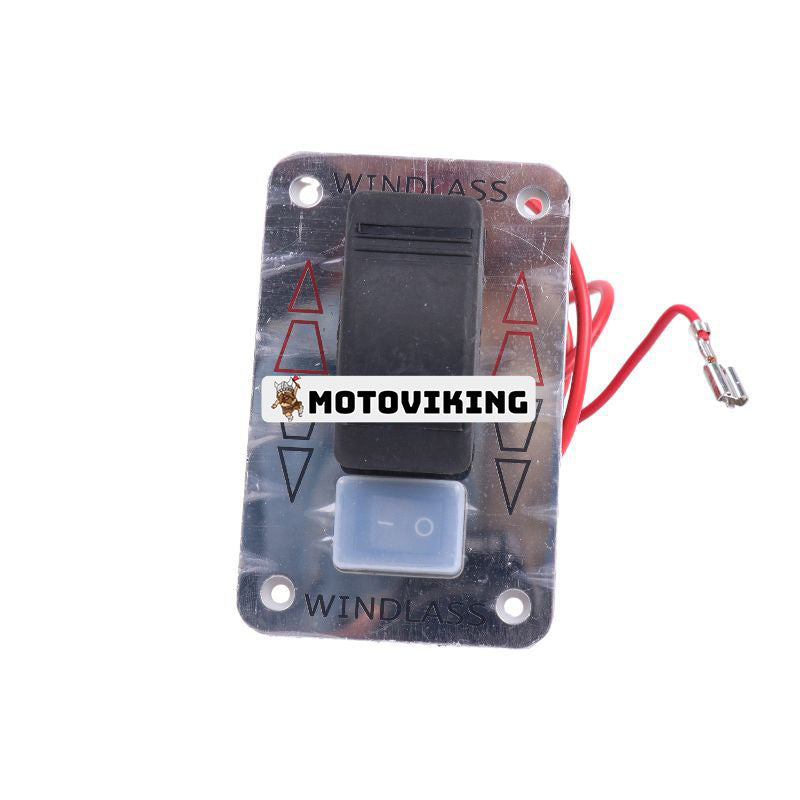

1* anodized alloy switch panel
1* windlass radio remote control
1* toggle switch up/down
