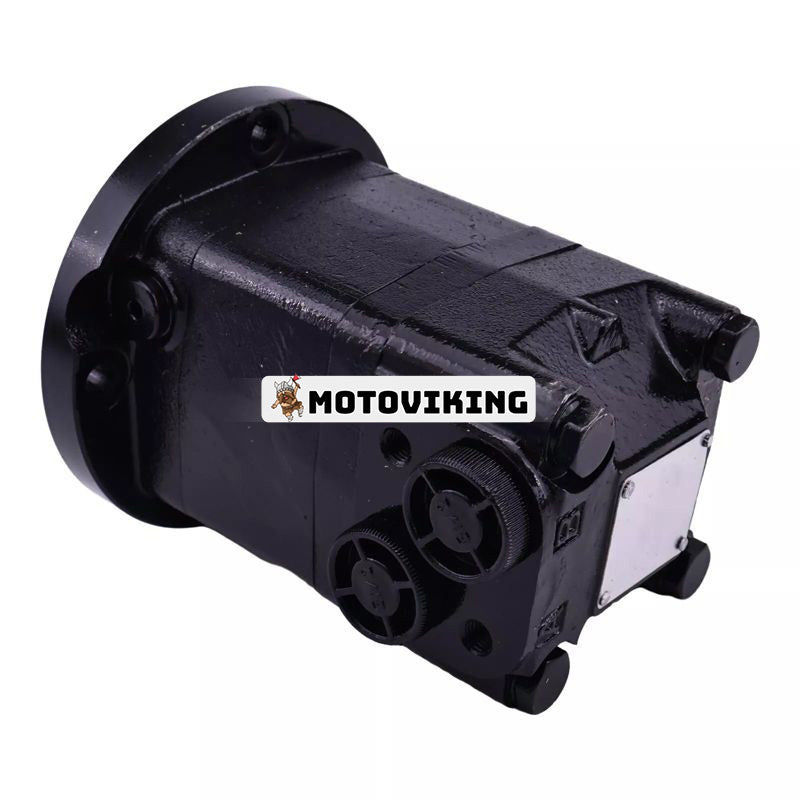

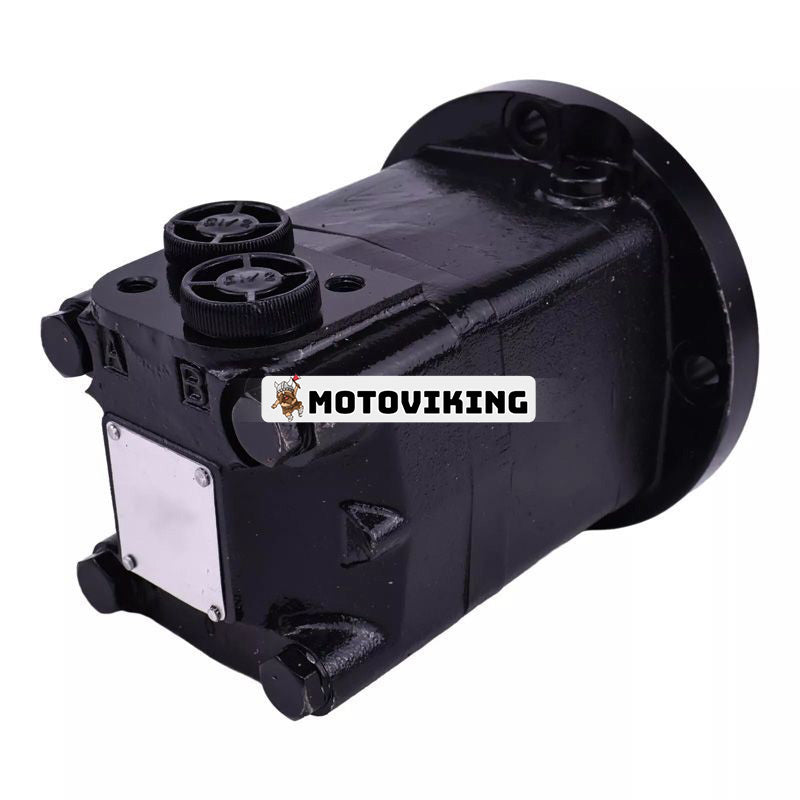

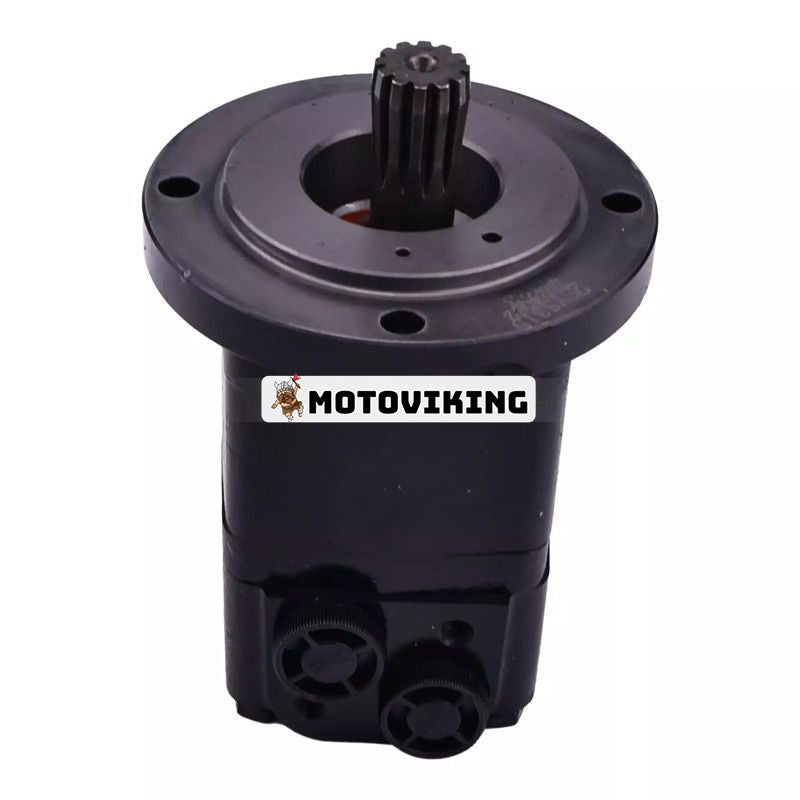

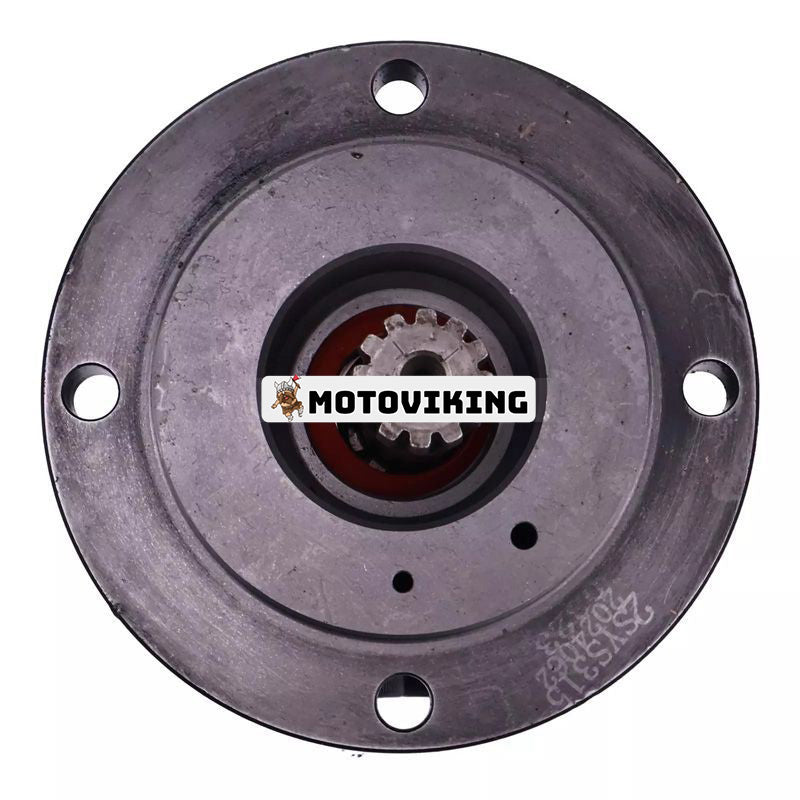

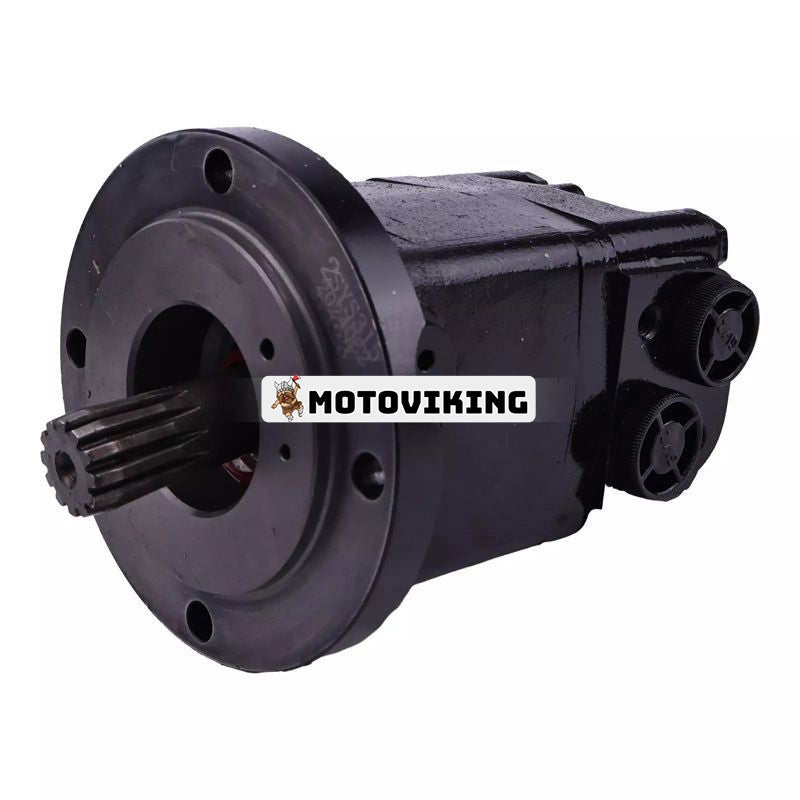

1/2 BSP Aftermarket Danfoss OMSS315-151F0541 Hydraulic Orbital Motor for Backhoe Loader Tractor Dozer
Replacement part number:
OMSS315-151F0541, OMSS315151F0541, 151F0541
Specification:
Engine size: 315
Geometric displacement (cm^3[in]): 314.9[19.22]
Max speed cont.: 240 rpm
Max speed internal: 285 rpm
Max torque continuous (Nm[lbf in]): 825[7300]
Max torque int(Nm[lbf in]): 1000[8850]
Max output power (kW[hp]): 15.0[20.1]
Max output power int(kW[hp]): 17.0[22.8]
Max pressure drop cont (bar[psi]): 200[2900]
Max pressure drop int(bar[psi]): 240[3480]
Max pressure drop peak (bar[psi]):260[3770]
Max oil flow rate (l/min[gpm]): 75[19.8]
Max oil flow int(l/min[gpm]): 90[23.8]
Max starting pressure with unloaded axle (bar[psi]): 8[115]
Min starting torque at max pressure drop cont.(Nm[lbf in]): 710[6280]
Min starting torque at max pressure drop int(Nm[lbf in]): 850[7520]
Max inlet pressure cont.(bar[psi]): 230[3340]
Max inlet pressure int(bar[psi]): 295[4280]
Max inlet pressure peak (bar[psi]): 300[4350]
Max return pressure with drain line cont(bar[psi]): 140[2030]
Max return pressure with drain line int(bar[psi]): 175[2540]
Max return pressure with drain line top (bar[psi]): 210[3050]
No output shaft with 1/2 BSP port
Application:
Suitable for excavators, loaders, tractors, dozers and so on machines with Danfoss Hydraulic Orbital Motor OMSS315-151F0541.
