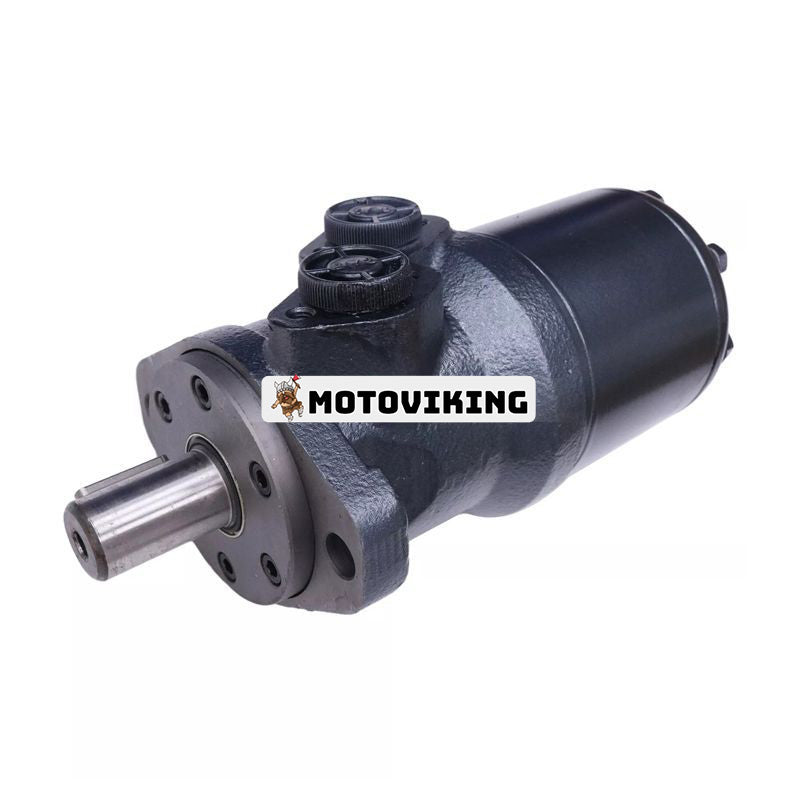

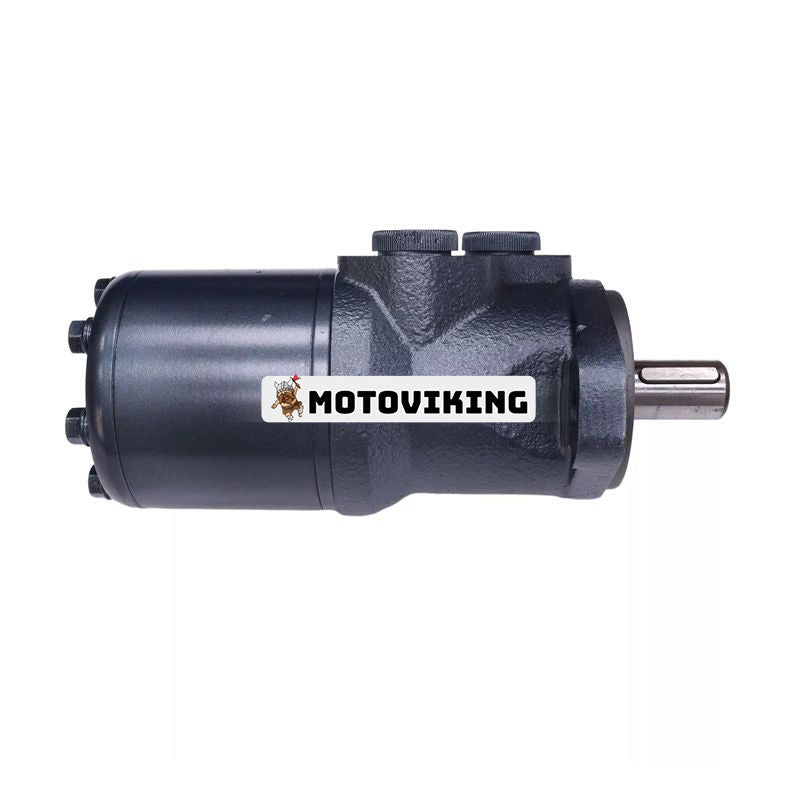

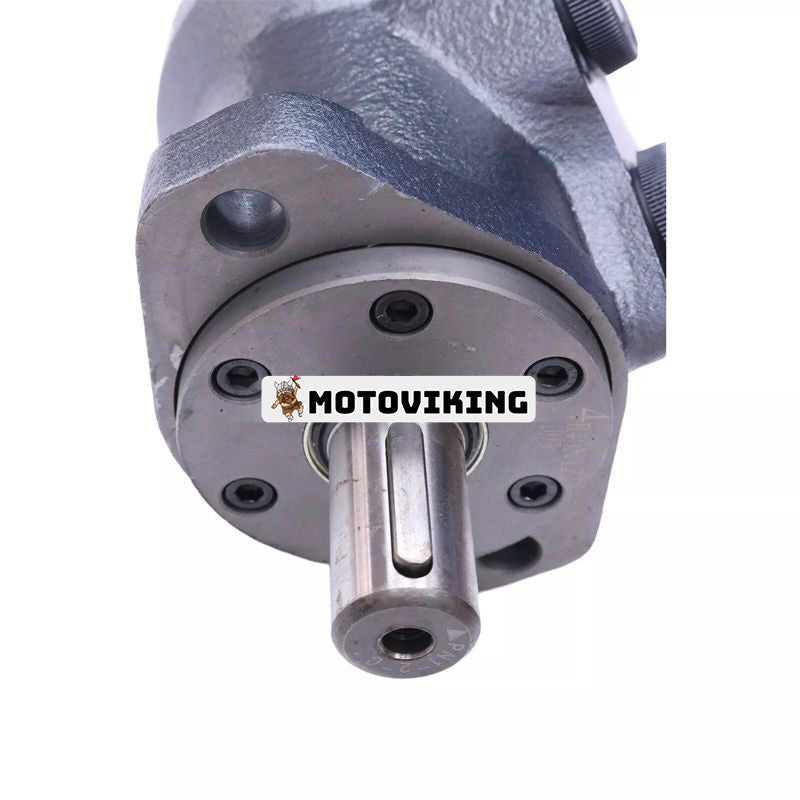

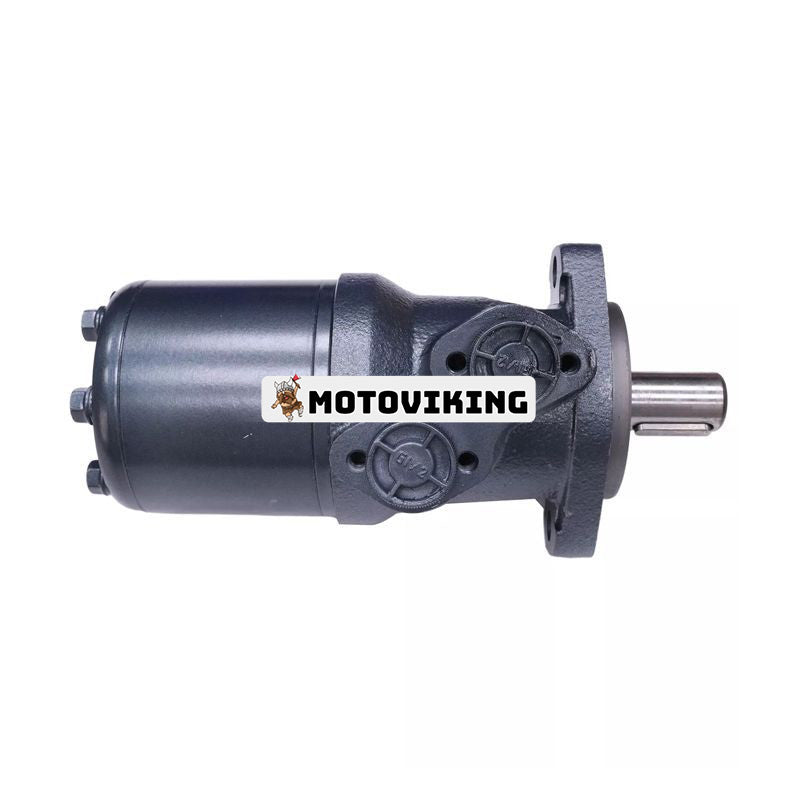

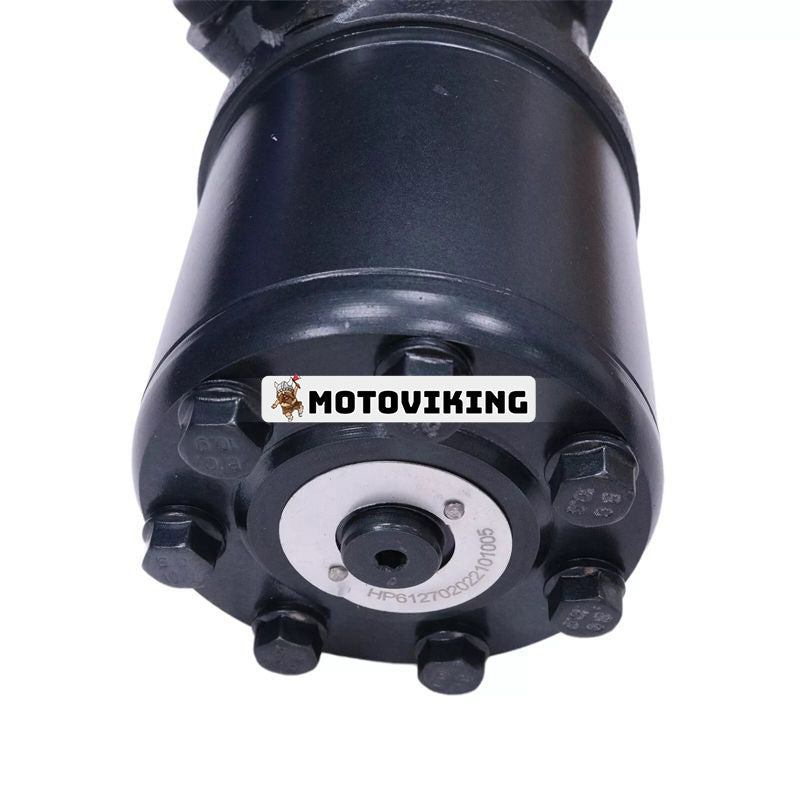

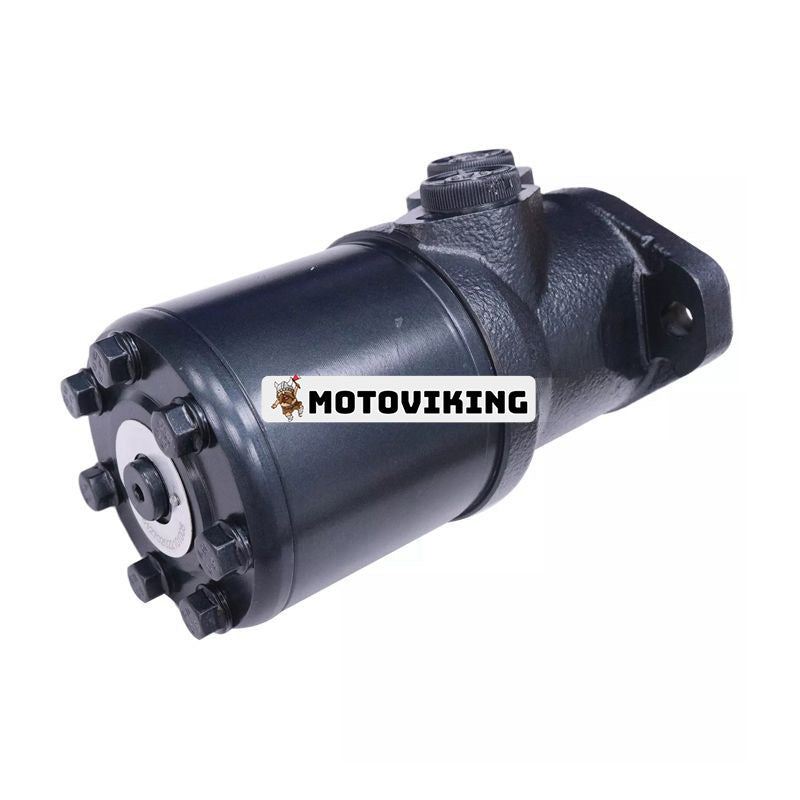

1" 1/2 BSP Aftermarket Danfoss 11185556 OMR x 375 -11185556 Hydraulic Orbital Motor for Backhoe Loader Tractor Dozer
Replacement part number:
OMR x 375 -11185556, OMRx375-11185556, OMR x 37511185556, OMRx37511185556, OMR37511185556, 11185556
Specification:
Geometric displacement: 363.5 cm³/[22.18in]
Max speed continuous: 165rpm
Max speed internal: 205rpm
Max torque: 340Nm/[3010lbf in]
Max torque int: 450Nm/[3980lbf in]
Max output power: 4.9 kW/[6.6 hp]
Max output power int: 7.0 kW/[9.4 hp]
Max pressure drop continuous: 70bar/[1015psi]
Max pressure drop internal: 100bar/[1450psi]
Max oil flow cont.: 60L/min
Max oil flow int: 75L/min
Max starting pressure with unloaded shaft: 5bar/[75psi]
Minimum starting torque at maximum pressure drop cont: 290Nm/[2565lbf in]
Minimum starting torque at maximum pressure drop: 415Nm/[3675lbf in]
Max inlet pressure cont.: 175bar/[2540psi]
Max inlet pressure int: 200bar/[2900psi]
Max return pressure with drain line cont: 175bar/[2540psi]
Max return pressure with drain line int: 200bar/[2900psi]
Application:
Suitable for excavators, loaders, tractors, dozers and so on machines with Danfoss Hydraulic Orbital Motor OMR x 375 -11185556.
