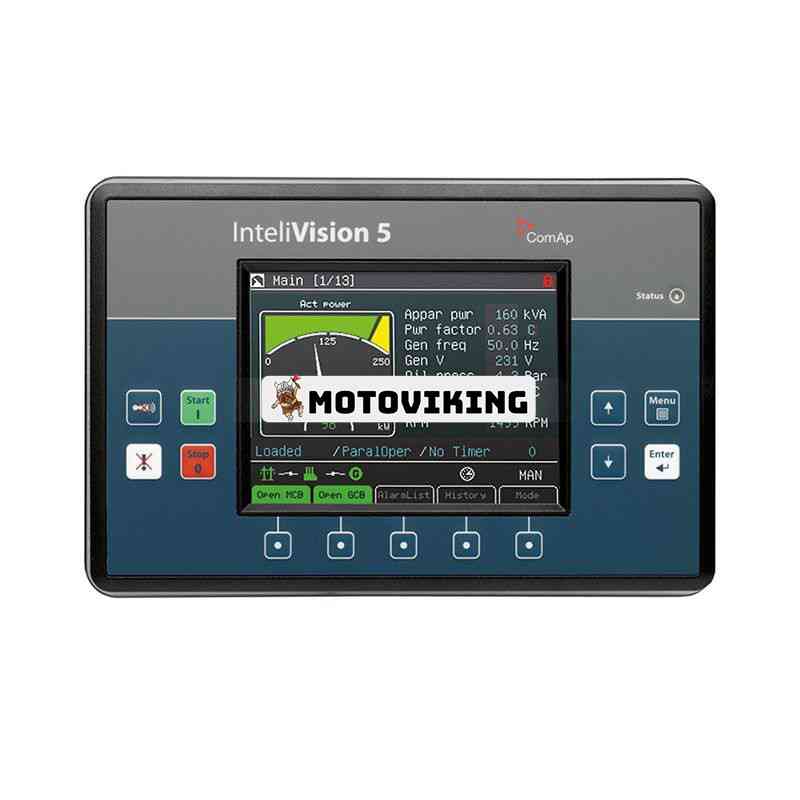

Intelivision 5 controller for ComAp
Condition: New original
Note: This 100% genuine part does not offer warranty, return or exchange service. Please confirm according to the correct part number instead of just a model!
Replace part number: Intelivision 5
Feature:
5.7” TFT color screen with resolution 320 × 240 pixels
Local and remote display for monitoring a single controller
Plug and Play operation (automatic configuration based on control application)
Supported controllers:
InteliDrive DCU
InteliDrive DCU Marine
InteliDrive Mobile
InteliDrive Mobile Logger
InteliGen NTC BaseBox
InteliSys NTC BaseBox
InteliMains NTC BaseBox
Direct connection to the controller (no converter needed)
Easier, faster and more convenient control for the user
More information in less time
5.7” TFT color screen
Same cutout as standard ComAp controllers, e.g. InteliDrive DCU
Same language support as the main controller including graphical languages
Active buttons – quick access to important data
Galvanically isolated CAN interface
Binary output for horn/buzzer control
Sealed to IP65
8-pin wiring harness connector on the back
Drag & drop customer screen configuration
Analog input to control screen backlight intensity
Application:
Suitable for ComAp
